CATALOGO/INVERTER IBRIDI/COD. 12290

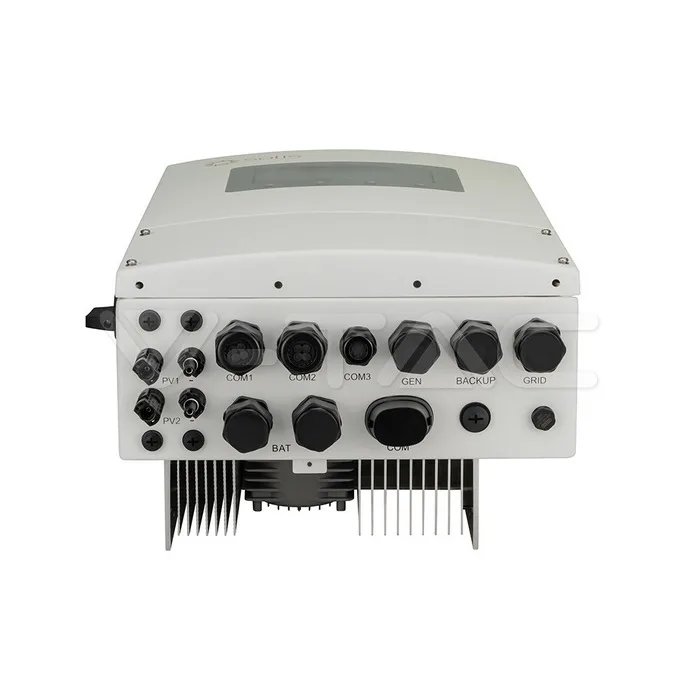

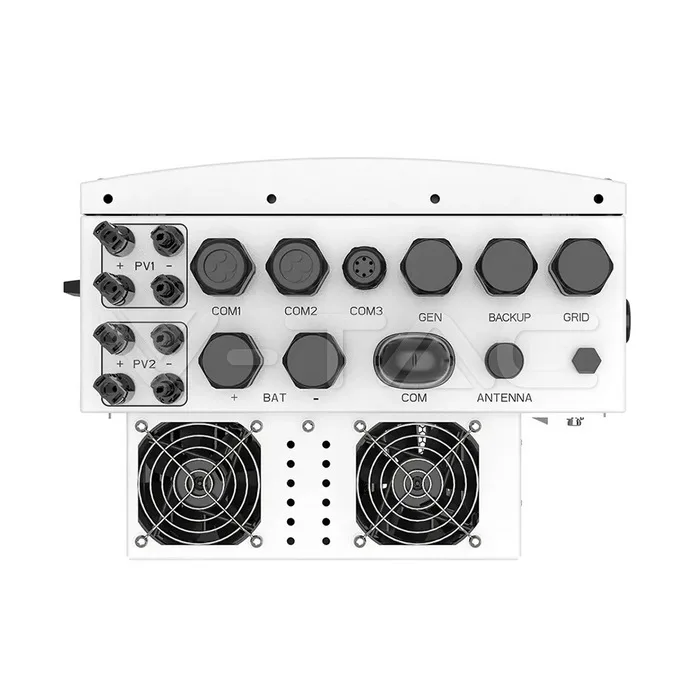

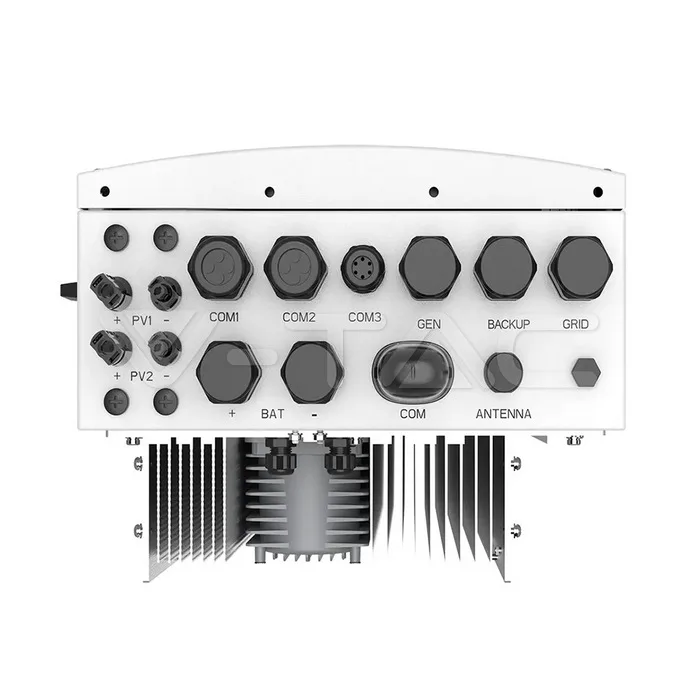

5kW Hybrid Solar Inverter Single Phase — view 1
5kW Hybrid Solar Inverter Single Phase — view 2
5kW Hybrid Solar Inverter Single Phase — view 3
5kW Hybrid Solar Inverter Single Phase — view 4
5kW Hybrid Solar Inverter Single Phase — view 5
5kW Hybrid Solar Inverter Single Phase — view 6
5kW Hybrid Solar Inverter Single Phase — view 7
5kW Hybrid Solar Inverter Single Phase — view 8
V-TAC · S6-EH1P5K-L-PLUS
● SU RICHIESTA · VERIFICARE DISPONIBILITÀ

5kW Hybrid Solar Inverter Single Phase

5kW Hybrid Solar Inverter Single Phase with IP66 protection and an operating range of -40 to +60℃. 10 years; certification on file: EMC License, LVD License and RED.

da€793IVA ESCL. · PREZZO DI LISTINO
LivelloIl tuo prezzoCondizioni
Trade€793Card · PayPal · Klarna · Apple Pay
Pro€753Card · PayPal · Klarna · Apple Pay
Master€714Card · PayPal · Klarna · Apple Pay
Richiedi prezzo e disponibilità
GARANZIA DEL PRODUTTORE
10 years
Valgono le condizioni proprie del produttore. Il reclamo lo gestiamo noi — vedi le condizioni di vendita.
CERTIFICAZIONE · 3
EMC LicenseLVD LicenseRED

Specifiche tecniche

ELECTRICAL DATA13 items
Max. usable PV input power8kW
Max. PV Input Current16A / 16A
Max. PV Short circuit current20A / 20A
Max. charge / discharge current112V
Max. AC output current (Grid Side)22.8A / 21.8A
Max. Input current (Grid Side)32A
Max. PV Input Voltage500V
MPPT Voltage Range90-435V
Start-up voltage90V
Rated grid voltage220V / 230V
Rated grid frequency50Hz / 60Hz
Power Factor> 0.99 (0.8 leading - 0.8 lagging)
PhaseSingle Phase
MECHANICAL & BUILD1 item
AC Grid (output)Rated Power: 5kW
PHYSICAL DATA3 items
Working conditions-40 to +60℃
IP RatingIP66
Size335 x 560 x 253 mm
CERTIFICATIONS & WARRANTY1 item
Warranty10 years
PACKAGING1 item
Items per box1
PRODUCT DATA4 items
Order code12290
Product codeS6-EH1P5K-L-PLUS
Release Date04.02.25
BrandSOLIS
