KATALOG/HYBRID-WECHSELRICHTER/ART.-NR. 12290
5kW Hybrid Solar Inverter Single Phase — view 1

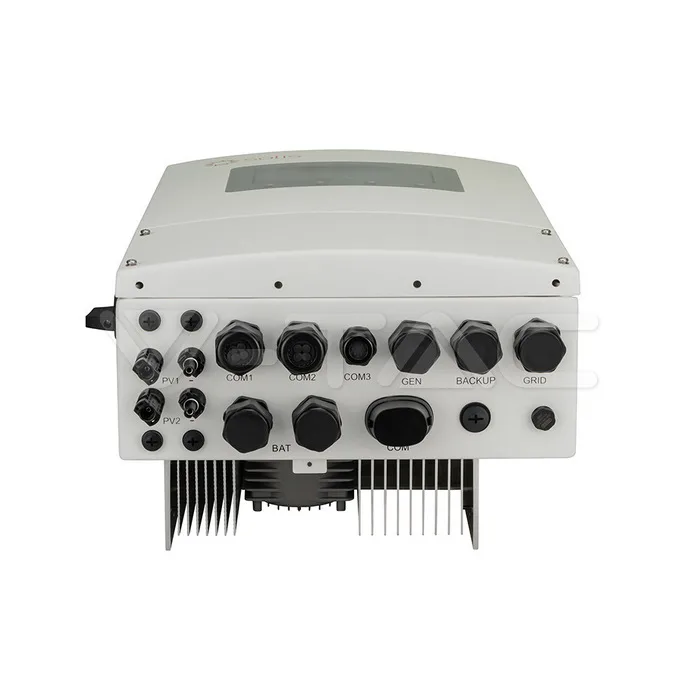

5kW Hybrid Solar Inverter Single Phase — view 2
5kW Hybrid Solar Inverter Single Phase — view 3
5kW Hybrid Solar Inverter Single Phase — view 4
5kW Hybrid Solar Inverter Single Phase — view 5
5kW Hybrid Solar Inverter Single Phase — view 6

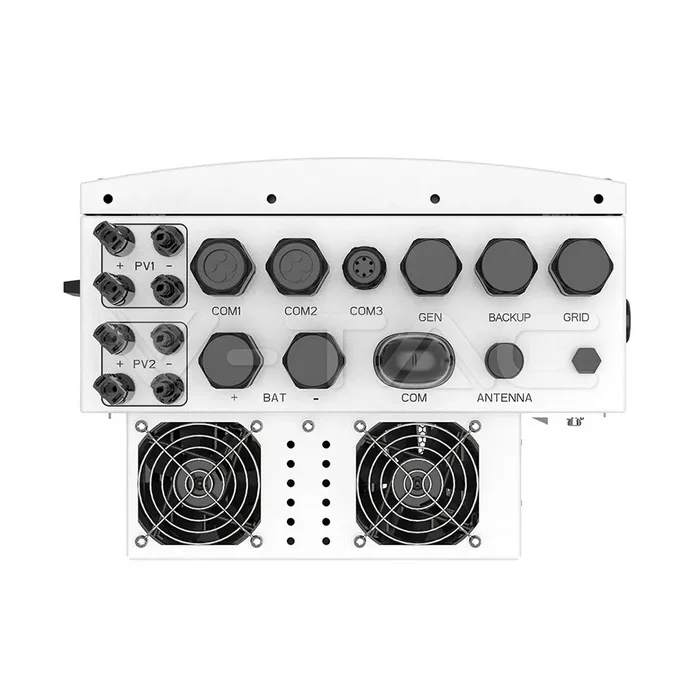

5kW Hybrid Solar Inverter Single Phase — view 7

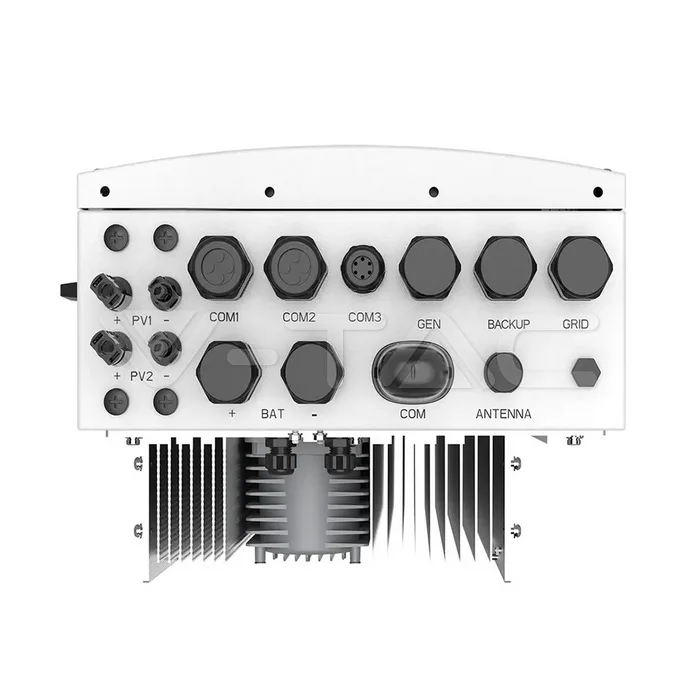

5kW Hybrid Solar Inverter Single Phase — view 8
V-TAC · S6-EH1P5K-L-PLUS
● AUF ANFRAGE · VERFÜGBARKEIT ANFRAGEN

5kW Hybrid Solar Inverter Single Phase

5kW Hybrid Solar Inverter Single Phase with IP66 protection and an operating range of -40 to +60℃. 10 years; certification on file: EMC License, LVD License and RED.

ab€793EXKL. UST. · LISTENPREIS
StufeIhr PreisZahlungsziel
Trade€793Card · PayPal · Klarna · Apple Pay
Pro€753Card · PayPal · Klarna · Apple Pay
Master€714Card · PayPal · Klarna · Apple Pay
HERSTELLERGARANTIE
10 years
Es gelten die eigenen Bedingungen des Herstellers. Wir bearbeiten die Reklamation — siehe Verkaufsbedingungen.
ZERTIFIZIERUNG · 3
EMC LicenseLVD LicenseRED

Technische Daten

ELECTRICAL DATA13 items
Max. usable PV input power8kW
Max. PV Input Current16A / 16A
Max. PV Short circuit current20A / 20A
Max. charge / discharge current112V
Max. AC output current (Grid Side)22.8A / 21.8A
Max. Input current (Grid Side)32A
Max. PV Input Voltage500V
MPPT Voltage Range90-435V
Start-up voltage90V
Rated grid voltage220V / 230V
Rated grid frequency50Hz / 60Hz
Power Factor> 0.99 (0.8 leading - 0.8 lagging)
PhaseSingle Phase
MECHANICAL & BUILD1 item
AC Grid (output)Rated Power: 5kW
PHYSICAL DATA3 items
Working conditions-40 to +60℃
IP RatingIP66
Size335 x 560 x 253 mm
CERTIFICATIONS & WARRANTY1 item
Warranty10 years
PACKAGING1 item
Items per box1
PRODUCT DATA4 items
Order code12290
Product codeS6-EH1P5K-L-PLUS
Release Date04.02.25
BrandSOLIS
