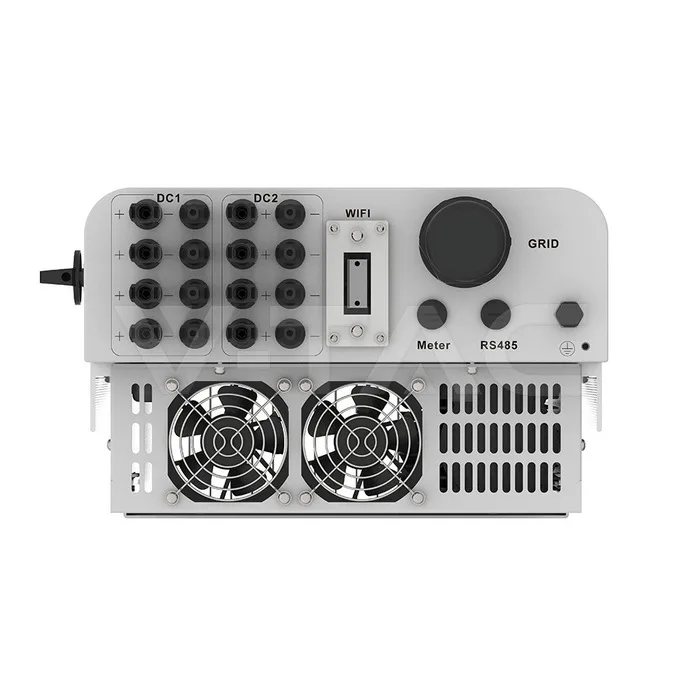

35kW On Grid Solar Inverter Three Phase 380VAC — view 6
V-TAC · SUN-35K-G04
● SUR DEMANDE · VÉRIFIER LA DISPONIBILITÉ

35kW On Grid Solar Inverter Three Phase 380VAC

35kW On Grid Solar Inverter Three Phase 380VAC with IP65 protection and an operating range of -25 to +60℃, >45℃ Derating. 5 years; certification on file: Declaration of Conformity.

dès€2,275HT · PRIX CATALOGUE
NiveauVotre prixConditions
Trade€2,275Card · PayPal · Klarna · Apple Pay
Pro€2,161Card · PayPal · Klarna · Apple Pay
Master€2,048Card · PayPal · Klarna · Apple Pay
GARANTIE FABRICANT
5 years
Les conditions propres au fabricant s'appliquent. Nous instruisons la réclamation — voir les conditions de vente.
CERTIFICATION · 1
Declaration of Conformity

Spécifications techniques

ELECTRICAL DATA14 items
Max. Operating PV Input Current40+40A
Max. Input Short Circuit Current60+60A
Rated AC Output Current53/50.7A
Max. AC Output Current58.3/55.8A
Max. PV Input Power45.5kW
Rated AC Output Active Power35kW
PhaseThree Phase
Max. PV Input Voltage1000V
MPPT Voltage Range200~850V
Rated PV Input Voltage600V
Start-Up Voltage250V
Rated Output Voltage/Range220/380V, 230/400V 0.85Un-1.1Un
Rated Output Grid Frequency/Range(Hz)50/45-55, 60/55-65
Power Factor0.8 leading to 0.8 lagging
PHYSICAL DATA3 items
IP RatingIP65
Working conditions-25 to +60℃, >45℃ Derating
Size362 x 577 x 215 mm
CERTIFICATIONS & WARRANTY1 item
Warranty5 years
PACKAGING2 items
Item Weight23 kg
Items per box1
PRODUCT DATA4 items
Order code12722
Product codeSUN-35K-G04
Release Date22.04.26
BrandDeye
