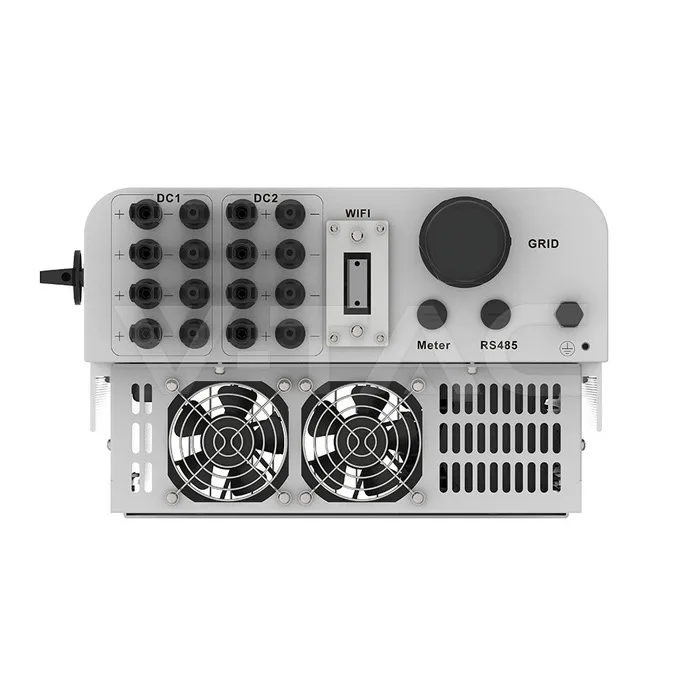

35kW On Grid Solar Inverter Three Phase 380VAC 5yrs Warranty

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Consultar precio / disponibilidad

BAJO PEDIDO · SIN PRECIO DE TARIFA PUBLICADO

Solicitar precio y disponibilidad

WARRANTY

Warranty 5 years

CERTIFICATION

Per datasheet

Technical specification

Manual

Declaration of Conformity

General Information

Electrical Data

Current Max. Operating PV Input Current40+40A; Max. Input Short Circuit Current: 60+60A; Rated AC Output Current: 53/50.7A; Max. AC Output Current: 58.3/55.8A;

Wattage Max. PV Input Power45.5kW; Rated AC Output Active Power: 35kW

Phase Three Phase

Voltage Max. PV Input Voltage1000V ; MPPT Voltage Range: 200~850V; Rated PV Input Voltage: 600V; Start-Up Voltage: 250V; Rated Output Voltage/Range: 220/380V, 230/400V 0.85Un-1.1Un;

Frequency Rated Output Grid Frequency/Range(Hz)50/45-55, 60/55-65

Power Factor 0.8 leading to 0.8 lagging

Capabilities

IP Rating IP65

Working conditions -25 to +60℃, >45℃ Derating

Dimensions

Size 362 x 577 x 215 mm

Product Data

Order code 12722

Product code SUN-35K-G04

Item Weight 23 kg

Items per box 1

Additional

Release Date 22.04.26

Brand Deye

Warranty 5 years

Documents

PDFSUN-30-33-35-36K-G04-EU-Declaration-of-Conformity.pdfV-TAC · datasheet PDFSUN-30-33-35-36K-G04-Technical-Specs.pdfV-TAC · datasheet PDFSUN-30-33-35-36K-G04-Manual.pdfV-TAC · external
