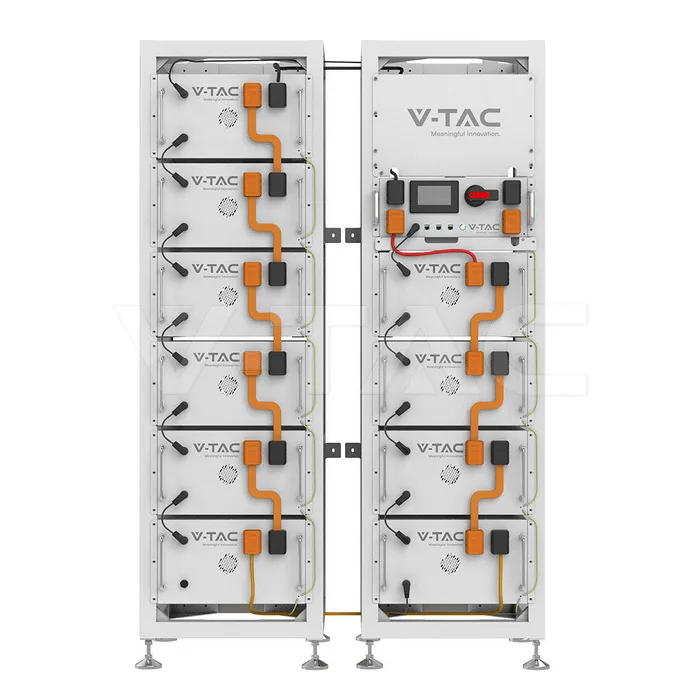

105kWh HV LiFePO4 Battery System Oliter IP20 — view 2

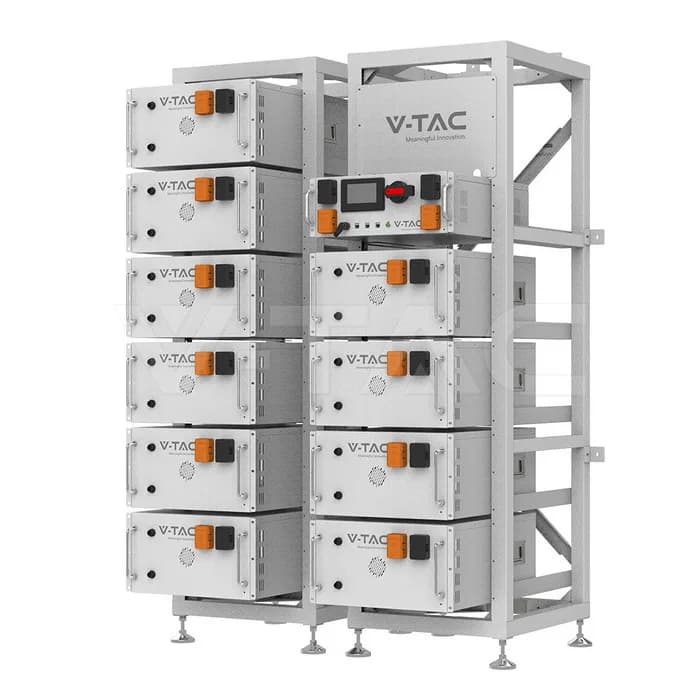

105kWh HV LiFePO4 Battery System Oliter IP20 — view 3
105kWh HV LiFePO4 Battery System Oliter IP20 — view 4
105kWh HV LiFePO4 Battery System Oliter IP20 — view 5
V-TAC · OHR105.4K-206
● EN STOCK · ENTREPÔT DÉLAI

105kWh HV LiFePO4 Battery System Oliter IP20

105kWh HV LiFePO4 Battery System Oliter IP20 with 206Ah, LiFePO4 capacity. 10 years.

dès€18,060HT · PRIX CATALOGUE
NiveauVotre prixConditions
Trade€18,060Card · PayPal · Klarna · Apple Pay
Pro€17,157Card · PayPal · Klarna · Apple Pay
Master€16,254Card · PayPal · Klarna · Apple Pay
GARANTIE FABRICANT
10 years
Les conditions propres au fabricant s'appliquent. Nous instruisons la réclamation — voir les conditions de vente.
CERTIFICATION
Per datasheet

Spécifications techniques

ELECTRICAL DATA4 items
CurrentRecommend Charge/Discharge Current 100A
System Nominal Voltage512V
System Operating Voltage464 - 568V
Battery Capacity206Ah, LiFePO4
MECHANICAL & BUILD5 items
System Nominal Capacity105.4kWh (10 x 10.54kWh)
System Usable Capacity94.8kWh
MountOn a Rack
Charge0～55℃ / Discharge: -20℃～+55℃
Cells ChemistryLiFePO4
PHYSICAL DATA2 items
IP RatingIP20
Size1200 x 620 x 1870 mm
CERTIFICATIONS & WARRANTY1 item
Warranty10 years
PACKAGING1 item
Item Weight1029 kg
PRODUCT DATA4 items
Order code12297
Product codeOHR105.4K-206
Release Date28.11.2024
BrandV-TAC

Documents
