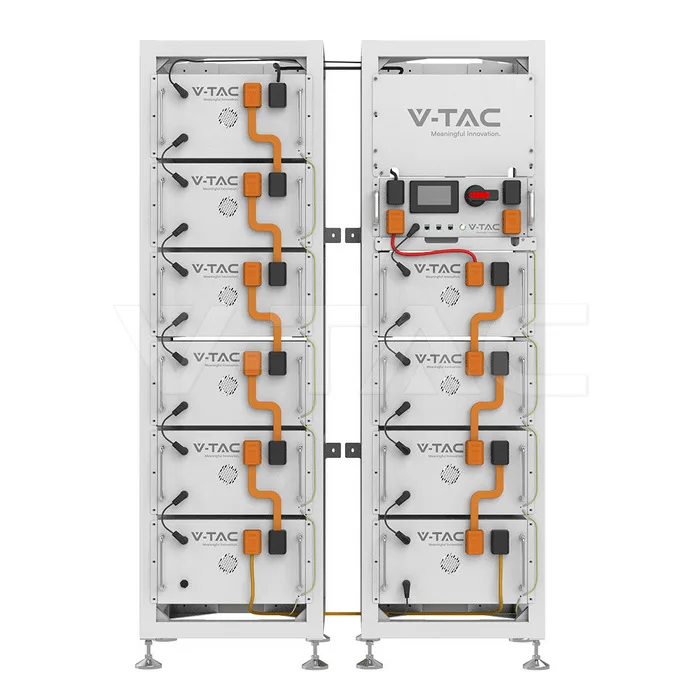

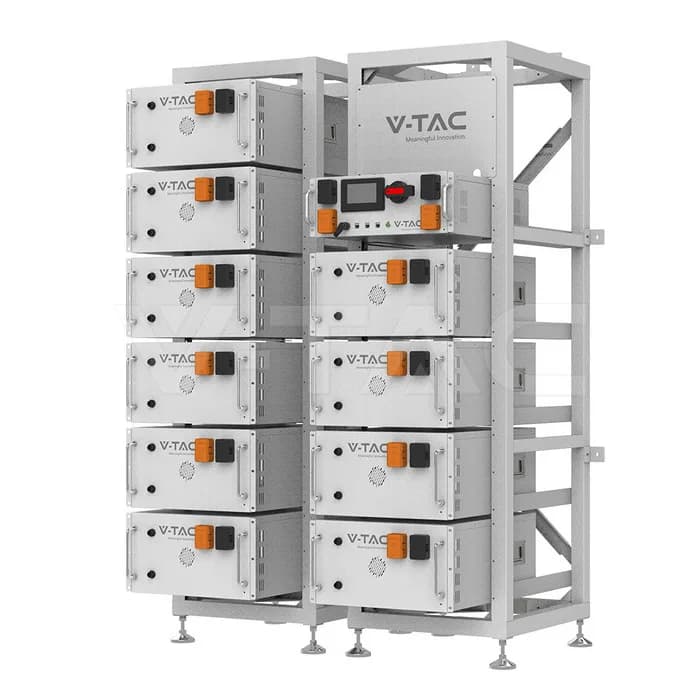

105kWh HV LiFePO4 Battery System Oliter IP20

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Consultar precio / disponibilidad

BAJO PEDIDO · SIN PRECIO DE TARIFA PUBLICADO

Solicitar precio y disponibilidad

WARRANTY

Warranty 10 years

CERTIFICATION

Per datasheet

Technical specification

Manual

Expansion and Use Statement

General Information

Electrical Data

Current Recommend Charge/Discharge Current 100A

Wattage System Nominal Capacity105.4kWh (10 x 10.54kWh); System Usable Capacity:94.8kWh;

Voltage System Nominal Voltage512V; System Operating Voltage: 464 - 568V;

Body Details

Mount On a Rack

Capabilities

Battery Capacity 206Ah, LiFePO4

Working conditions Charge0～55℃ / Discharge: -20℃～+55℃

IP Rating IP20

Cells Chemistry LiFePO4

Dimensions

Size 1200 x 620 x 1870 mm

Product Data

Order code 12297

Product code OHR105.4K-206

Item Weight 1029 kg

Additional

Release Date 28.11.2024

Warranty 10 years

Brand V-TAC

Documents

PDF12298-12297-CCTI-CE-EMC_EN 61000-6-3.pdfV-TAC · datasheet PDFV-TAC-High-Voltage-Battery-Expansion-and-Use-Statement.pdfV-TAC · datasheet PDFV-TAC OHR-200 INSTRUCTIONS V2.1 Y.pdfV-TAC · external
