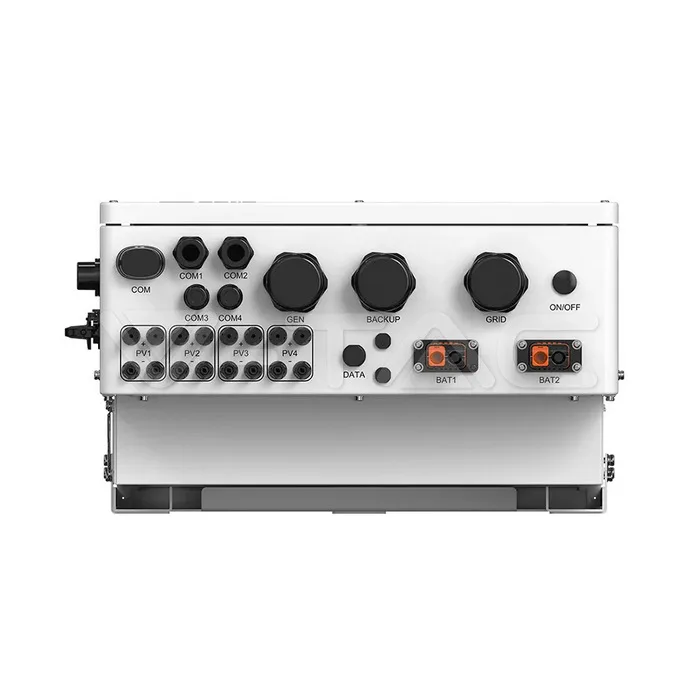

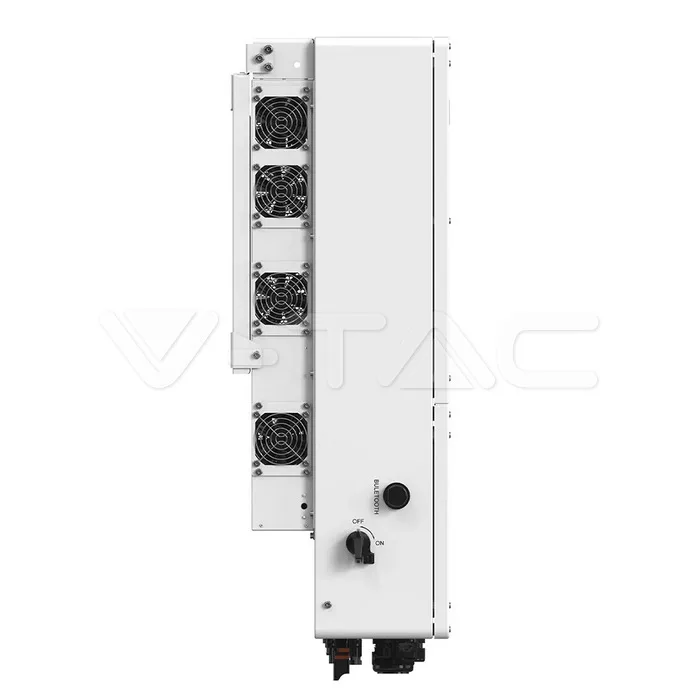

50kW Hybrid Solar Inverter Three Phase High Voltage

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Prix / disponibilité sur demande

SUR COMMANDE · PAS DE PRIX CATALOGUE PUBLIÉ

Demander prix et disponibilité

GARANTIE

Warranty 10 years

CERTIFICATION

EN 50549

Spécifications techniques

Manual

Declaration of Conformity

C10-11

Compatibility list

EN 50549

Certificate of Conformity

EMC License

LVD License

Service Manual

General Information

Electrical Data

Wattage Max. usable PV input power96kW; AC Grid (output): Rated Power: 50kW;

Current Max. PV Input Current4 × 40A; Max. PV Short circuit current: 4 × 60A; Max. charge / discharge current: 70A × 2; Max. AC output current (Grid Side): 76A / 72.2A;

Voltage Max. PV Input Voltage1000V ; MPPT Voltage Range: 150-850V; Start-up voltage: 180V; Rated grid voltage: 3/N/PE, 220V / 380V; 3/N/PE, 230V / 400V;

Frequency Rated grid frequency50Hz / 60Hz

Power Factor > 0.99 (0.8 leading - 0.8 lagging)

Phase Three Phase

Capabilities

Working conditions `-40 to +60℃

IP Rating IP66

Dimensions

Size 530 x 880 x 290 mm

Product Data

Order code 12294

Product code S6-EH3P50K-H

Items per box 1

Additional

Release Date 04.02.25

Warranty 10 years

Brand SOLIS
