CATÁLOGO/INVERSORES HÍBRIDOS/REF 12294
50kW Hybrid Solar Inverter Three Phase High Voltage — view 1
50kW Hybrid Solar Inverter Three Phase High Voltage — view 2
50kW Hybrid Solar Inverter Three Phase High Voltage — view 3

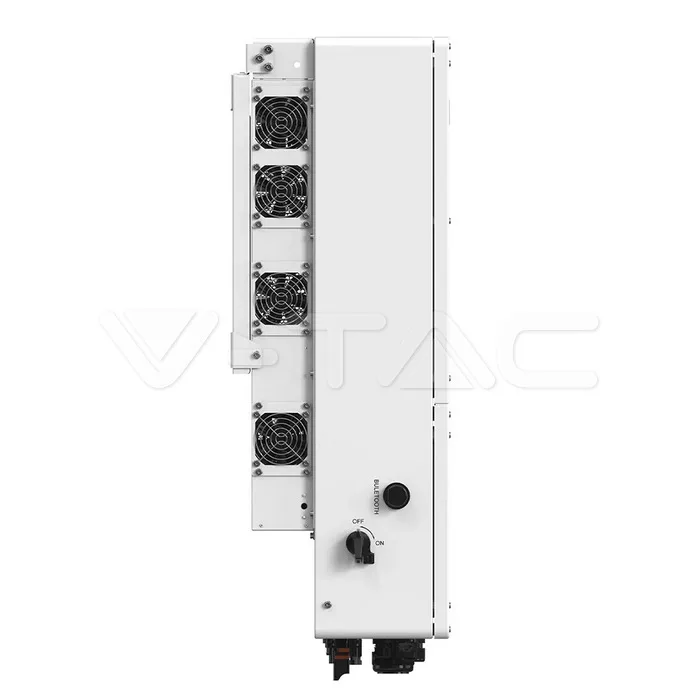

50kW Hybrid Solar Inverter Three Phase High Voltage — view 4

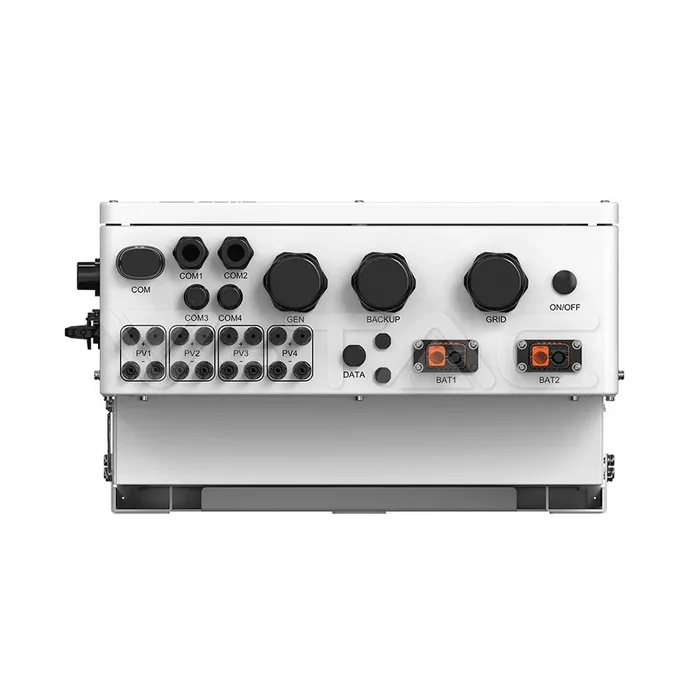

50kW Hybrid Solar Inverter Three Phase High Voltage — view 5
V-TAC · S6-EH3P50K-H
● STOCK LIMITADO · ALMACÉN ENTREGA

50kW Hybrid Solar Inverter Three Phase High Voltage

50kW Hybrid Solar Inverter Three Phase High Voltage with IP66 protection and an operating range of -40 to +60℃. 10 years; certification on file: Declaration of Conformity, Certificate of Conformity, EMC License and LVD License.

desde€4,550IVA EXCL. · PRECIO DE TARIFA
NivelTu precioCondiciones
Trade€4,550Card · PayPal · Klarna · Apple Pay
Pro€4,323Card · PayPal · Klarna · Apple Pay
Master€4,095Card · PayPal · Klarna · Apple Pay
Abre una cuenta para pedir
GARANTÍA DEL FABRICANTE
10 years
Se aplican las condiciones propias del fabricante. Nosotros tramitamos la reclamación — consulta las condiciones de venta.
CERTIFICACIÓN · 4
Declaration of ConformityCertificate of ConformityEMC LicenseLVD License

Especificaciones técnicas

ELECTRICAL DATA12 items
Max. usable PV input power96kW
Max. PV Input Current4 × 40A
Max. PV Short circuit current4 × 60A
Max. charge / discharge current70A × 2
Max. AC output current (Grid Side)76A / 72.2A
Max. PV Input Voltage1000V
MPPT Voltage Range150-850V
Start-up voltage180V
Rated grid voltage3/N/PE, 220V / 380V
Rated grid frequency50Hz / 60Hz
Power Factor> 0.99 (0.8 leading - 0.8 lagging)
PhaseThree Phase
MECHANICAL & BUILD1 item
AC Grid (output)Rated Power: 50kW
PHYSICAL DATA3 items
Working conditions-40 to +60℃
IP RatingIP66
Size530 x 880 x 290 mm
CERTIFICATIONS & WARRANTY1 item
Warranty10 years
PACKAGING1 item
Items per box1
PRODUCT DATA4 items
Order code12294
Product codeS6-EH3P50K-H
Release Date04.02.25
BrandSOLIS

Documentos
