CATALOGUE/ONDULEURS HYBRIDES/RÉF 12157
3.6kW Isuna/Sinexcel On/Off Grid Hybrid Solar Inverter — view 1
3.6kW Isuna/Sinexcel On/Off Grid Hybrid Solar Inverter — view 2
3.6kW Isuna/Sinexcel On/Off Grid Hybrid Solar Inverter — view 3
3.6kW Isuna/Sinexcel On/Off Grid Hybrid Solar Inverter — view 4
3.6kW Isuna/Sinexcel On/Off Grid Hybrid Solar Inverter — view 5
3.6kW Isuna/Sinexcel On/Off Grid Hybrid Solar Inverter — view 6

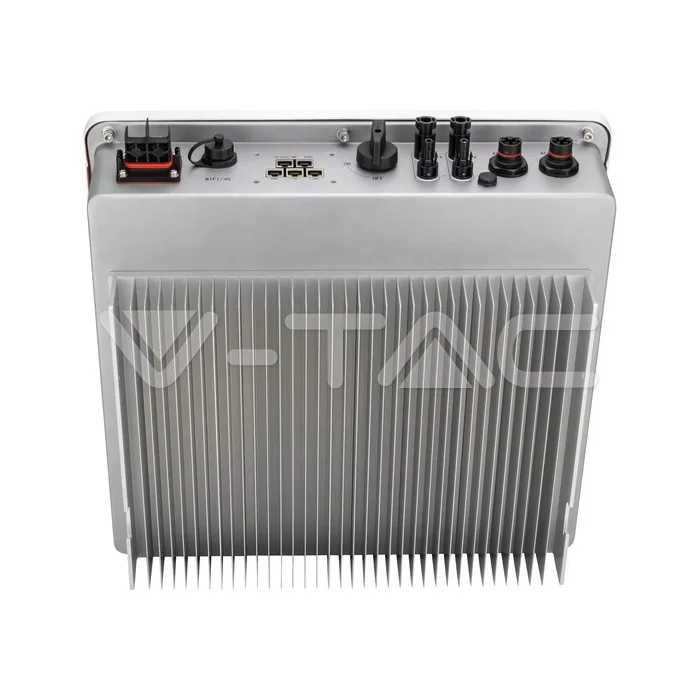

3.6kW Isuna/Sinexcel On/Off Grid Hybrid Solar Inverter — view 7
V-TAC · VT-Isuna 3600S
● EN STOCK · ENTREPÔT DÉLAI

3.6kW Isuna/Sinexcel On/Off Grid Hybrid Solar Inverter

3.6kW Isuna/Sinexcel On/Off Grid Hybrid Solar Inverter with single phase, IP65 protection and an operating range of - 25 to 60℃. 10 years; certification on file: EMC License and LVD License.

dès€759HT · PRIX CATALOGUE
NiveauVotre prixConditions
Trade€759Card · PayPal · Klarna · Apple Pay
Pro€721Card · PayPal · Klarna · Apple Pay
Master€683Card · PayPal · Klarna · Apple Pay
GARANTIE FABRICANT
10 years
Les conditions propres au fabricant s'appliquent. Nous instruisons la réclamation — voir les conditions de vente.
CERTIFICATION · 2
EMC LicenseLVD License

Spécifications techniques

ELECTRICAL DATA7 items
Battery PortMax. Charge/DIscharge Current (A) 85
Battery PortMax. Charge/DIscharge Power 3.6kW
Nominal Input Voltage360V
Battery Nominal Voltage51.2V
FrequencyNominal Grid Frequency 50 Hz
Power Factor~1 (0.8 lead to 0.8 lag)
PhaseSingle Phase
MECHANICAL & BUILD5 items
PV InputMax. Input Current (A) 13/13
PV InputMax. Short Current (A) 18/18
PV InputMax. Input Power 6000Wp
PV InputMax. PV Voltage 600V
Startup95V
PHYSICAL DATA3 items
Working conditions- 25 to 60℃
IP RatingIP65
Size500 x 470 x 180 mm
CERTIFICATIONS & WARRANTY1 item
Warranty10 years
PACKAGING3 items
Item Weight21 kg
Items per box1
EAN Code3800170224773
PRODUCT DATA4 items
Order code12157
Product codeVT-Isuna 3600S
Release Date05.07.2024
BrandSINEXCEL

Documents
