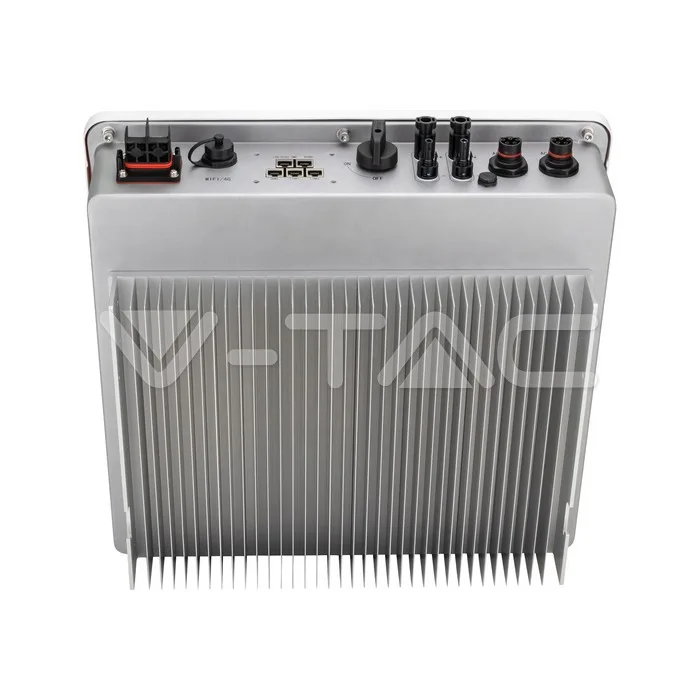

3.6kW Isuna/Sinexcel On/Off Grid Hybrid Solar Inverter — view 1

V-TAC · VT-Isuna 3600S

● EN STOCK · ALMACÉN ENTREGA

3.6kW Isuna/Sinexcel On/Off Grid Hybrid Solar Inverter

Name: 3.6kW Isuna/Sinexcel On/Off Grid Hybrid Solar Inverter
Brand: V-TAC
SKU: 12157
Price: 759 EUR
Availability: InStock

3.6kW Isuna/Sinexcel On/Off Grid Hybrid Solar Inverter with single phase, IP65 protection and an operating range of - 25 to 60℃. 10 years; certification on file: EMC License and LVD License.

desde€759IVA EXCL. · PRECIO DE TARIFA

NivelTu precioCondiciones

Trade€759Card · PayPal · Klarna · Apple Pay

Pro€721Card · PayPal · Klarna · Apple Pay

Master€683Card · PayPal · Klarna · Apple Pay

🔒 Desbloquea los precios profesionales

Abre una cuenta para pedir

GARANTÍA DEL FABRICANTE

10 years

Se aplican las condiciones propias del fabricante. Nosotros tramitamos la reclamación — consulta las condiciones de venta.

CERTIFICACIÓN · 2

EMC LicenseLVD License

Especificaciones técnicas

ELECTRICAL DATA7 items

Battery PortMax. Charge/DIscharge Current (A) 85

Battery PortMax. Charge/DIscharge Power 3.6kW

Nominal Input Voltage360V

Battery Nominal Voltage51.2V

FrequencyNominal Grid Frequency 50 Hz

Power Factor~1 (0.8 lead to 0.8 lag)

PhaseSingle Phase

MECHANICAL & BUILD5 items

PV InputMax. Input Current (A) 13/13

PV InputMax. Short Current (A) 18/18

PV InputMax. Input Power 6000Wp

PV InputMax. PV Voltage 600V

Startup95V

PHYSICAL DATA3 items

Working conditions- 25 to 60℃

IP RatingIP65

Size500 x 470 x 180 mm

CERTIFICATIONS & WARRANTY1 item

Warranty10 years

PACKAGING3 items

Item Weight21 kg

Items per box1

EAN Code3800170224773

PRODUCT DATA4 items

Order code12157

Product codeVT-Isuna 3600S

Release Date05.07.2024

BrandSINEXCEL

Documentos

DATASHEET

12156 12157 12158 Single phase C10 11V-TAC · datasheet 12156 12157 12158 Single phase EN 50549V-TAC · datasheet

CERTIFICATE

CEI 0-21 certificate (Italy)V-TAC · certificate EMC / RED reportV-TAC · certificate LVD licenseV-TAC · certificate VDE certificateV-TAC · certificate CEI 0-21 certificate (Italy) — CEI 0 21 Addendum tecnico per la compilazione del regolamento esercizio IsunaV-TAC · certificate Declaration of conformityV-TAC · certificate
