CATALOGUE/ONDULEURS HYBRIDES/RÉF 11980
6kW On Grid Solar Inverter Single Phase 5 yrs Warranty — view 1

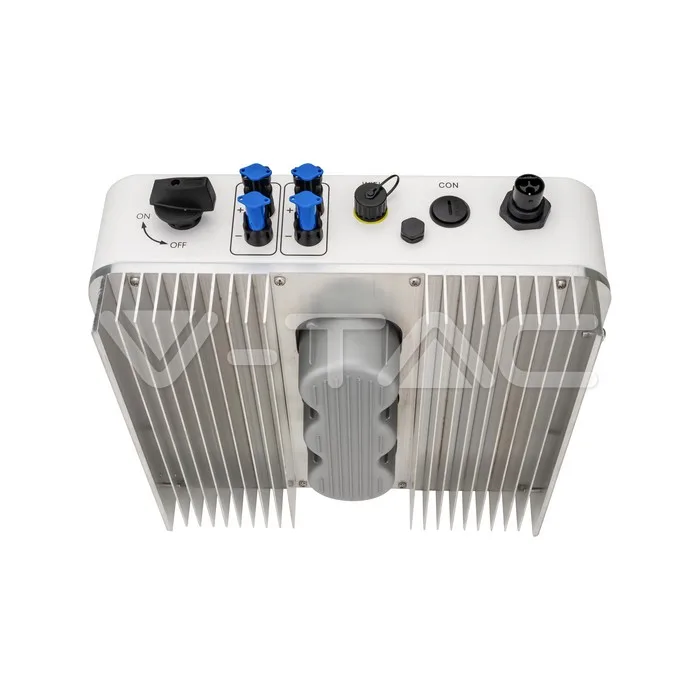

6kW On Grid Solar Inverter Single Phase 5 yrs Warranty — view 2

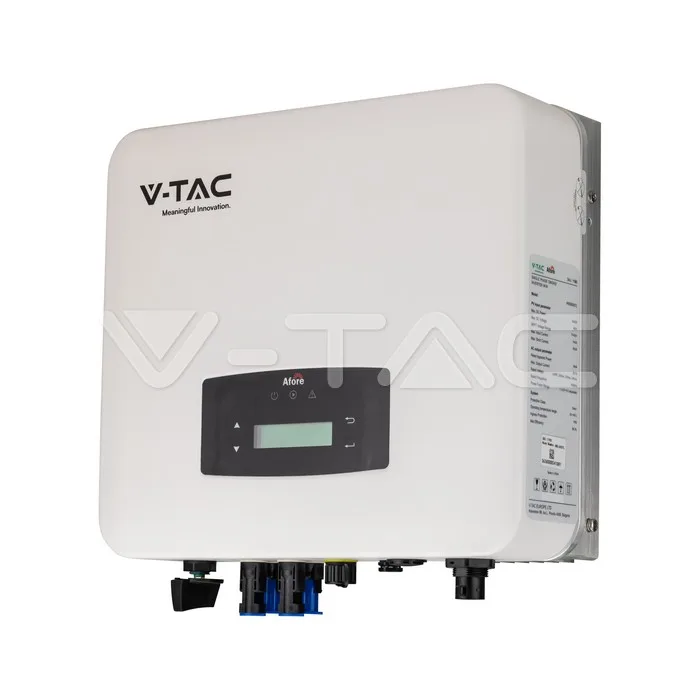

6kW On Grid Solar Inverter Single Phase 5 yrs Warranty — view 3
V-TAC · HNS6000TL
● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

6kW On Grid Solar Inverter Single Phase 5 yrs Warranty

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Prix / disponibilité sur demande
SUR COMMANDE · PAS DE PRIX CATALOGUE PUBLIÉ
GARANTIE
Warranty Conditions
CERTIFICATION
CEI 0-21

Spécifications techniques

Manual |
CEI 0-21
EN 50549
Warranty Conditions
C10-11
General Information
Electrical Data
Wattage PV Input Max. 8400W; AC Grid (output)Normal Power 6000W;
Current Max. PV Input Current (A)14 x 2; AC Grid (output): Normal AC Current 26.1A; AC Grid (output): Max. cont. output current 28.7A;
Voltage Max. PV Input Voltage (Vdc)600V ; MPPT Voltage Range (Vdc): 70-550V; AC Grid (output): Normal AC Voltage:L/N/PE 220Vac/230Vac/240Vac;
Frequency AC Grid Output 50/60 Hz
Power Factor 1.0 (0.8 leading to 0.8 lagging)
Phase Single Phase
Capabilities
Working conditions -25 to +60℃, >45℃ Derating
IP Rating IP65
Product Data
Order code 11980
Product code HNS6000TL
Items per box 1
Additional
Release Date 29.05.2024
Warranty 10 years
Brand AFORE

Documents
