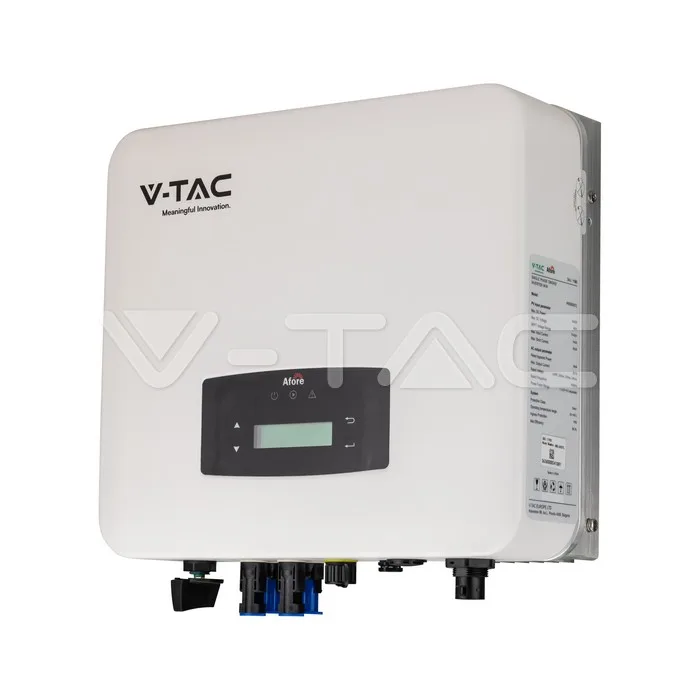

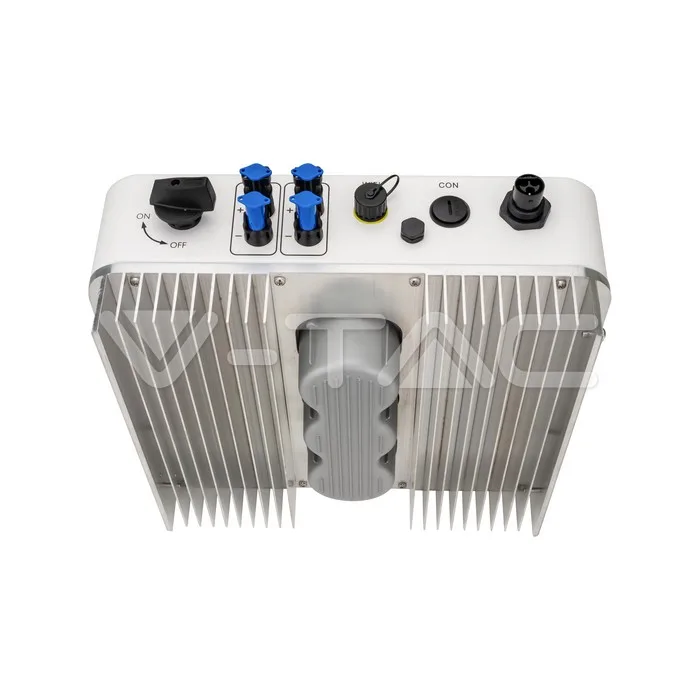

6kW On Grid Solar Inverter Single Phase 5 yrs Warranty

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Consultar precio / disponibilidad

BAJO PEDIDO · SIN PRECIO DE TARIFA PUBLICADO

Solicitar precio y disponibilidad

WARRANTY

Warranty Conditions

CERTIFICATION

CEI 0-21

Technical specification

Manual |

CEI 0-21

EN 50549

Warranty Conditions

C10-11

General Information

Electrical Data

Wattage PV Input Max. 8400W; AC Grid (output)Normal Power 6000W;

Current Max. PV Input Current (A)14 x 2; AC Grid (output): Normal AC Current 26.1A; AC Grid (output): Max. cont. output current 28.7A;

Voltage Max. PV Input Voltage (Vdc)600V ; MPPT Voltage Range (Vdc): 70-550V; AC Grid (output): Normal AC Voltage:L/N/PE 220Vac/230Vac/240Vac;

Frequency AC Grid Output 50/60 Hz

Power Factor 1.0 (0.8 leading to 0.8 lagging)

Phase Single Phase

Capabilities

Working conditions -25 to +60℃, >45℃ Derating

IP Rating IP65

Product Data

Order code 11980

Product code HNS6000TL

Items per box 1

Additional

Release Date 29.05.2024

Warranty 10 years

Brand AFORE

Documents

PDF11979-11980-Instruction-of-Installing-Zero-Injection-Port-on-Single-Phase-5KW-Inverter.pdfV-TAC · datasheet PDF11979-CEI-0-21.pdfV-TAC · datasheet PDF11980-C10-11-BE.pdfV-TAC · datasheet PDF11980-EN-50549.pdfV-TAC · datasheet PDF11980-Manual-instructions.pdfV-TAC · datasheet PDF11980-Warranty-Letter.pdfV-TAC · datasheet
