CATALOGO/INVERTER IBRIDI/COD. 11542
10kW Three Phase Hybrid Solar Inverter — view 1

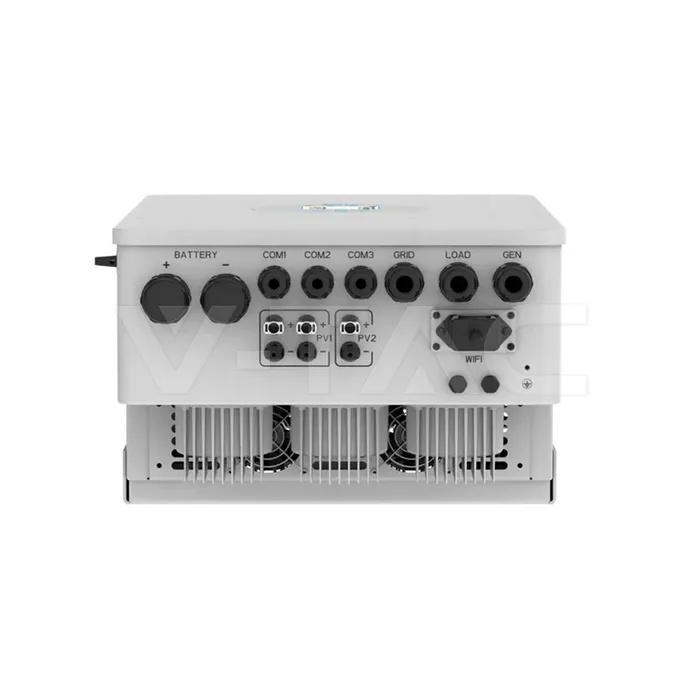

10kW Three Phase Hybrid Solar Inverter — view 2
10kW Three Phase Hybrid Solar Inverter — view 3
10kW Three Phase Hybrid Solar Inverter — view 4
10kW Three Phase Hybrid Solar Inverter — view 5
10kW Three Phase Hybrid Solar Inverter — view 6

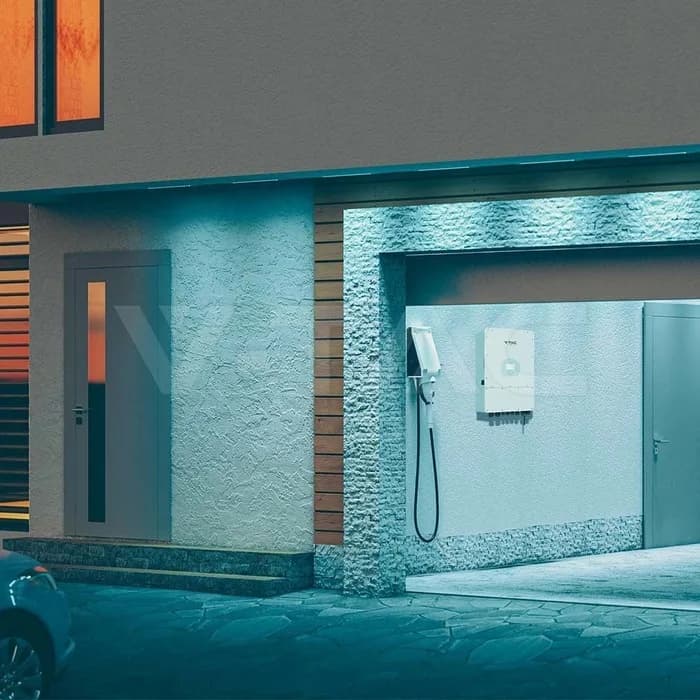

10kW Three Phase Hybrid Solar Inverter — view 7
V-TAC · SUN-10K-SG04LP3-EU
● SU RICHIESTA · VERIFICARE DISPONIBILITÀ

10kW Three Phase Hybrid Solar Inverter

10kW Three Phase Hybrid Solar Inverter with IP65 protection and an operating range of -40~60°C, >45°C derating. 10 years; certification on file: EMC License and Declaration of Conformity.

da€1,625IVA ESCL. · PREZZO DI LISTINO
LivelloIl tuo prezzoCondizioni
Trade€1,625Card · PayPal · Klarna · Apple Pay
Pro€1,544Card · PayPal · Klarna · Apple Pay
Master€1,463Card · PayPal · Klarna · Apple Pay
Richiedi prezzo e disponibilità
GARANZIA DEL PRODUTTORE
10 years
Valgono le condizioni proprie del produttore. Il reclamo lo gestiamo noi — vedi le condizioni di vendita.
CERTIFICAZIONE · 2
EMC LicenseDeclaration of Conformity

Specifiche tecniche

ELECTRICAL DATA12 items
Max. DC Input Power13000W
Rated AC Output and UPS Power10000W
Max. AC Output Power11000W
AC Output Rated Current15.2/14.5A
Max. AC Current22.7/21.7A
Rated PV Input Voltage550V (160V～800V
Start-up Voltage160V
MPPT Voltage Range200-650V
Full Load DC Voltage Range350-650V
Frequency50/60Hz
Power Factor0.8 leading to 0.8 lagging
PhaseThree Phase
MECHANICAL & BUILD1 item
Max. Continuous AC Passthrough40A
PHYSICAL DATA3 items
Working conditions-40~60°C, >45°C derating
IP RatingIP65
Size422W x 699.3H x 279D
CERTIFICATIONS & WARRANTY1 item
Warranty10 years
PACKAGING1 item
Item Weight48 kg
PRODUCT DATA3 items
Order code11542
Product codeSUN-10K-SG04LP3-EU
BrandDeye

Documenti

PDF11542-EMC-Deye_certificate_EN IEC 61000-6-1(2&3&4)&EN IEC 61000-3-2(3&11&12)_SUN-(5-12)K-SG04LP13-EU(AU)_V02.pdfV-TAC · datasheetPDF11542-EMC-Deye_certificate_IEC 61000-6-1(2&3&4)&IEC 61000-3-2(3&11&12)_SUN-(5-12)K-SG04LP13-EU(AU)_V02.pdfV-TAC · datasheetPDF11542-LVD-BL-DG21C0658D01.pdfV-TAC · datasheetPDF11542-LVD-BL-DG21C0658D02.pdfV-TAC · datasheetPDF11542-LVD-Deye-Certificate-EN 50549-1_SUN-(5-12)K-SG04LP3-EU_Europe.pdfV-TAC · datasheetPDF5-12kw-Hybrid-Solar-Inverters-LVD-Certificate.pdfV-TAC · datasheetPDFCEI-021-22-406-00-2022-12-16-SKUs-11539-11542-11543.pdfV-TAC · datasheetPDFCEI-021-23-029-00-2023-01-18-SKUs-11447-11542-11543.pdfV-TAC · datasheetPDFDC-SUN-12K-SG04LP3-EU-Declaration.pdfV-TAC · datasheetPDFDeclaration-of-product-model-Deye-Inverters.pdfV-TAC · datasheetPDFDeye-SUN-Series-Hybrid-Inverter-10-Year-Limited-Warranty-for-Installation-in-Europe.pdfV-TAC · datasheetPDFDeye_certificate_IEC 61727&IEC 62116&IEC 61683&IEC 60068_SUN-(6-12)K-SG04LP3-EU.pdfV-TAC · datasheetPDFNing_Sun-5-12K_VE51280W_GCC_CEI_021_ita_24-003-00.pdfV-TAC · datasheetPDFSKU-11542-10 kWh.pdfV-TAC · datasheetPDFWarranty-Inverters-Deye.pdfV-TAC · datasheetPDF11542-11543-11743-11788-instructions.pdfV-TAC · external
