CATALOGUE/ONDULEURS HYBRIDES/RÉF 12725
100kW On Grid Solar Inverter Three Phase 380VAC — view 1

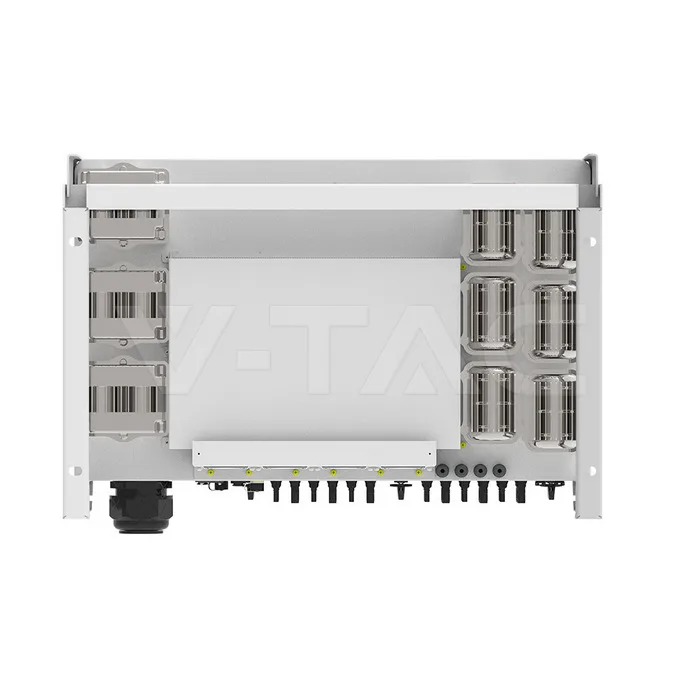

100kW On Grid Solar Inverter Three Phase 380VAC — view 2
100kW On Grid Solar Inverter Three Phase 380VAC — view 3

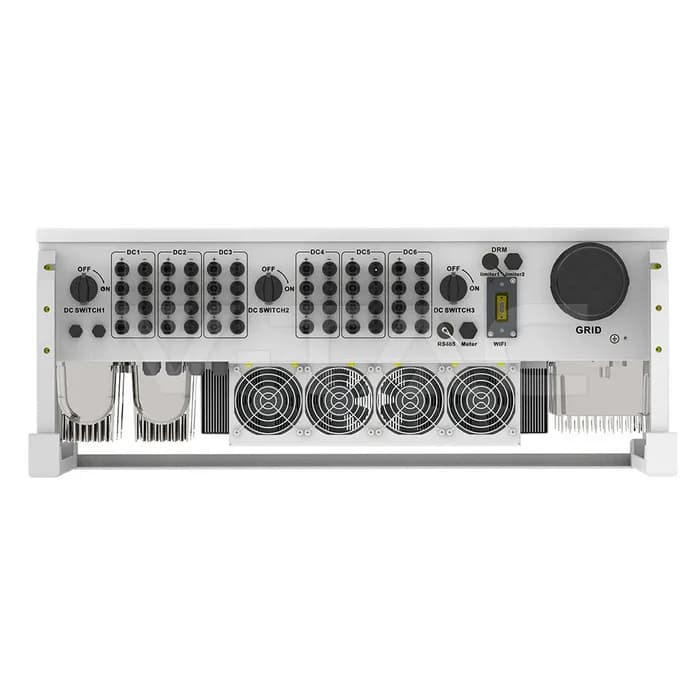

100kW On Grid Solar Inverter Three Phase 380VAC — view 4
100kW On Grid Solar Inverter Three Phase 380VAC — view 5
V-TAC · SUN-100K-G03
● SUR DEMANDE · VÉRIFIER LA DISPONIBILITÉ

100kW On Grid Solar Inverter Three Phase 380VAC

100kW On Grid Solar Inverter Three Phase 380VAC with IP65 protection and an operating range of -25 to +60℃, >45℃ Derating. 5 years; certification on file: Declaration of Conformity.

dès€5,717HT · PRIX CATALOGUE
NiveauVotre prixConditions
Trade€5,717Card · PayPal · Klarna · Apple Pay
Pro€5,431Card · PayPal · Klarna · Apple Pay
Master€5,145Card · PayPal · Klarna · Apple Pay
GARANTIE FABRICANT
5 years
Les conditions propres au fabricant s'appliquent. Nous instruisons la réclamation — voir les conditions de vente.
CERTIFICATION · 1
Declaration of Conformity

Spécifications techniques

ELECTRICAL DATA14 items
Max. Operating PV Input Current40+40+40+40+40+40A
Max. Input Short Circuit Current60+60+60+60+60+60A
Rated AC Output Current151.5/144.9A
Max. AC Output Current166.7/159.4A
Max. PV Input Power150kW
Rated AC Output Active Power100kW
PhaseThree Phase
Max. PV Input Voltage1000V
MPPT Voltage Range200~850V
Rated PV Input Voltage600V
Start-Up Voltage250V
Rated Output Voltage/Range220/380V, 230/400V 0.85Un-1.1Un
Rated Output Grid Frequency/Range(Hz)50/45-55, 60/55-65
Power Factor0.8 leading to 0.8 lagging
PHYSICAL DATA3 items
IP RatingIP65
Working conditions-25 to +60℃, >45℃ Derating
Size824 x 516 x 312.7 mm
CERTIFICATIONS & WARRANTY1 item
Warranty5 years
PACKAGING2 items
Item Weight81 kg
Items per box1
PRODUCT DATA3 items
Order code12725
Product codeSUN-100K-G03
Release Date22.04.26
