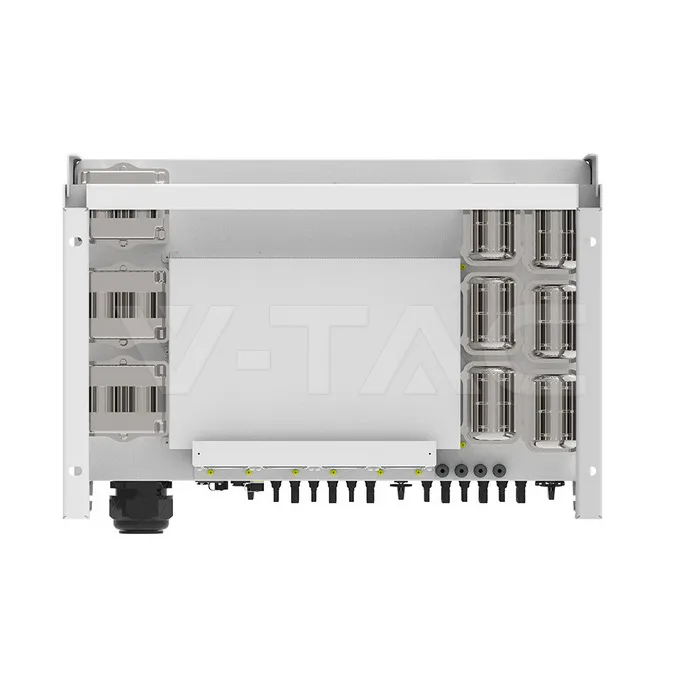

80kW On Grid Solar Inverter Three Phase 380VAC — view 2
80kW On Grid Solar Inverter Three Phase 380VAC — view 3

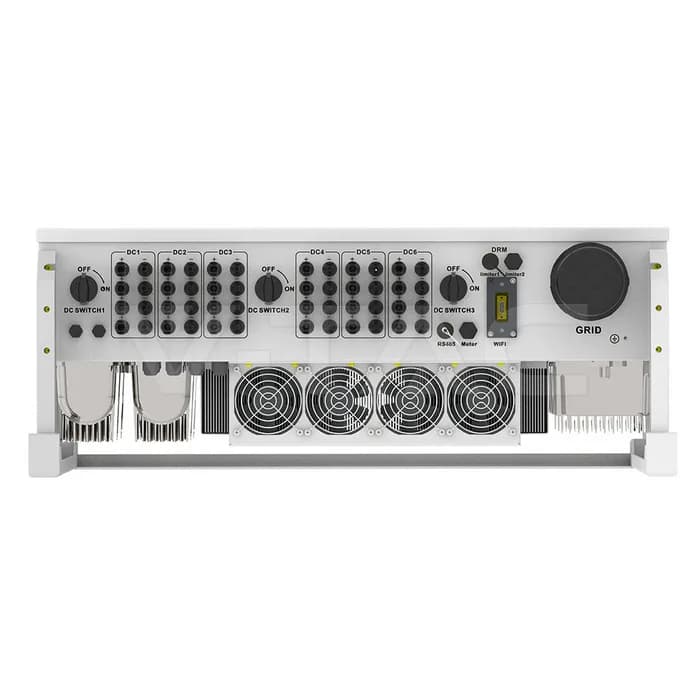

80kW On Grid Solar Inverter Three Phase 380VAC — view 4
80kW On Grid Solar Inverter Three Phase 380VAC — view 5
V-TAC · SUN-80K-G03
● SUR DEMANDE · VÉRIFIER LA DISPONIBILITÉ

80kW On Grid Solar Inverter Three Phase 380VAC

80kW On Grid Solar Inverter Three Phase 380VAC with IP65 protection and an operating range of -25 to +60℃, >45℃ Derating. 5 years; certification on file: Declaration of Conformity.

dès€4,181HT · PRIX CATALOGUE
NiveauVotre prixConditions
Trade€4,181Card · PayPal · Klarna · Apple Pay
Pro€3,972Card · PayPal · Klarna · Apple Pay
Master€3,763Card · PayPal · Klarna · Apple Pay
GARANTIE FABRICANT
5 years
Les conditions propres au fabricant s'appliquent. Nous instruisons la réclamation — voir les conditions de vente.
CERTIFICATION · 1
Declaration of Conformity

Spécifications techniques

ELECTRICAL DATA14 items
Max. Operating PV Input Current40+40+40+40A
Max. Input Short Circuit Current60+60+60+60A
Rated AC Output Current121.2/115.9A
Max. AC Output Current133.3/127.5A
Max. PV Input Power104kW
Rated AC Output Active Power80kW
PhaseThree Phase
Max. PV Input Voltage1000V
MPPT Voltage Range200~850V
Rated PV Input Voltage600V
Start-Up Voltage250V
Rated Output Voltage/Range220/380V, 230/400V 0.85Un-1.1Un
Rated Output Grid Frequency/Range(Hz)50/45-55, 60/55-65
Power Factor0.8 leading to 0.8 lagging
PHYSICAL DATA3 items
IP RatingIP65
Working conditions-25 to +60℃, >45℃ Derating
Size824 x 516 x 312.7 mm
CERTIFICATIONS & WARRANTY1 item
Warranty5 years
PACKAGING2 items
Item Weight81 kg
Items per box1
PRODUCT DATA3 items
Order code12724
Product codeSUN-80K-G03
Release Date22.04.26
