CATALOGUE/ONDULEURS HYBRIDES/RÉF 12696
5kW Hybrid Solar Inverter Single Phase EU Specification 10yrs Warranty — view 1
5kW Hybrid Solar Inverter Single Phase EU Specification 10yrs Warranty — view 2
5kW Hybrid Solar Inverter Single Phase EU Specification 10yrs Warranty — view 3

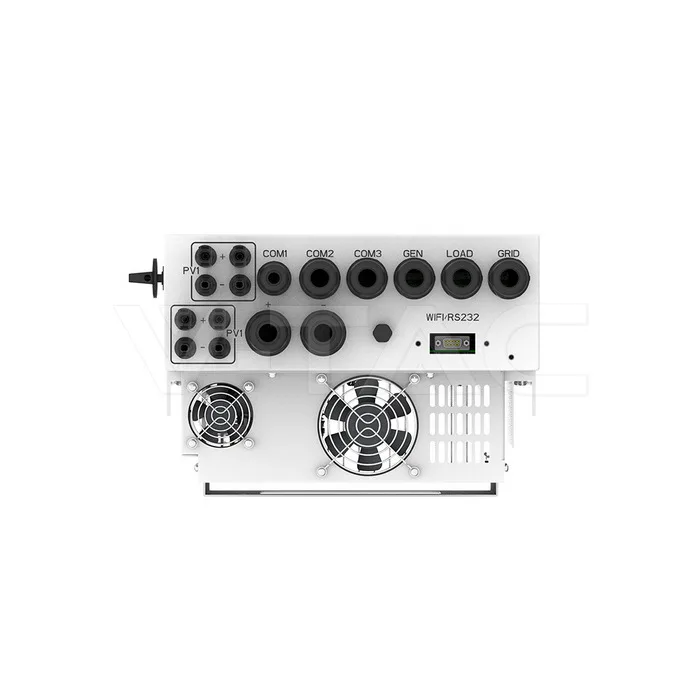

5kW Hybrid Solar Inverter Single Phase EU Specification 10yrs Warranty — view 4
5kW Hybrid Solar Inverter Single Phase EU Specification 10yrs Warranty — view 5
V-TAC · SUN-5K-SG05LP1-EU-AM2-P
● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

5kW Hybrid Solar Inverter Single Phase EU Specification 10yrs Warranty

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Prix / disponibilité sur demande
SUR COMMANDE · PAS DE PRIX CATALOGUE PUBLIÉ
GARANTIE
Warranty 10 years
CERTIFICATION
CEI 0-21 | | |

Spécifications techniques

Manual
Declaration of Conformity
CEI 0-21 | | |
EN 50549
VDE Certificate |
Certificate of Conformity
EMC License
General Information
Electrical Data
Wattage Max. PV Access Power10000W; Rated AC Input/Output Active Power: 5000W;
Current Rated AC Input/Output Current22.7/21.7A; Max. AC Input/Output Current: 25/23.9A; Max. Continuous AC Passthrough: 35A;
Phase Single Phase
Voltage Max. PV Input Voltage500V; Start-up Voltage: 125V; MPPT Voltage Range: 150-425V; Rated PV Input Voltage: 370V;
Frequency Rated Input/Output Grid Frequency/Range 50/45-55, 60/55-65
Power Factor 0.8 leading to 0.8 lagging
Capabilities
IP Rating IP65
Working conditions -40~60°C, >45°C derating
Dimensions
Size 330 × 580 × 232 mm
Product Data
Order code 12696
Product code SUN-5K-SG05LP1-EU-AM2-P
Items per pack 1
Item Weight 24.9 kg
Additional
Release Date 17.02.26
Brand Deye
Warranty 10 years

Documents

PDF12310-SUN-8K-SG05LP1-EU-AM2-P-24SHD0349-02 2024-12-04.pdfV-TAC · datasheetPDF12310-SUN-8K-SG05LP1-EU-AM2-P-24SHD0350-02 2024-12-04.pdfV-TAC · datasheetPDF12310-SUN-8K-SG05LP1-EU-AM2-P-CE-AN-50673119_0001.pdfV-TAC · datasheetPDF12310-SUN-8K-SG05LP1-EU-AM2-P-EMC-ENB2411280072E00301C.pdfV-TAC · datasheetPDF12310-SUN-8K-SG05LP1-EU-AM2-P-EN-50549.pdfV-TAC · datasheetPDF12310-SUN-8K-SG05LP1-EU-AM2-P-ENB2411280072E00401C.pdfV-TAC · datasheetPDF12310-SUN-8K-SG05LP1-EU-AM2-P-EU-Declaration.pdfV-TAC · datasheetPDF12310-SUN-8K-SG05LP1-EU-AM2-P-Technical-Specs.pdfV-TAC · datasheetPDFDeye-Declaration-of-Conformity-IT-VTAC.pdfV-TAC · datasheetPDFNing_Sun-(3.6-10)_VT-12040-1&10240_CEI_021 2022-03 _ita_eng_25-212-00.pdfV-TAC · datasheetPDFNing_Sun-(3.6-10)_VT48200B_CEI_021 2022-03 _ita_eng_26-015-00.pdfV-TAC · datasheetPDFNing_Sun-(3.6-10)_VT48280&14336_CEI_021 2022-03 _ita_eng_25-211-00.pdfV-TAC · datasheetPDFSUN-3.6-10K-SG05LP1-EU-AM2-P-instructions.pdfV-TAC · external
