CATALOGUE/ONDULEURS HYBRIDES/RÉF 12693

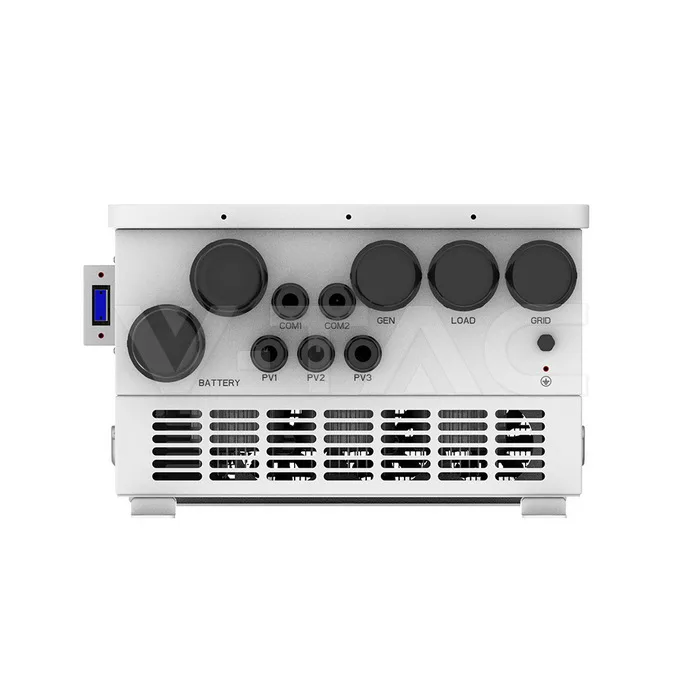

16kW Hybrid Solar Inverter Single Phase 230VAC — view 1
16kW Hybrid Solar Inverter Single Phase 230VAC — view 2
16kW Hybrid Solar Inverter Single Phase 230VAC — view 3
16kW Hybrid Solar Inverter Single Phase 230VAC — view 4
V-TAC · SUN-16K-SG01LP1-EU-AM3-P
● EN STOCK · ENTREPÔT DÉLAI

16kW Hybrid Solar Inverter Single Phase 230VAC

16kW Hybrid Solar Inverter Single Phase 230VAC with IP65 protection and an operating range of -40~60°C, >45°C derating. 10 years; certification on file: Certificate of Conformity, LVD License and TÜV Certificate.

dès€1,989HT · PRIX CATALOGUE
NiveauVotre prixConditions
Trade€1,989Card · PayPal · Klarna · Apple Pay
Pro€1,890Card · PayPal · Klarna · Apple Pay
Master€1,790Card · PayPal · Klarna · Apple Pay
GARANTIE FABRICANT
10 years
Les conditions propres au fabricant s'appliquent. Nous instruisons la réclamation — voir les conditions de vente.
CERTIFICATION · 3
Certificate of ConformityLVD LicenseTÜV Certificate

Spécifications techniques

ELECTRICAL DATA11 items
Max. PV Access Power32000W
Rated AC Input/Output Active Power16000W
Rated AC Input/Output Current72.8/69.6A
Max. AC Input/Output Current80/76.6A
PhaseSingle Phase
Max. PV Input Voltage500V
Start-up Voltage125V
MPPT Voltage Range150-425V
Rated PV Input Voltage370V
FrequencyRated Input/Output Grid Frequency/Range 50/45-55, 60/55-65
Power Factor0.8 leading to 0.8 lagging
MECHANICAL & BUILD1 item
Max. Continuous AC Passthrough100A
PHYSICAL DATA3 items
IP RatingIP65
Working conditions-40~60°C, >45°C derating
Size464 × 763 × 282 mm
CERTIFICATIONS & WARRANTY1 item
Warranty10 years
PACKAGING2 items
Items per pack1
Item Weight54.1 kg
PRODUCT DATA4 items
Order code12693
Product codeSUN-16K-SG01LP1-EU-AM3-P
Release Date17.02.26
BrandDeye

Documents
