CATALOGUE/ONDULEURS HYBRIDES/RÉF 12680

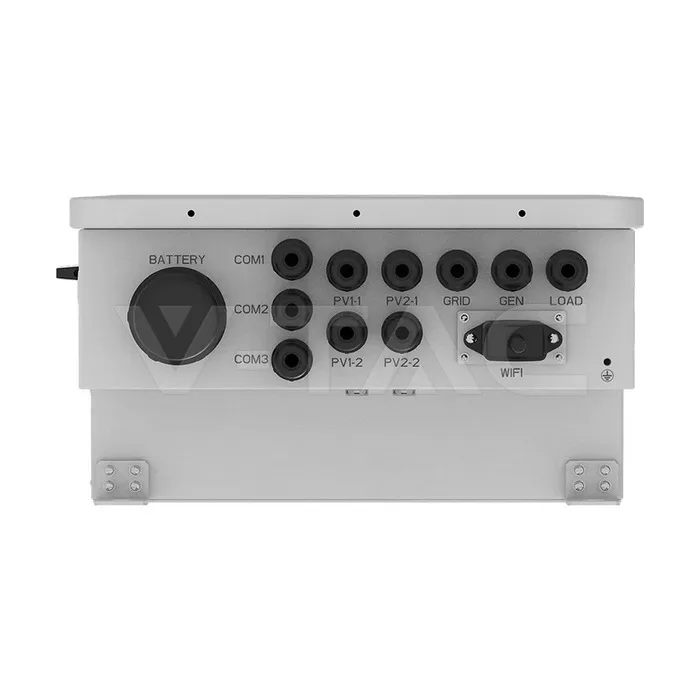

10kW Hybrid Solar Inverter Single Phase 230VAC — view 1
10kW Hybrid Solar Inverter Single Phase 230VAC — view 2
10kW Hybrid Solar Inverter Single Phase 230VAC — view 3
V-TAC · SUN-10KSG02LP1-EUAM3
● EN STOCK · ENTREPÔT DÉLAI

10kW Hybrid Solar Inverter Single Phase 230VAC

10kW Hybrid Solar Inverter Single Phase 230VAC with IP65 protection and an operating range of -40 to +60℃. 10 years; certification on file: Declaration of Conformity, SGS, EMC License and TÜV Certificate.

dès€1,495HT · PRIX CATALOGUE
NiveauVotre prixConditions
Trade€1,495Card · PayPal · Klarna · Apple Pay
Pro€1,420Card · PayPal · Klarna · Apple Pay
Master€1,346Card · PayPal · Klarna · Apple Pay
GARANTIE FABRICANT
10 years
Les conditions propres au fabricant s'appliquent. Nous instruisons la réclamation — voir les conditions de vente.
CERTIFICATION · 4
Declaration of ConformitySGSEMC LicenseTÜV Certificate

Spécifications techniques

ELECTRICAL DATA16 items
Max. Operating PV Input Current32+32+32A
Max. Input Short-Circuit Current60+60+60A
Rated AC Input/Output Current45.5/43.5V
Max. AC Input/Output Current50/47.9A
Max. PV access power20000W
Max. PV input power16000W
Rated AC Input/Output Active Power10000W
PhaseSingle Phase
Max. PV Input Voltage500V
Start-up voltage125V
PV Input Voltage Range125-500V
MPPT Voltage Range150-425V
Full Load MPPT Voltage Range200-425V
Rated PV Input Voltage370V
Rated Input/Output Grid Frequency/Range50Hz/45Hz-55Hz 60Hz/55Hz-65Hz
Power Factor0.8 leading-0.8 lagging
PHYSICAL DATA3 items
IP RatingIP65
Working conditions-40 to +60℃
Size420W x 670H x 233D
CERTIFICATIONS & WARRANTY1 item
Warranty10 years
PACKAGING1 item
Items per box1
PRODUCT DATA4 items
Order code12680
Product codeSUN-10KSG02LP1-EU-AM3
Release Date20.11.25
BrandDeye
