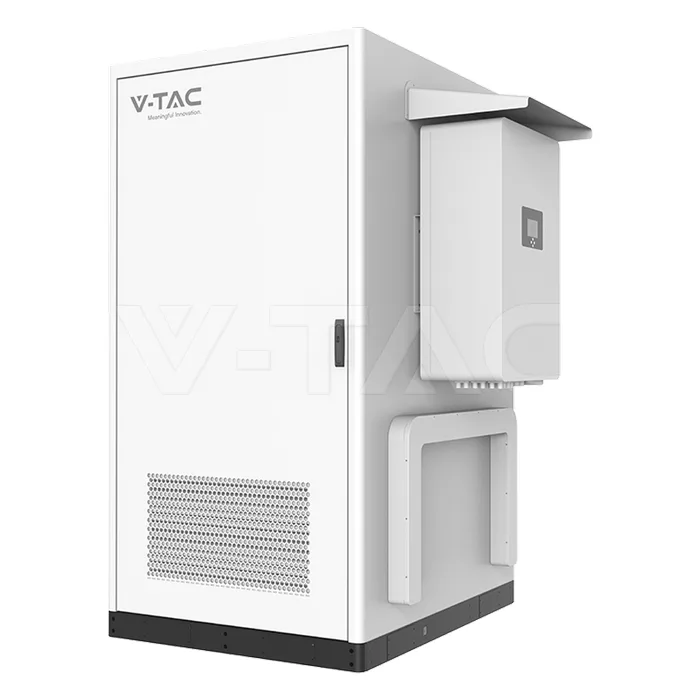

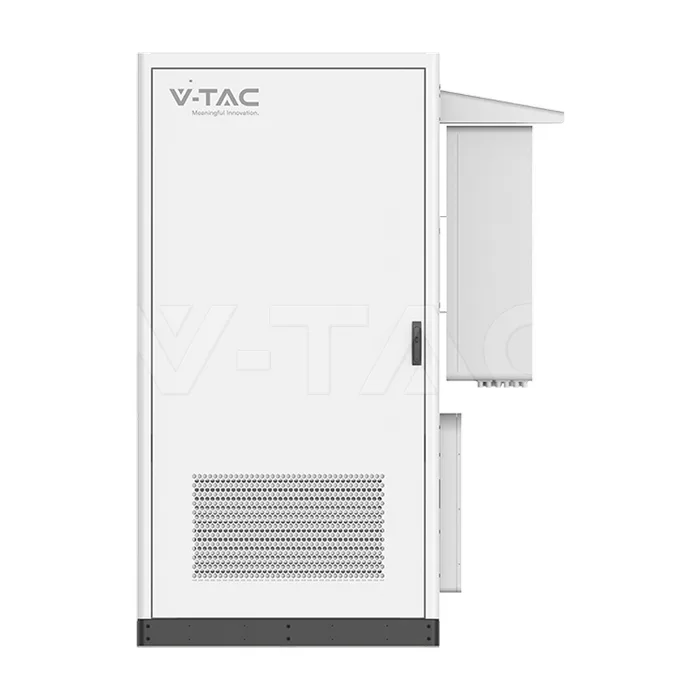

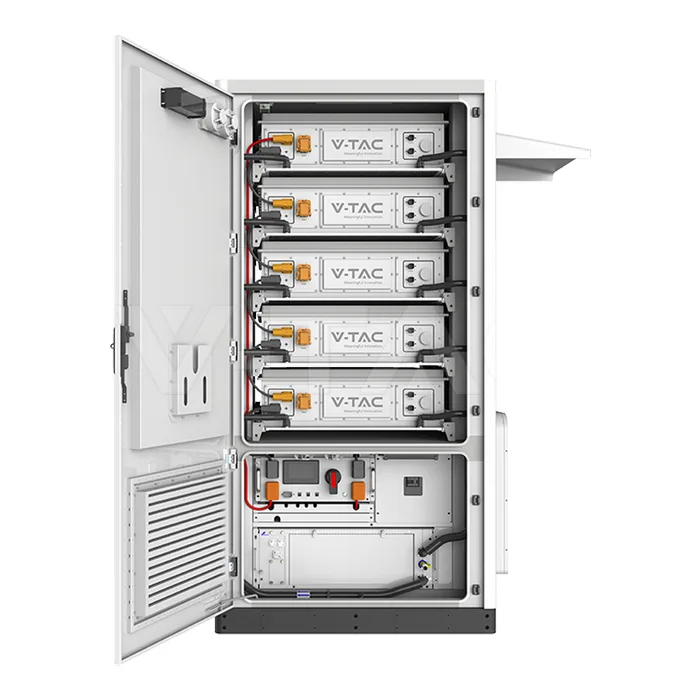

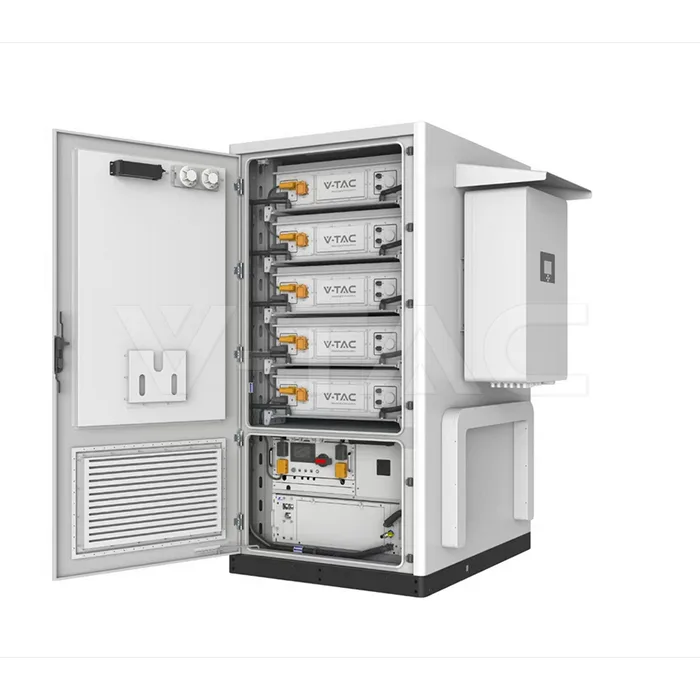

261kWh HV LiFePO4 Energy Storage System Liquid Cooling Oliter IP65

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Prix / disponibilité sur demande

SUR COMMANDE · PAS DE PRIX CATALOGUE PUBLIÉ

Demander prix et disponibilité

GARANTIE

Warranty 10 years

CERTIFICATION

IEC 62619

Spécifications techniques

IEC 62619

General Information

Electrical Data

Wattage 261kWh (52.249 kWh x 5)

Current Recommend Charge/Discharge Current100A; Max. Charge/Discharge Current: 157A;

Voltage System Nominal Voltage832V; System Operating Voltage: 728-949V;

Body Details

Mount On a Rack

Capabilities

IP Rating IP65

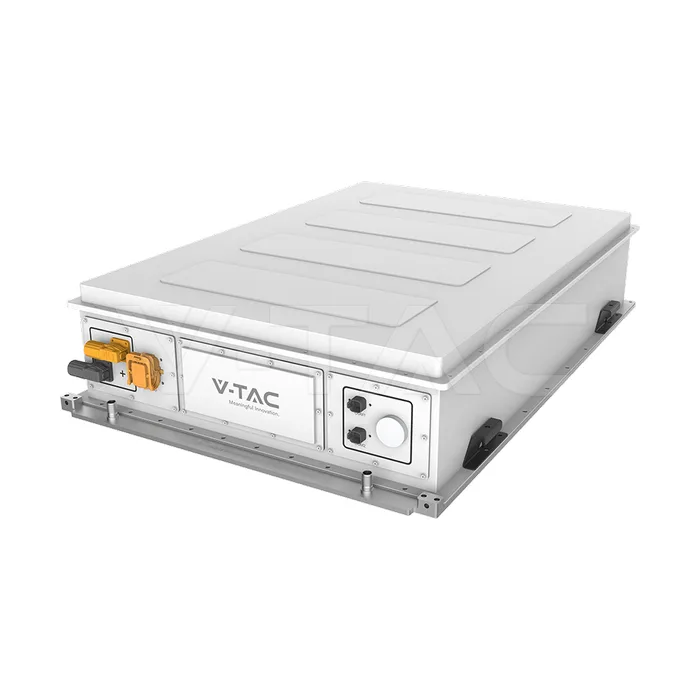

Battery Capacity Module314Ah (LiFePO4)

Working conditions -20 ~ 55°C

Cells Chemistry LiFePO4

Dimensions

Size 1100 x 1400 x 2105 mm (Inverter not included); 1600 x 1400 x 2105 mm (Inverter included);

Product Data

Order code 12676

Product code OHL-261

Item Weight ~2700 kg

Additional

Release Date 21.01.26

Brand V-TAC

Warranty 10 years

Documents

PDF12676-OHL-261-OLITER-IEC-62619.pdfV-TAC · datasheet PDF12676-OHL-261-OLITER-Technical-Specs.pdfV-TAC · datasheet
