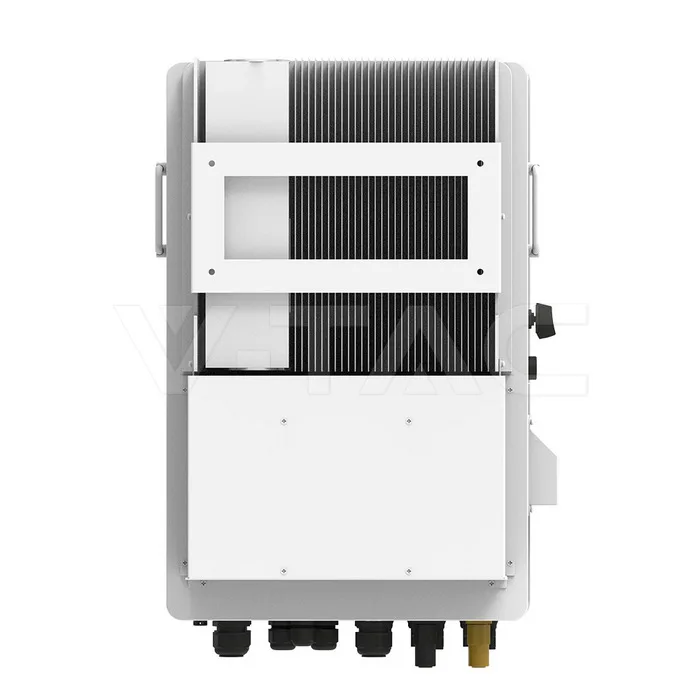

30kW Hybrid Solar Inverter Three Phase 380VAC High Voltage 10-Year Warranty — view 2
30kW Hybrid Solar Inverter Three Phase 380VAC High Voltage 10-Year Warranty — view 3
30kW Hybrid Solar Inverter Three Phase 380VAC High Voltage 10-Year Warranty — view 4
V-TAC · SUN-30K-SG02HP3-EU-AM3
● SUR DEMANDE · VÉRIFIER LA DISPONIBILITÉ

30kW Hybrid Solar Inverter Three Phase 380VAC High Voltage 10-Year Warranty

30kW Hybrid Solar Inverter Three Phase 380VAC with IP65 protection and an operating range of -40 to +60℃. 10 years; certification on file: Declaration of Conformity, EMC License and LVD License.

Prix / disponibilité sur demande
SUR COMMANDE · PAS DE PRIX CATALOGUE PUBLIÉ
GARANTIE FABRICANT
10 years
Les conditions propres au fabricant s'appliquent. Nous instruisons la réclamation — voir les conditions de vente.
CERTIFICATION · 3
Declaration of ConformityEMC LicenseLVD License

Spécifications techniques

ELECTRICAL DATA14 items
Max. PV access power60000W
Max. PV input power48000W
Rated AC Input/Output Active Power30000W
Max. Operating PV Input Current36+36+36A
Max. Input Short-Circuit Current54+54+54A
Rated AC Input/Output Current45.5/43.5V
Max. AC Input/Output Current50/47.9A
PhaseThree Phase
Max. PV Input Voltage1000V
Start-up voltage180V
MPPT Voltage Range150-850V
Rated PV Input Voltage600V
Rated Input/Output Grid Frequency/Range50/45-55, 60/55-65 Hz
Power Factor0.8 leading-0.8 lagging
PHYSICAL DATA3 items
IP RatingIP65
Working conditions-40 to +60℃
Size448 x 688 x 270 mm
CERTIFICATIONS & WARRANTY1 item
Warranty10 years
PACKAGING1 item
Items per box1
PRODUCT DATA4 items
Order code12665
Product codeSUN-30K-SG02HP3-EU-AM3
Release Date10.12.25
BrandDeye
