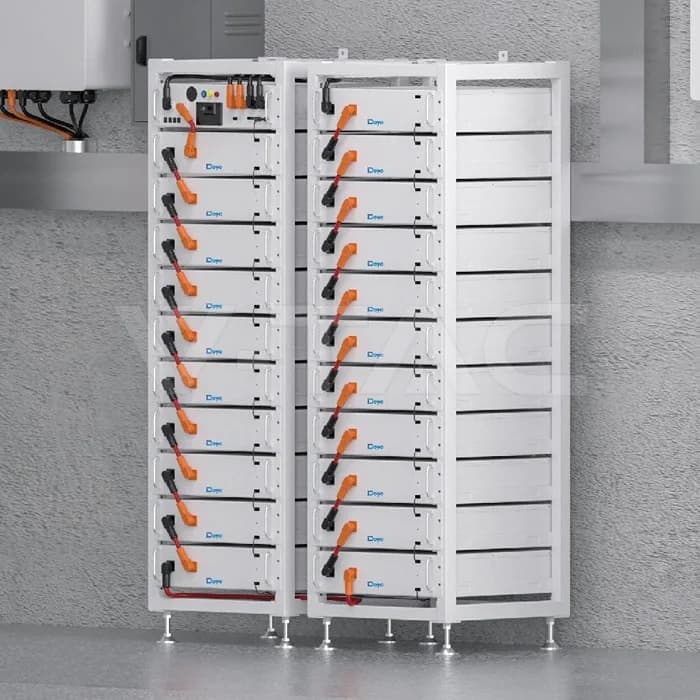

161.28kWh HV LiFePO4 Battery System Deye IP20 BOS-A — view 1

V-TAC · BOS-A

● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

161.28kWh HV LiFePO4 Battery System Deye IP20 BOS-A

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Prix / disponibilité sur demande

SUR COMMANDE · PAS DE PRIX CATALOGUE PUBLIÉ

Demander prix et disponibilité

GARANTIE

Warranty Conditions

CERTIFICATION

Certificate of Conformity

Spécifications techniques

Manual

SGS

Certificate of Conformity

IEC 62619

Technical Specifications |

CEI 0-21 |

Expansion and Use Statement

Warranty Conditions

General Information

Electrical Data

Wattage 161.28kWh (7.68kWh x 21)

Current Nominal Charge/Discharge Current160A

Voltage System Nominal Voltage806.4V

Body Details

Mount On a Rack

Capabilities

Battery Capacity Module200Ah (LiFePO4)

Working conditions Operating Temperature(Charge)0 +55°C; Operating Temperature(Discharge): -20 +55°C;

IP Rating IP20

Cells Chemistry LiFePO4

Dimensions

Size (610 x 610 x 1900 mm) x 2

Product Data

Order code 12657

Product code BOS-A

Item Weight 1586 kg

Additional

Release Date 15.08.25

Warranty 10 years

Additional information ModelBOS-A160; System energy (kWh): 161.28; Rated DC Power (kW): 129.02; Discharge Depth: 90%; Composition: BOS-A-Pack 7.68 * 21 + BOS-A-PDU-2 * 1;

Brand Deye

Documents
