CATALOGUE/ONDULEURS HYBRIDES/RÉF 12655
12kW Hybrid Solar Inverter Three Phase 380VAC SG05 — view 1
12kW Hybrid Solar Inverter Three Phase 380VAC SG05 — view 2

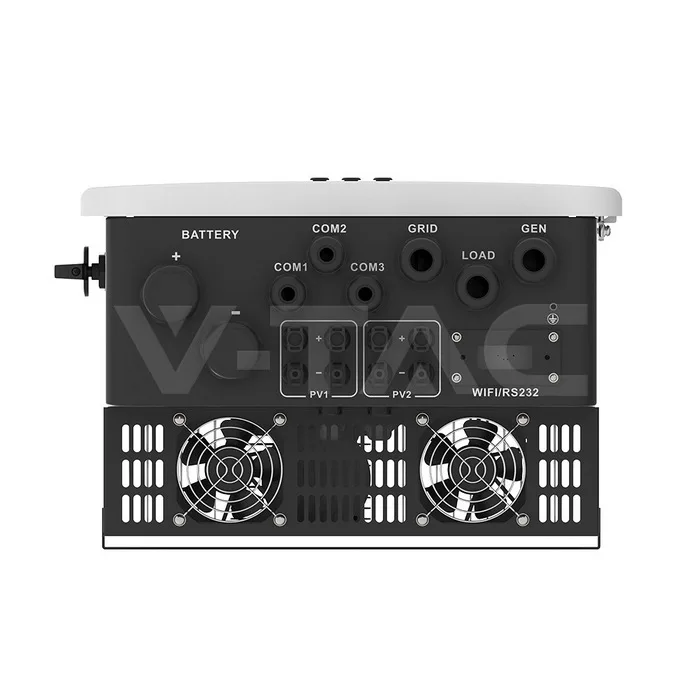

12kW Hybrid Solar Inverter Three Phase 380VAC SG05 — view 3
V-TAC · SUN-12K-SG05 LP3-EU-SM2
● EN STOCK · ENTREPÔT DÉLAI

12kW Hybrid Solar Inverter Three Phase 380VAC SG05

12kW Hybrid Solar Inverter Three Phase 380VAC SG05 with IP65 protection and an operating range of -40 to +60℃, >45℃ Derating. 10 years; certification on file: Declaration of Conformity, Certificate of Conformity, EMC License and LVD License.

dès€1,677HT · PRIX CATALOGUE
NiveauVotre prixConditions
Trade€1,677Card · PayPal · Klarna · Apple Pay
Pro€1,593Card · PayPal · Klarna · Apple Pay
Master€1,509Card · PayPal · Klarna · Apple Pay
GARANTIE FABRICANT
10 years
Les conditions propres au fabricant s'appliquent. Nous instruisons la réclamation — voir les conditions de vente.
CERTIFICATION · 5
Declaration of ConformityCertificate of ConformityEMC LicenseLVD LicenseTÜV Certificate

Spécifications techniques

ELECTRICAL DATA11 items
CurrentMax. Operating PV Input Current (A) 26+26 Max. Input Short-Circuit Current (A) 39+39; Rated AC Input/Output Current (A) 18.2/17.4; Max. AC Input/Output Current (A) 20/19.2
Max. PV Input Power19200W
Rated AC Input/Output Active Power12000W
Peak Power (off-grid)2 times of rated power, 10s
PhaseThree Phase
Max. PV Input Voltage800V
MPPT Range200~650V
Rated PV Input Voltage550V
Start-up Voltage160V
FrequencyRated Input/Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65
Power Factor0.8 leading to 0.8 lagging
PHYSICAL DATA3 items
IP RatingIP65
Working conditions-40 to +60℃, >45℃ Derating
Size386 x 660 x 250 mm
CERTIFICATIONS & WARRANTY1 item
Warranty10 years
PACKAGING1 item
Item Weight35.2 kg
PRODUCT DATA4 items
Order code12655
Product codeSUN-12K-SG05 LP3-EU-SM2
Release Date05.11.25
BrandDeye

Documents
