CATALOGUE/ONDULEURS HYBRIDES/RÉF 12654
5kW Hybrid Solar Inverter Three Phase 380VAC — view 1
5kW Hybrid Solar Inverter Three Phase 380VAC — view 2

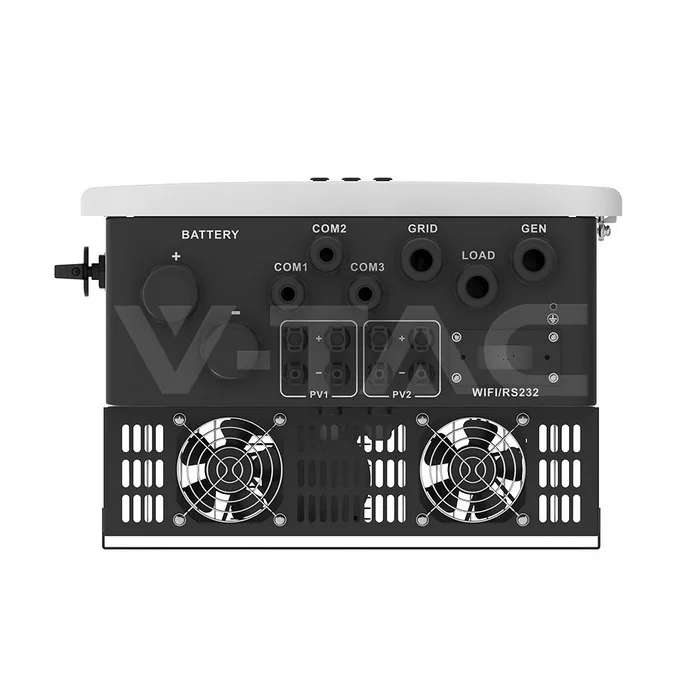

5kW Hybrid Solar Inverter Three Phase 380VAC — view 3
V-TAC · SUN-5K-SG05LP3-EU-SM2
● EN STOCK · ENTREPÔT DÉLAI

5kW Hybrid Solar Inverter Three Phase 380VAC

5kW Hybrid Solar Inverter Three Phase 380VAC with IP65 protection and an operating range of -40 to +60℃, >45℃ Derating. Certification on file: Declaration of Conformity, Certificate of Conformity, EMC License and LVD License.

dès€1,560HT · PRIX CATALOGUE
NiveauVotre prixConditions
Trade€1,560Card · PayPal · Klarna · Apple Pay
Pro€1,482Card · PayPal · Klarna · Apple Pay
Master€1,404Card · PayPal · Klarna · Apple Pay
GARANTIE FABRICANT
Manufacturer warranty · V-TAC
Les conditions propres au fabricant s'appliquent. Nous instruisons la réclamation — voir les conditions de vente.
CERTIFICATION · 5
Declaration of ConformityCertificate of ConformityEMC LicenseLVD LicenseTÜV Certificate

Spécifications techniques

ELECTRICAL DATA11 items
Max. PV Input Power8000W
Rated AC Input/Output Active Power5000W
Peak Power (off-grid)2 times of rated power, 10s
CurrentMax. Operating PV Input Current (A) 20+20 Max. Input Short-Circuit Current (A) 30+30; Rated AC Input/Output Current (A) 7.6/7.3; Max. AC Input/Output Current (A) 8.4/8
PhaseThree Phase
Max. PV Input Voltage800V
MPPT Range200~650V
Rated PV Input Voltage550V
Start-up Voltage160V
FrequencyRated Input/Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65
Power Factor0.8 leading to 0.8 lagging
PHYSICAL DATA3 items
IP RatingIP65
Working conditions-40 to +60℃, >45℃ Derating
Size386 x 660 x 250 mm
PACKAGING1 item
Item Weight35.2 kg
PRODUCT DATA4 items
Order code12654
Product codeSUN-5K-SG05LP3-EU-SM2
Release Date06.01.26
BrandDeye

Documents
