CATALOGUE/ONDULEURS HYBRIDES/RÉF 12344
3.6kW Hybrid Solar Inverter Single Phase 230VAC — view 1

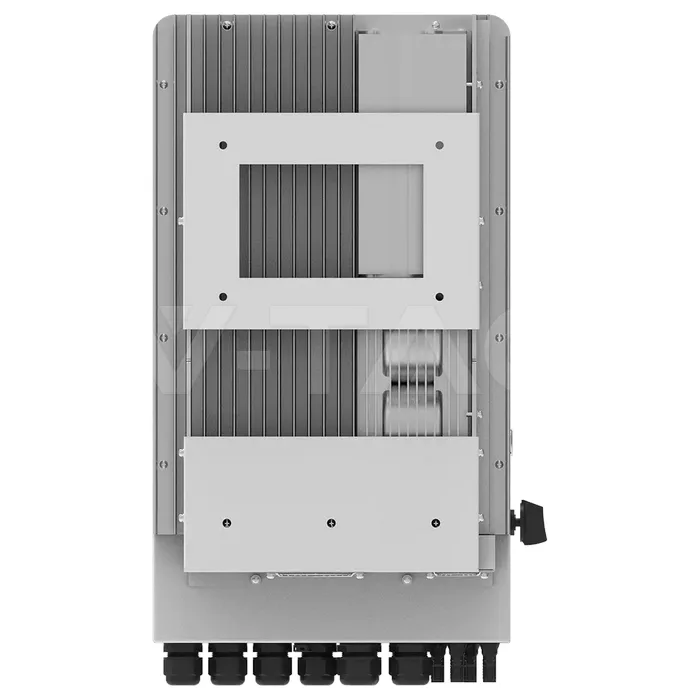

3.6kW Hybrid Solar Inverter Single Phase 230VAC — view 2

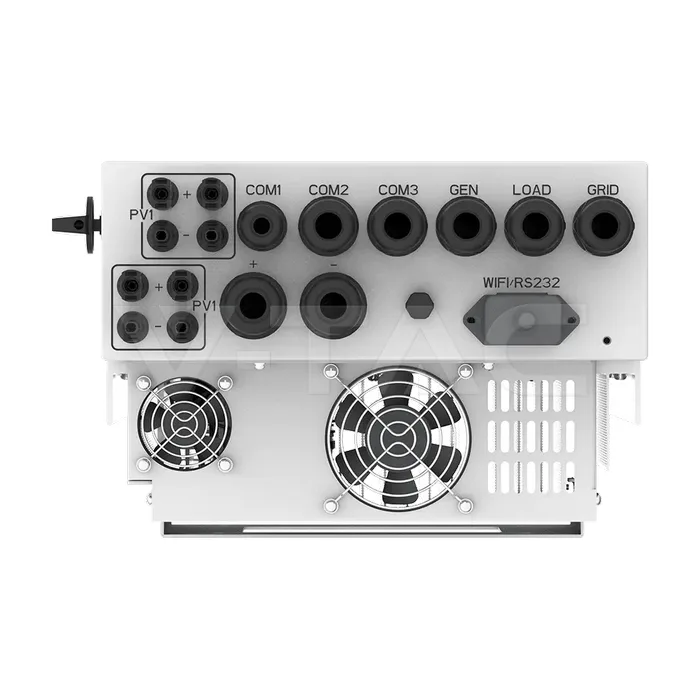

3.6kW Hybrid Solar Inverter Single Phase 230VAC — view 3
V-TAC · SUN-3.6K-SG05LP1-EU-AM2-P
● SUR DEMANDE · VÉRIFIER LA DISPONIBILITÉ

3.6kW Hybrid Solar Inverter Single Phase 230VAC

3.6kW Hybrid Solar Inverter Single Phase 230VAC with IP65 protection and an operating range of -40°C to +60°C, >45°C Derating. 10 years; certification on file: Declaration of Conformity, VDE Certificate, Certificate of Conformity and EMC License.

dès€759HT · PRIX CATALOGUE
NiveauVotre prixConditions
Trade€759Card · PayPal · Klarna · Apple Pay
Pro€721Card · PayPal · Klarna · Apple Pay
Master€683Card · PayPal · Klarna · Apple Pay
GARANTIE FABRICANT
10 years
Les conditions propres au fabricant s'appliquent. Nous instruisons la réclamation — voir les conditions de vente.
CERTIFICATION · 4
Declaration of ConformityVDE CertificateCertificate of ConformityEMC License

Spécifications techniques

ELECTRICAL DATA12 items
Rated AC Input/Output Active Power3600W
Max. PV Access Power7200W
Max PV Input Power5760W
Max Input Short-Circuit Current27+27A
Max Operating PV Input Current18+18A Rated AC Input/Output Current: 16.4/15.7A
Max AC Input/Output Current18/17.2A
PhaseSingle Phase
Rated PV Input Voltage370V
MPPT Range150-425
Max PV Input Voltage500V
Start-up Voltage125V
Power Factor0.8 leading to 0.8 lagging
PHYSICAL DATA3 items
Working conditions-40°C to +60°C, >45°C Derating
IP RatingIP65
Size330 x 580 x 232 mm
CERTIFICATIONS & WARRANTY1 item
Warranty10 years
PACKAGING2 items
Items per pack1
Item Weight24.9 kg
PRODUCT DATA4 items
Order code12344
Product codeSUN-SG05LP1-EU-AM2-P
Release Date25.07.25
BrandDeye
