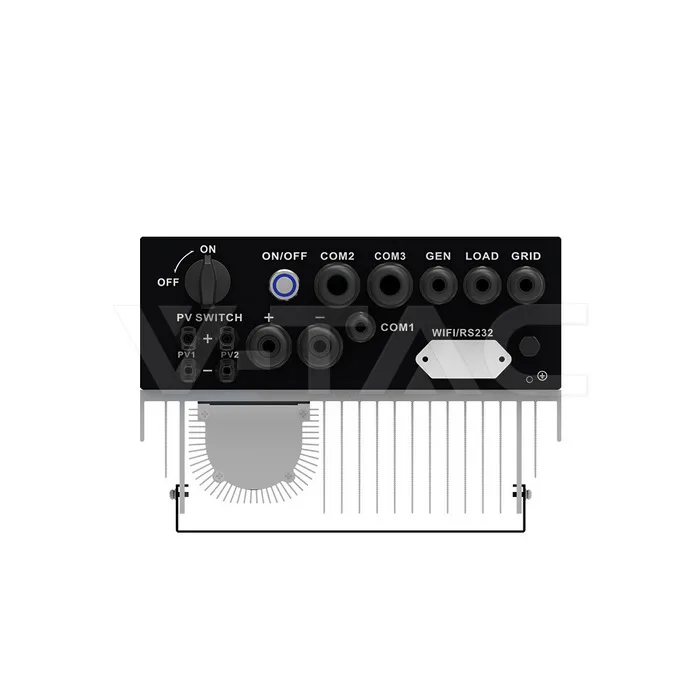

5kW Hybrid Solar Inverter Single Phase 230VAC Black Series — view 3

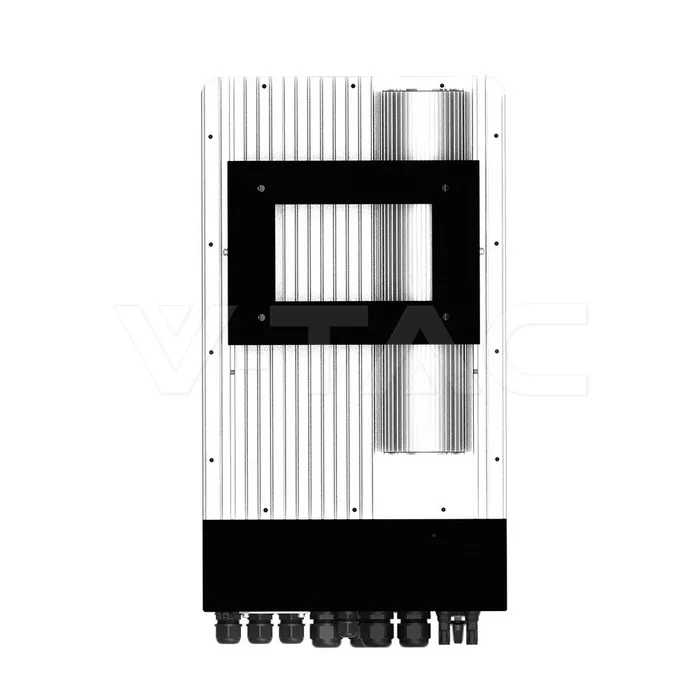

5kW Hybrid Solar Inverter Single Phase 230VAC Black Series — view 4
V-TAC · SUN-5K-SG03LP1 -EU
● SUR DEMANDE · VÉRIFIER LA DISPONIBILITÉ

5kW Hybrid Solar Inverter Single Phase 230VAC Black Series

5kW Hybrid Solar Inverter Single Phase EU Specification with IP65 protection and an operating range of -40~60°C, >45°C derating. 10 years; certification on file: Declaration of Conformity, EMC License and LVD License.

dès€793HT · PRIX CATALOGUE
NiveauVotre prixConditions
Trade€793Card · PayPal · Klarna · Apple Pay
Pro€753Card · PayPal · Klarna · Apple Pay
Master€714Card · PayPal · Klarna · Apple Pay
GARANTIE FABRICANT
10 years
Les conditions propres au fabricant s'appliquent. Nous instruisons la réclamation — voir les conditions de vente.
CERTIFICATION · 3
Declaration of ConformityEMC LicenseLVD License

Spécifications techniques

ELECTRICAL DATA13 items
Max. DC Input Power6500W
Rated AC Output and UPS Power5000W
Max. AC Output Power5500W
PV Input Current13+13A
AC Output Rated Current25/23.9A
Max. AC Current22.7/21.7
Rated PV Input Voltage370 (125~500)
Start-up Voltage125V
MPPT Voltage Range150-425V
Full Load DC Voltage Range300-425V
Frequency50/60Hz
Power Factor0.8 leading to 0.8 lagging
PhaseSingle Phase
MECHANICAL & BUILD2 items
Max. PV ISC17+17A
Max. Continuous AC Passthrough35A
PHYSICAL DATA3 items
Working conditions-40~60°C, >45°C derating
IP RatingIP65
Size330W x 580H x 232D
CERTIFICATIONS & WARRANTY1 item
Warranty10 years
PACKAGING1 item
Item Weight24 kg
PRODUCT DATA4 items
Order code12309
Product codeSUN-5K-SG03LP1 -EU
Release Date13.05.25
BrandDeye

Documents

PDF11547-CE.pdfV-TAC · datasheetPDF11547-EMC-BL-DG2251011D03 BL-DG2251011D04.pdfV-TAC · datasheetPDF11547-LVD-BL-DG2250169D02.pdfV-TAC · datasheetPDFCEI-021-22-404-00-2022-12-15-SKUs-11529-11539-11547.pdfV-TAC · datasheetPDFCEI-021-23-028-00-2023-01-18-SKUs-11447-11529-11547.pdfV-TAC · datasheetPDFDC-SUN-3.6KW-6KW-SG03LP1-EU-Declaration.pdfV-TAC · datasheetPDFDeclaration-of-conformity-with-CEI-0-21-SG03LP1.pdfV-TAC · datasheetPDFDeye-SUN-Series-Hybrid-Inverter-10-Year-Limited-Warranty-for-Installation-in-Europe.pdfV-TAC · datasheetPDFDeye_Self Declaration of Conformity_IT_VTAC.pdfV-TAC · datasheetPDFNing_Sun-3-6K_VT-12040-1_GCC_CEI_021_ita_24-422-00 (1).pdfV-TAC · datasheetPDFNing_Sun-3-6K_VT-48160_GCC_CEI_021_ita_24-057-00.pdfV-TAC · datasheetPDFSKU-11547-5 kWh.pdfV-TAC · datasheetPDFWarranty-Inverters-Deye.pdfV-TAC · datasheetPDF11529-11547-11725-instructions.pdfV-TAC · external
