CATALOGUE/ONDULEURS HYBRIDES/RÉF 12300
40kW Hybrid Solar Inverter Three Phase High Voltage — view 1

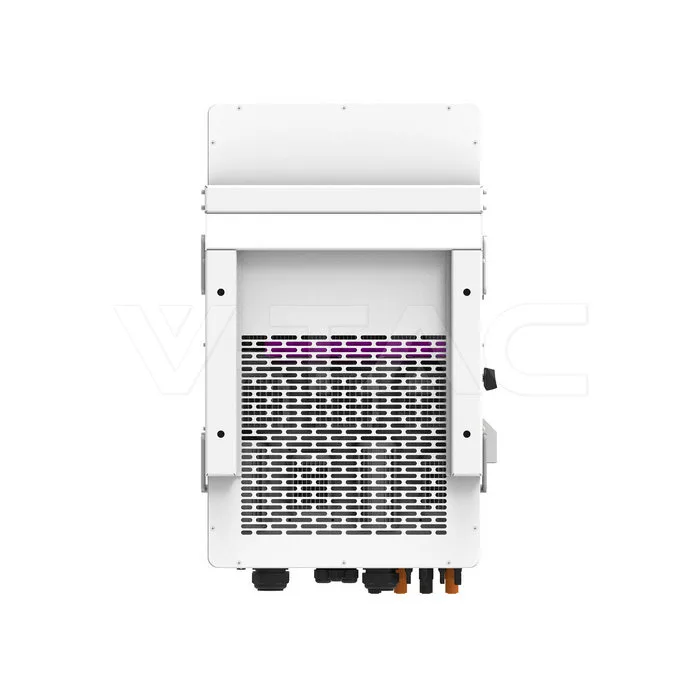

40kW Hybrid Solar Inverter Three Phase High Voltage — view 2

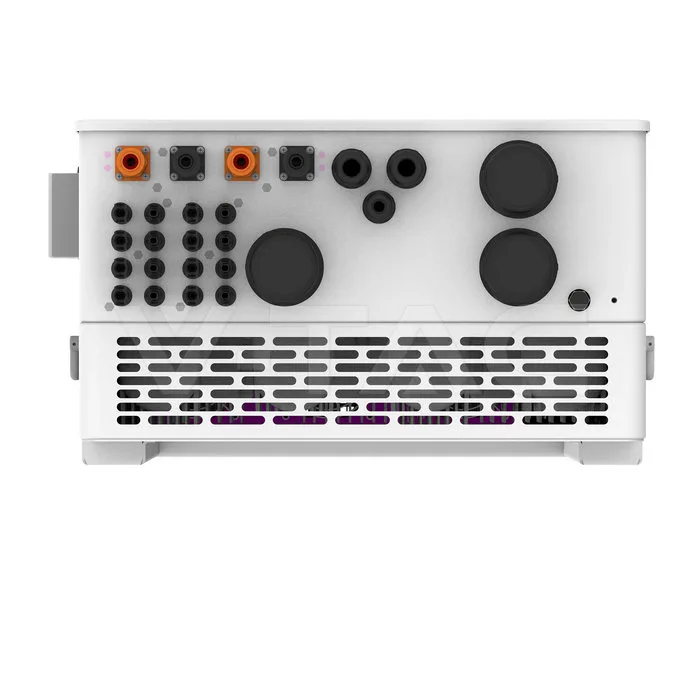

40kW Hybrid Solar Inverter Three Phase High Voltage — view 3
40kW Hybrid Solar Inverter Three Phase High Voltage — view 4
V-TAC · SUN-40K-SG01HP3-EU-BM4
● SUR DEMANDE · VÉRIFIER LA DISPONIBILITÉ

40kW Hybrid Solar Inverter Three Phase High Voltage

40kW Hybrid Solar Inverter Three Phase High Voltage with IP65 protection. 10 years; certification on file: Declaration of Conformity, EMC License and LVD License.

dès€3,835HT · PRIX CATALOGUE
NiveauVotre prixConditions
Trade€3,835Card · PayPal · Klarna · Apple Pay
Pro€3,643Card · PayPal · Klarna · Apple Pay
Master€3,452Card · PayPal · Klarna · Apple Pay
GARANTIE FABRICANT
10 years
Les conditions propres au fabricant s'appliquent. Nous instruisons la réclamation — voir les conditions de vente.
CERTIFICATION · 3
Declaration of ConformityEMC LicenseLVD License

Spécifications techniques

ELECTRICAL DATA10 items
Max. Input Power52000W
Rated AC Output Active Power40000W
Max. Charging Current(A)50+50
Max. Discharging Current (A)50+50 PV Input Current (A): 36+36+36+36
Max. DC Input Voltage (V)1000
MPPT Range150-850
Start-up Voltage180V
Frequency50/60Hz
Power Factor0.8 leading to 0.8 lagging
PhaseThree Phase
PHYSICAL DATA1 item
IP RatingIP65
CERTIFICATIONS & WARRANTY1 item
Warranty10 years
PACKAGING1 item
Items per pack1
PRODUCT DATA4 items
Order code12300
Product codeSUN-40K-SG01HP3-EU-BM4
Release Date07.01.2025
BrandDeye

Documents
