CATALOGUE/ONDULEURS HYBRIDES/RÉF 12292
10kW Hybrid Solar Inverter Three Phase 380VAC — view 1
10kW Hybrid Solar Inverter Three Phase 380VAC — view 2
10kW Hybrid Solar Inverter Three Phase 380VAC — view 3

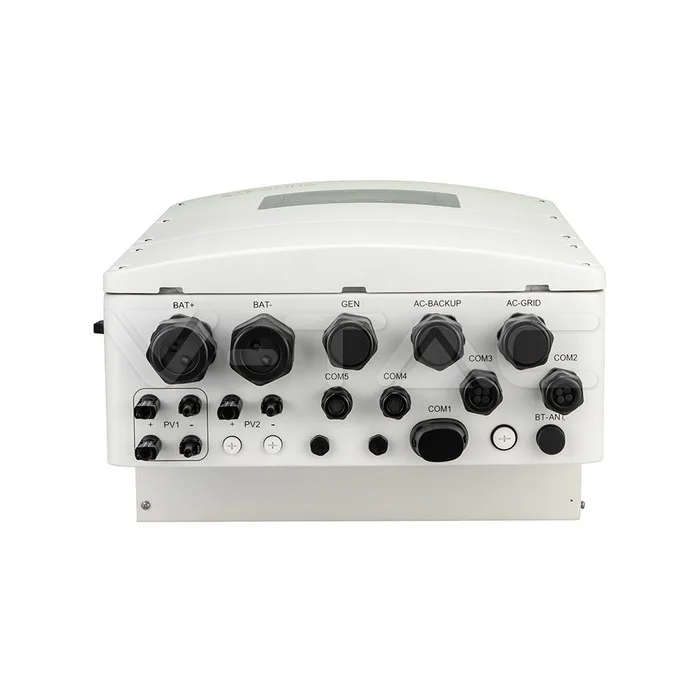

10kW Hybrid Solar Inverter Three Phase 380VAC — view 4
10kW Hybrid Solar Inverter Three Phase 380VAC — view 5

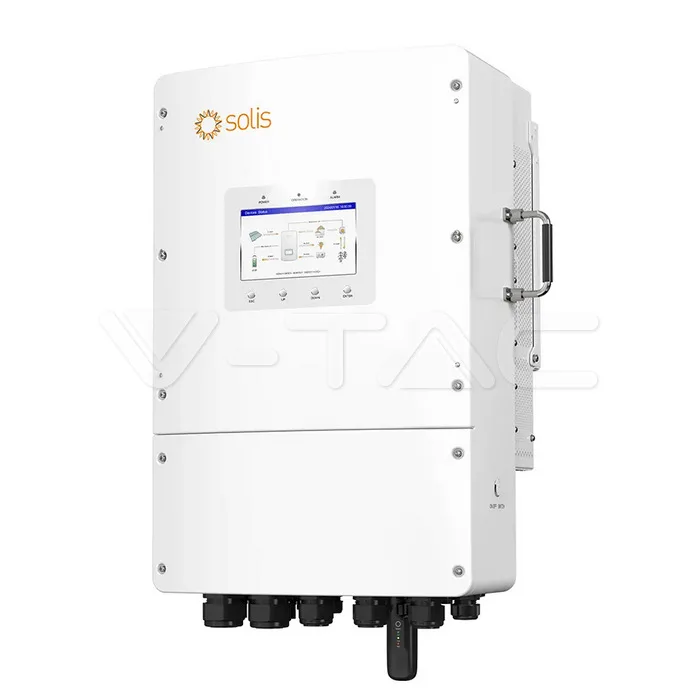

10kW Hybrid Solar Inverter Three Phase 380VAC — view 6
10kW Hybrid Solar Inverter Three Phase 380VAC — view 7

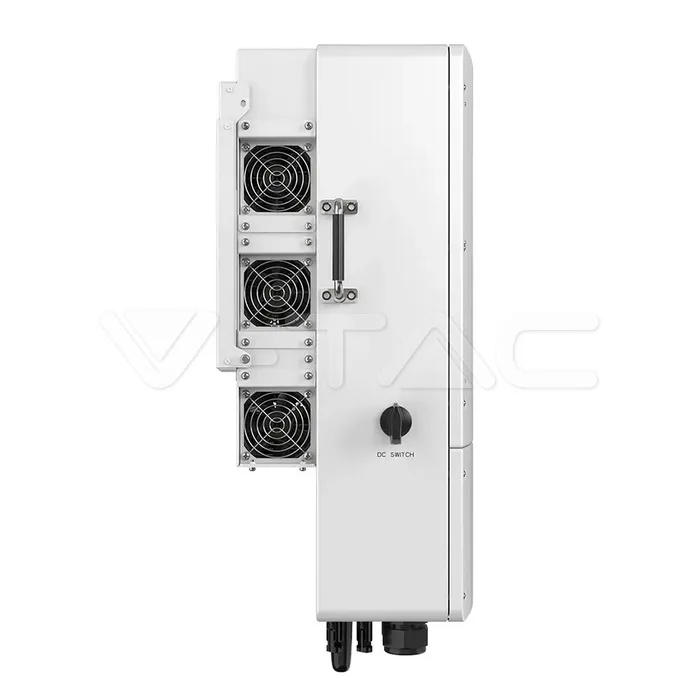

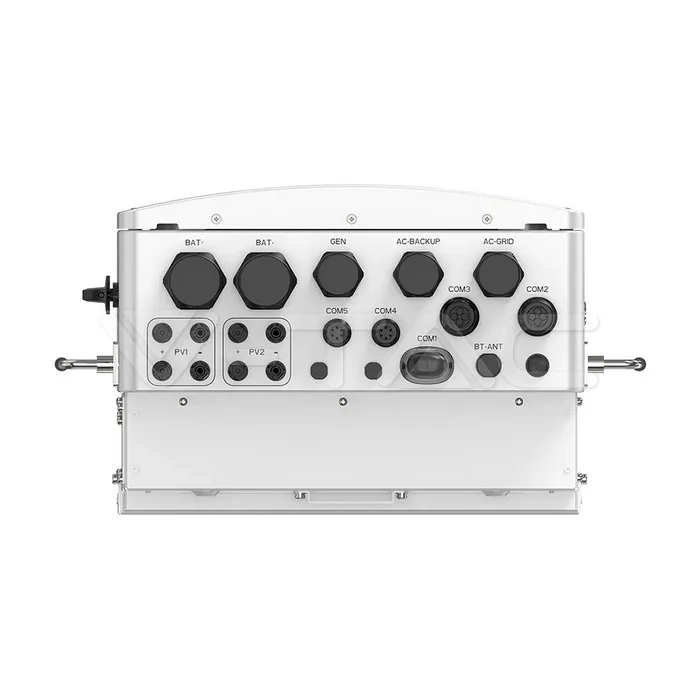

10kW Hybrid Solar Inverter Three Phase 380VAC — view 8
V-TAC · S6-EH3P10K02-NV-YD-L
● SUR DEMANDE · VÉRIFIER LA DISPONIBILITÉ

10kW Hybrid Solar Inverter Three Phase 380VAC

10kW Hybrid Solar Inverter Three Phase 380VAC with IP66 protection and an operating range of -40 to +60℃. 10 years; certification on file: EMC License, LVD License and RED.

dès€1,677HT · PRIX CATALOGUE
NiveauVotre prixConditions
Trade€1,677Card · PayPal · Klarna · Apple Pay
Pro€1,593Card · PayPal · Klarna · Apple Pay
Master€1,509Card · PayPal · Klarna · Apple Pay
GARANTIE FABRICANT
10 years
Les conditions propres au fabricant s'appliquent. Nous instruisons la réclamation — voir les conditions de vente.
CERTIFICATION · 3
EMC LicenseLVD LicenseRED

Spécifications techniques

ELECTRICAL DATA13 items
Max. usable PV input power16kW
Max. PV Input Current20A / 40A
Max. PV Short circuit current30A / 50A
Max. charge / discharge current220V
Max. AC output current (Grid Side)15.2A / 14.4A
Max. Input current (Grid Side)22.8A / 21.7A
Max. PV Input Voltage1000V
MPPT Voltage Range200-850V
Start-up voltage160V
Rated grid voltage380V / 400V
Rated grid frequency50Hz / 60Hz
Power Factor> 0.99 (0.8 leading - 0.8 lagging)
PhaseThree Phase
MECHANICAL & BUILD1 item
AC Grid (output)Rated Power: 10kW
PHYSICAL DATA3 items
Working conditions-40 to +60℃
IP RatingIP66
Size430 x 660 x 305 mm
CERTIFICATIONS & WARRANTY1 item
Warranty10 years
PACKAGING1 item
Items per box1
PRODUCT DATA4 items
Order code12292
Product codeS6-EH3P10K02-NV-YD-L
Release Date04.02.25
BrandSOLIS

Documents
