CATALOGUE/ONDULEURS HYBRIDES/RÉF 12291
8kW Hybrid Solar Inverter Single Phase 10yrs Warranty — view 1
8kW Hybrid Solar Inverter Single Phase 10yrs Warranty — view 2

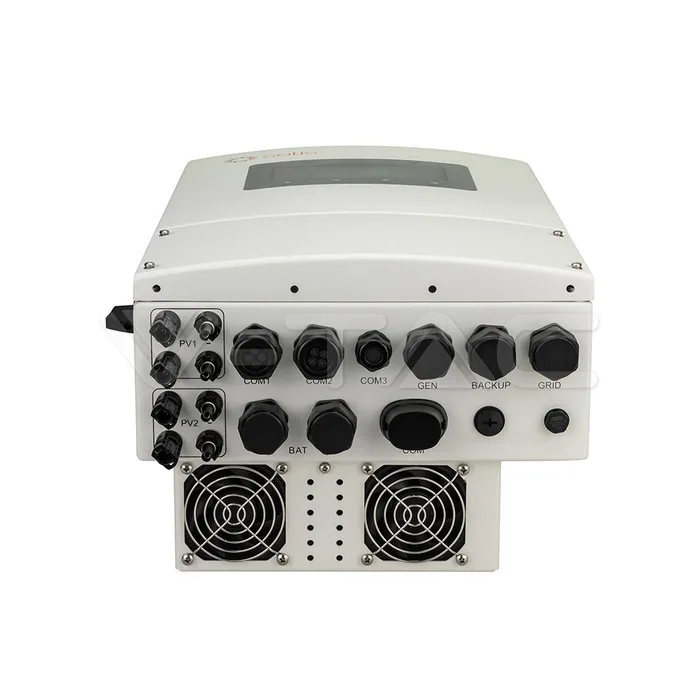

8kW Hybrid Solar Inverter Single Phase 10yrs Warranty — view 3
V-TAC · S6-EH1P8K-L-PLUS
● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

8kW Hybrid Solar Inverter Single Phase 10yrs Warranty

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Prix / disponibilité sur demande
SUR COMMANDE · PAS DE PRIX CATALOGUE PUBLIÉ
GARANTIE
Warranty 10 years
CERTIFICATION
EN 50549

Spécifications techniques

Manual
Compatibility list
EN 50549
EMC License
LVD License
RED
CEI 0-21
Service Manual
General Information
Electrical Data
Wattage Max. usable PV input power12.8kW; AC Grid (output): Rated Power: 8kW;
Current Max. PV Input Current32A / 32A; Max. PV Short circuit current: 40A / 40A; Max. charge / discharge current: 190V; Max. AC output current (Grid Side): 36.4A / 34.8A; Max. Input current (Grid Side): 50A;
Voltage Max. PV Input Voltage500V ; MPPT Voltage Range: 90-435V; Start-up voltage: 90V; Rated grid voltage: 220V / 230V;
Frequency Rated grid frequency50Hz / 60Hz
Power Factor > 0.99 (0.8 leading - 0.8 lagging)
Phase Single Phase
Capabilities
Working conditions `-40 to +60℃
IP Rating IP66
Dimensions
Size 335 x 560 x 253 mm
Product Data
Order code 12291
Product code S6-EH1P8K-L-PLUS
Items per box 1
Additional
Release Date 04.02.25
Warranty 10 years
Brand SOLIS

Documents
