CATALOGUE/ONDULEURS HYBRIDES/RÉF 12229

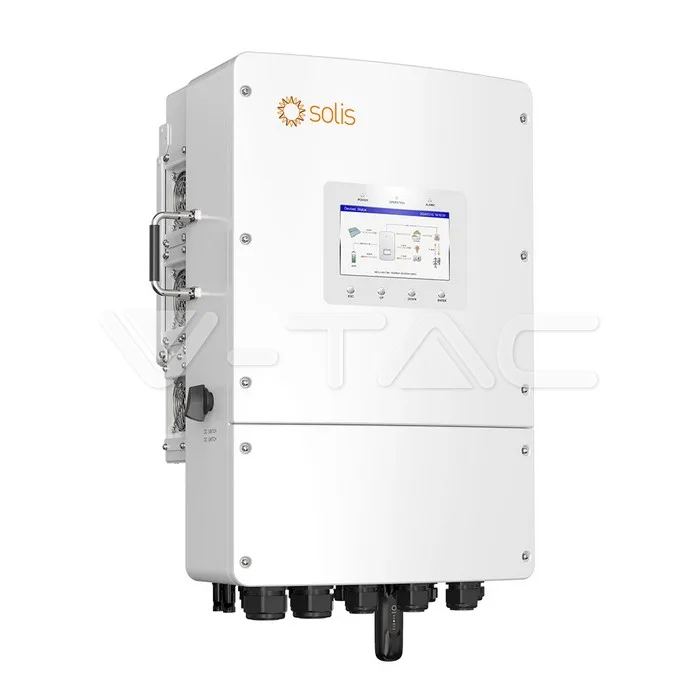

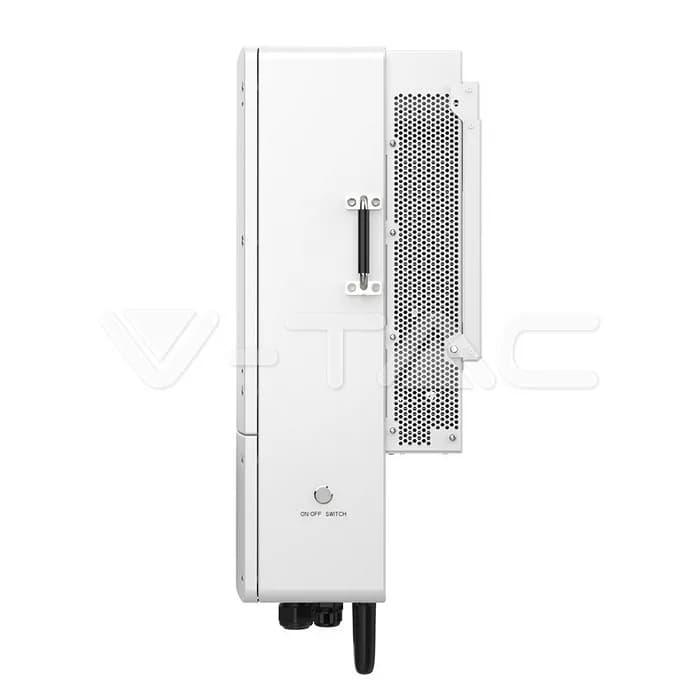

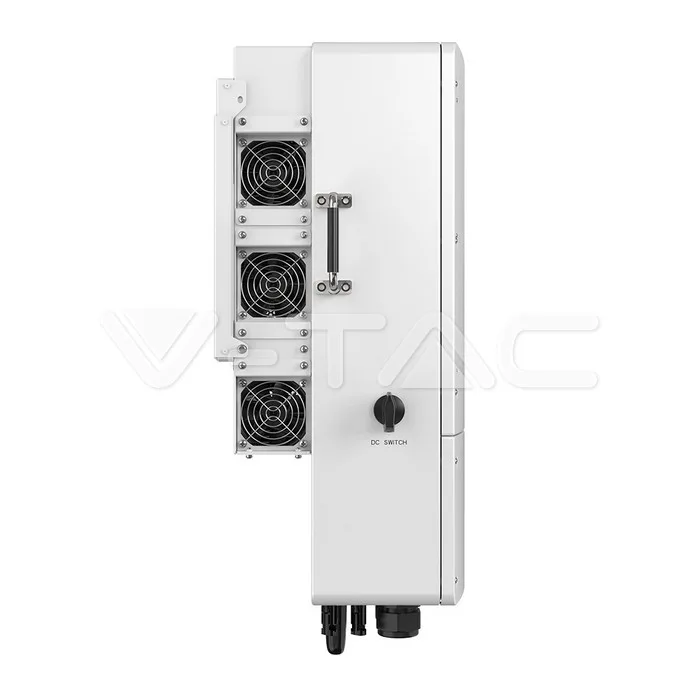

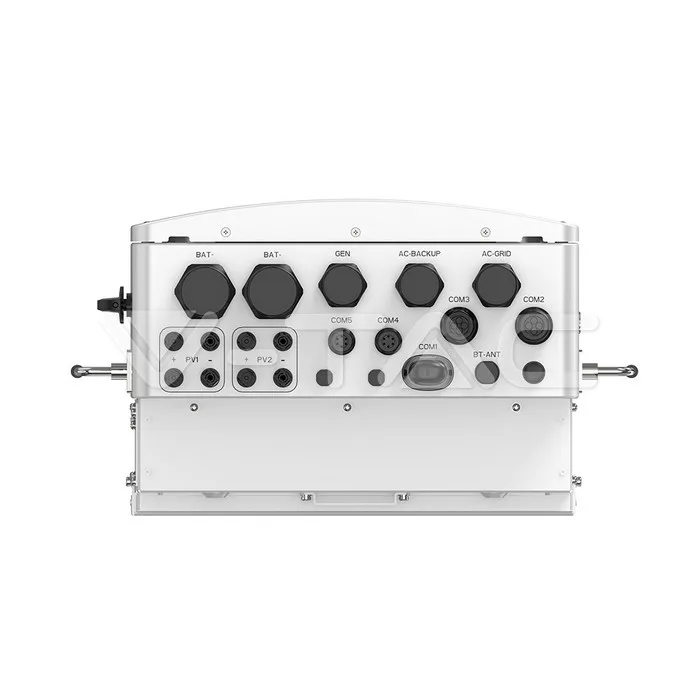

SOLIS 15kW Hybrid Solar Inverter Three Phase Low Voltage — view 1
SOLIS 15kW Hybrid Solar Inverter Three Phase Low Voltage — view 2
SOLIS 15kW Hybrid Solar Inverter Three Phase Low Voltage — view 3
SOLIS 15kW Hybrid Solar Inverter Three Phase Low Voltage — view 4
SOLIS 15kW Hybrid Solar Inverter Three Phase Low Voltage — view 5
SOLIS 15kW Hybrid Solar Inverter Three Phase Low Voltage — view 6
SOLIS 15kW Hybrid Solar Inverter Three Phase Low Voltage — view 7
SOLIS 15kW Hybrid Solar Inverter Three Phase Low Voltage — view 8
V-TAC · S6-EH3P15K02-NV-YD-L
● EN STOCK · ENTREPÔT DÉLAI

SOLIS 15kW Hybrid Solar Inverter Three Phase Low Voltage

15kW Hybrid Solar Inverter Three Phase Low Voltage with IP66 protection and an operating range of -40 ~ +60°C. 10 years; certification on file: EMC License and LVD License.

dès€1,937HT · PRIX CATALOGUE
NiveauVotre prixConditions
Trade€1,937Card · PayPal · Klarna · Apple Pay
Pro€1,840Card · PayPal · Klarna · Apple Pay
Master€1,743Card · PayPal · Klarna · Apple Pay
GARANTIE FABRICANT
10 years
Les conditions propres au fabricant s'appliquent. Nous instruisons la réclamation — voir les conditions de vente.
CERTIFICATION · 2
EMC LicenseLVD License

Spécifications techniques

ELECTRICAL DATA12 items
Max. input current40A / 40A Max. short circuit current: 50A / 50A
Max. output current22.8A / 21.7A
Rated grid output current22.8A / 21.7A
Max. usable PV input power24kW
Rated output power AC15kW
Max. PV Input DC Voltage1000V
MPPT Range200~850V
Rated PV Input DC Voltage550V
Start-up Voltage160V
Rated grid frequency50 Hz / 60 Hz
Power Factor>0.99 (0.8 leading - 0.8 lagging)
PhaseThree Phase
PHYSICAL DATA3 items
Working conditions-40 ~ +60°C
IP RatingIP66
Size430 × 660 × 295 mm
CERTIFICATIONS & WARRANTY1 item
Warranty10 years
PACKAGING2 items
Items per pack1
Item Weight42 kg
PRODUCT DATA4 items
Order code12229
Product codeS6-EH3P15K02-NV-YD-L
Release Date31.10.2024
BrandSOLIS
