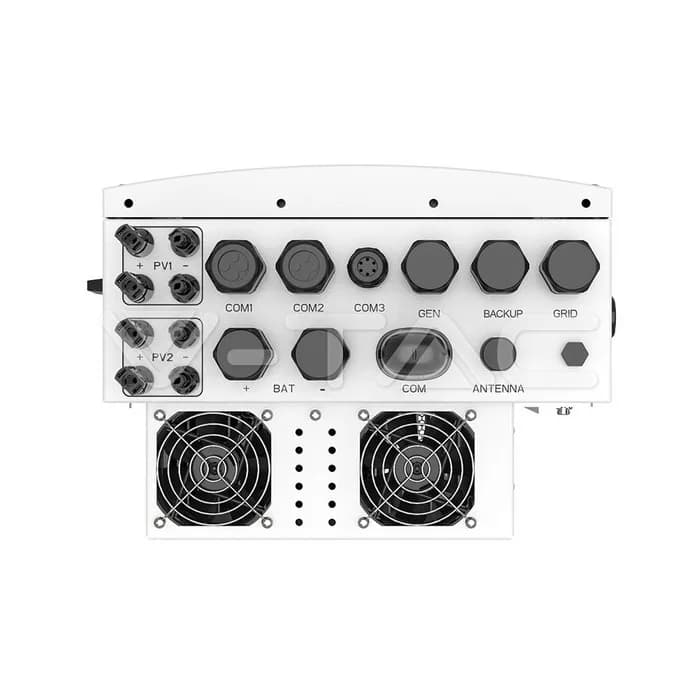

SOLIS 6kW Hybrid Solar Inverter Single Phase Low Voltage — view 5
SOLIS 6kW Hybrid Solar Inverter Single Phase Low Voltage — view 6

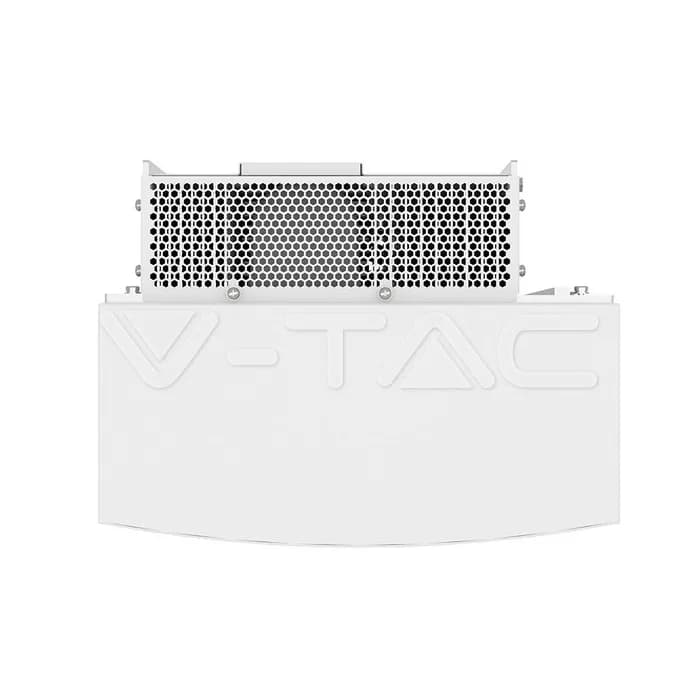

SOLIS 6kW Hybrid Solar Inverter Single Phase Low Voltage — view 7
V-TAC · S6-EH1P6K-L-PLUS
● EN STOCK · ENTREPÔT DÉLAI

SOLIS 6kW Hybrid Solar Inverter Single Phase Low Voltage

6kW Hybrid Solar Inverter Single Phase with IP66 protection and an operating range of -40 ~ +60°C. 10 years; certification on file: EMC License and LVD License.

dès€879HT · PRIX CATALOGUE
NiveauVotre prixConditions
Trade€879Card · PayPal · Klarna · Apple Pay
Pro€835Card · PayPal · Klarna · Apple Pay
Master€791Card · PayPal · Klarna · Apple Pay
GARANTIE FABRICANT
10 years
Les conditions propres au fabricant s'appliquent. Nous instruisons la réclamation — voir les conditions de vente.
CERTIFICATION · 2
EMC LicenseLVD License

Spécifications techniques

ELECTRICAL DATA13 items
Max. input current16A / 16A Max. short circuit current: 20A / 20A
Max. output current27.3 A / 26.1 A
Rated grid output current27.3 A / 26.1 A
Max. usable PV input power9.6kW
Max. charge / discharge power6kW
Rated output power AC6kW
Max. PV Input DC Voltage500V
MPPT Range90~435V
Rated PV Input DC Voltage330V
Start-up Voltage90V
Rated grid frequency50 Hz / 60 Hz
Power Factor>0.99 (0.8 leading - 0.8 lagging)
PhaseSingle Phase
PHYSICAL DATA3 items
Working conditions-40 ~ +60°C
IP RatingIP66
Size335 x 560 x 227 mm
CERTIFICATIONS & WARRANTY1 item
Warranty10 years
PACKAGING2 items
Items per pack1
Item Weight21.6 kg
PRODUCT DATA4 items
Order code12223
Product codeS6-EH1P6K-L-PLUS
Release Date31.10.2024
BrandSOLIS
