CATALOGUE/ONDULEURS HYBRIDES/RÉF 11957

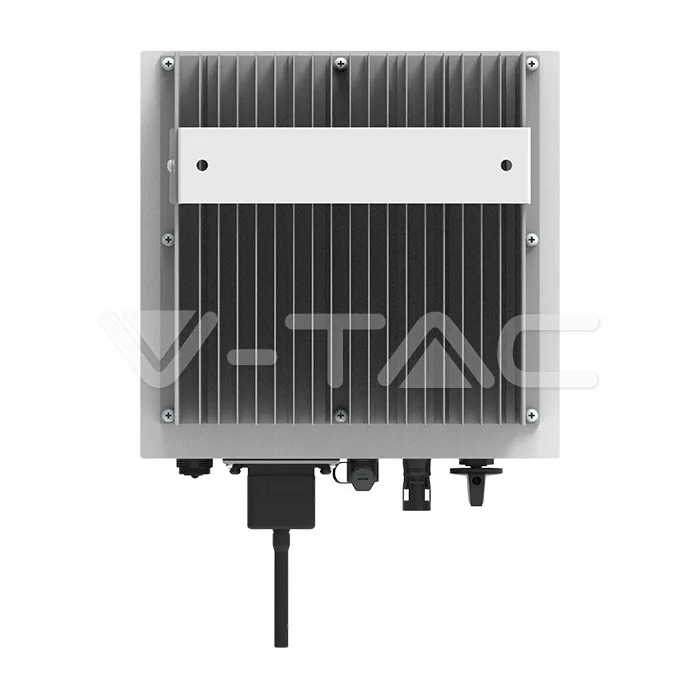

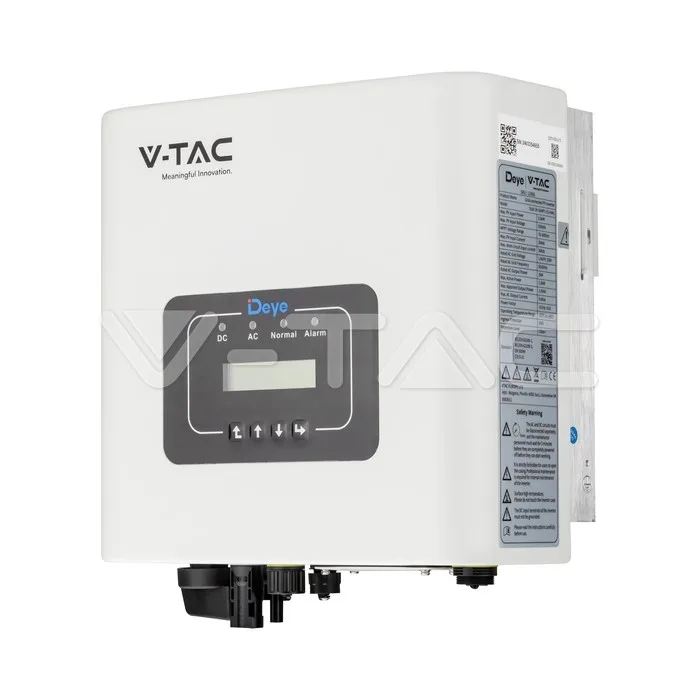

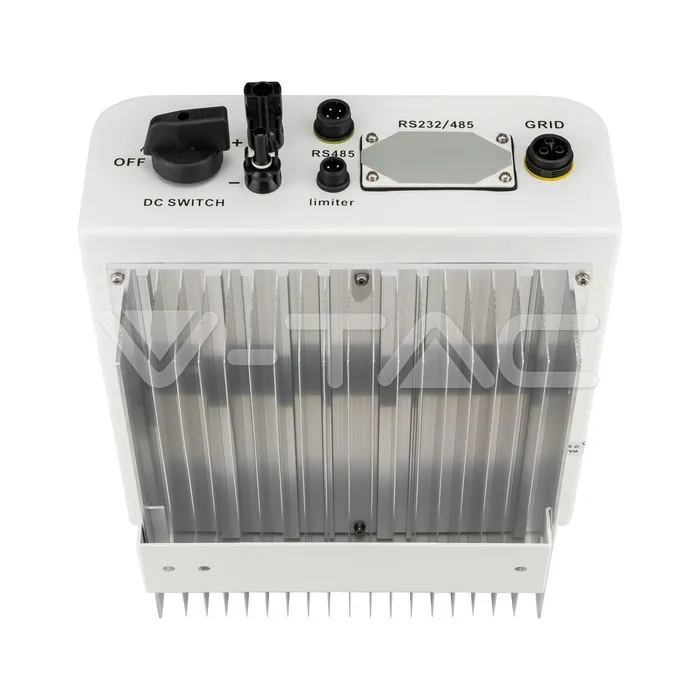

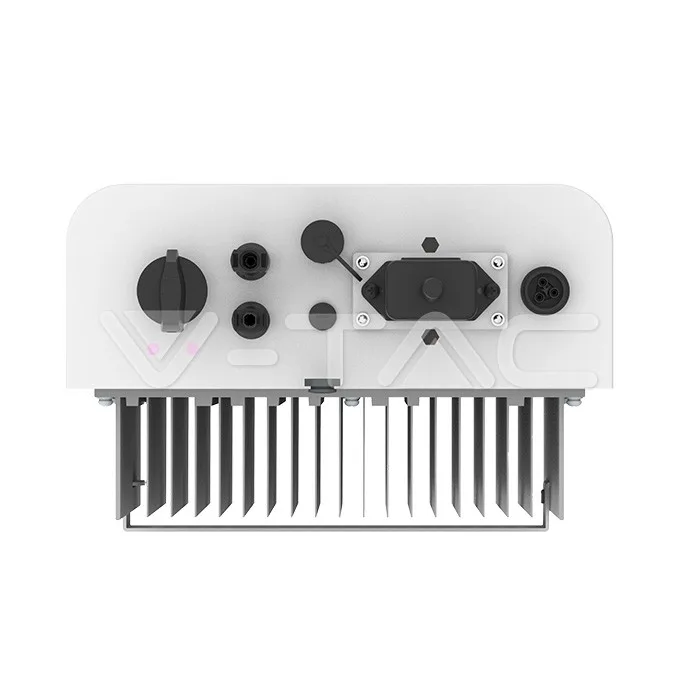

3kW On Grid Solar Inverter Single Phase — view 1
3kW On Grid Solar Inverter Single Phase — view 2
3kW On Grid Solar Inverter Single Phase — view 3
3kW On Grid Solar Inverter Single Phase — view 4
3kW On Grid Solar Inverter Single Phase — view 5
3kW On Grid Solar Inverter Single Phase — view 6
V-TAC · SUN-3K-G04P1-EU-AM1
● SUR DEMANDE · VÉRIFIER LA DISPONIBILITÉ

3kW On Grid Solar Inverter Single Phase

3kW On Grid Solar Inverter Single Phase with IP65 protection and an operating range of -25 to +65℃, >45℃ Derating. 5 years; certification on file: Declaration of Conformity, EMC License and LVD License.

dès€282HT · PRIX CATALOGUE
NiveauVotre prixConditions
Trade€282Card · PayPal · Klarna · Apple Pay
Pro€268Card · PayPal · Klarna · Apple Pay
Master€254Card · PayPal · Klarna · Apple Pay
GARANTIE FABRICANT
5 years
Les conditions propres au fabricant s'appliquent. Nous instruisons la réclamation — voir les conditions de vente.
CERTIFICATION · 3
Declaration of ConformityEMC LicenseLVD License

Spécifications techniques

ELECTRICAL DATA12 items
Max. PV Input Power3.9kW
Rated AC Output Active Power3 kW
Max. Operating PV Input Current20A
Max. Input Short Circuit Current30A
Max. PV Input Voltage550V
MPPT Voltage Range70-500V
Rated PV Input Voltage360V
Start-Up Voltage80V
Rated Output Voltage/Range220/230 0.85Un-1.1Un
Rated Output Grid Frequency/Range(Hz)50/45-55, 60/55-65
Power Factor0.8 leading to 0.8 lagging
PhaseSingle Phase
PHYSICAL DATA3 items
Working conditions-25 to +65℃, >45℃ Derating
IP RatingIP65
Size280 x 310 x 184 (Excluding Connectors and Brackets)
CERTIFICATIONS & WARRANTY1 item
Warranty5 years
PACKAGING2 items
Item Weight6.35 kg
Items per box1
PRODUCT DATA4 items
Order code11957
Product codeSUN-3K-G04P1-EU-AM1
Release Date15.06.2024
BrandDeye
