CATALOGUE/ONDULEURS HYBRIDES/RÉF 11955
AFORE 3.6kW Hybrid Solar Inverter Single Phase with CT and WiFi — view 1

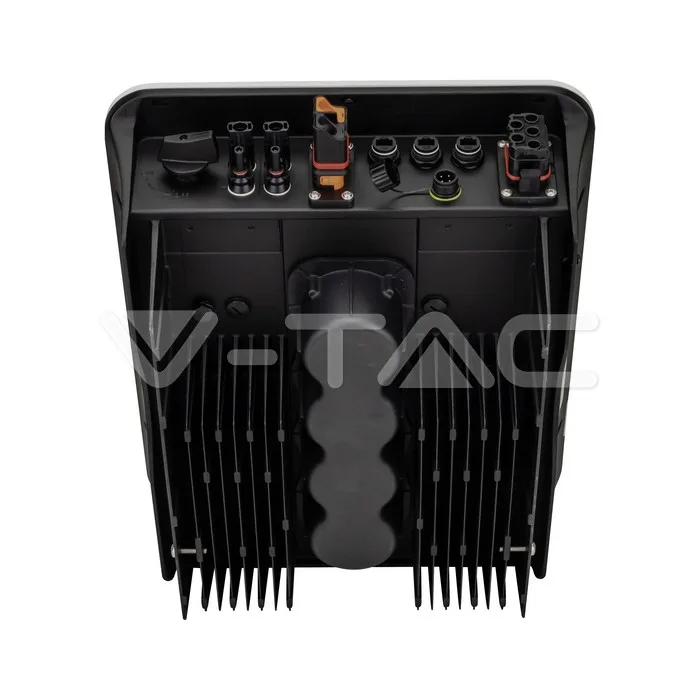

AFORE 3.6kW Hybrid Solar Inverter Single Phase with CT and WiFi — view 2
AFORE 3.6kW Hybrid Solar Inverter Single Phase with CT and WiFi — view 3
V-TAC · VT-AF3.6K-SL
● EN STOCK · ENTREPÔT DÉLAI

AFORE 3.6kW Hybrid Solar Inverter Single Phase with CT and WiFi

3.6kW On/Off Grid Hybrid Solar Inverter Single Phase with IP65 protection and an operating range of - 25 to 60℃. 10 years; certification on file: Declaration of Conformity, EMC License and LVD License.

dès€780HT · PRIX CATALOGUE
NiveauVotre prixConditions
Trade€780Card · PayPal · Klarna · Apple Pay
Pro€741Card · PayPal · Klarna · Apple Pay
Master€702Card · PayPal · Klarna · Apple Pay
GARANTIE FABRICANT
10 years
Les conditions propres au fabricant s'appliquent. Nous instruisons la réclamation — voir les conditions de vente.
CERTIFICATION · 3
Declaration of ConformityEMC LicenseLVD License

Spécifications techniques

ELECTRICAL DATA7 items
Battery PortMax. Charge/DIscharge Power 3.6kW
Battery PortMax. Charge/DIscharge Current (A) 80
Normal Voltage360V
Battery Normal Voltage51.2V
FrequencyNominal Grid Frequency 50/60 Hz
Power Factor0.999
PhaseSingle Phase
MECHANICAL & BUILD5 items
PV InputMax. Input Power 5.4kW
PV InputMax. Input Current (A) 18.5 x 2
PV InputMax. Short Current (A) 26 x 2
PV InputMax. PV Voltage 550V
Startup100V
PHYSICAL DATA3 items
Working conditions- 25 to 60℃
IP RatingIP65
Size370 x 535 x 192 mm
CERTIFICATIONS & WARRANTY1 item
Warranty10 years
PACKAGING2 items
Item Weight20.5 kg
Items per box1
PRODUCT DATA4 items
Order code11955
Product codeVT-AF3.6K-SL
Release Date29.05.2024
BrandAFORE
