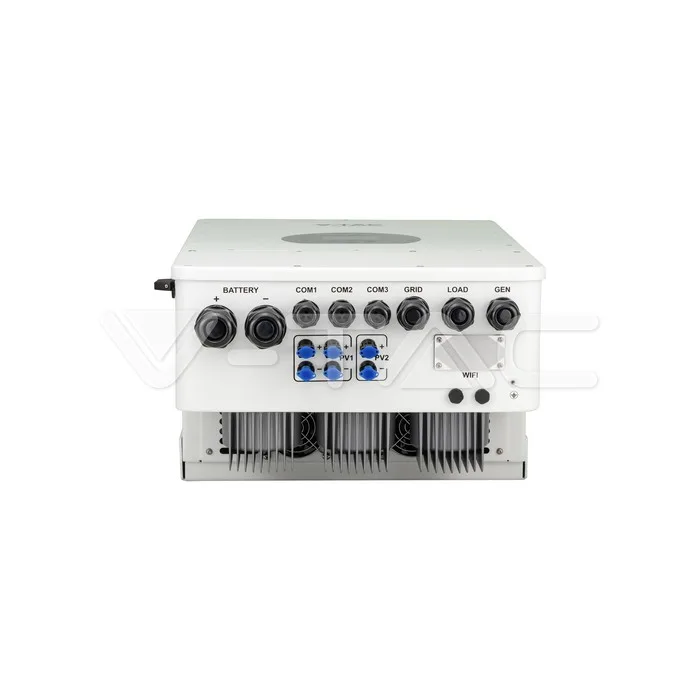

8kW Hybrid Solar Inverter Three Phase 380VAC Warranty — view 4
V-TAC · SUN-8K-SG04LP3-EU
● SUR DEMANDE · VÉRIFIER LA DISPONIBILITÉ

8kW Hybrid Solar Inverter Three Phase 380VAC Warranty

8kW Hybrid Solar Inverter Three Phase 380VAC Warranty with IP65 protection and an operating range of -40~60℃ , >45℃ Derating. 10 years; certification on file: Declaration of Conformity, EMC License and LVD License.

dès€1,625HT · PRIX CATALOGUE
NiveauVotre prixConditions
Trade€1,625Card · PayPal · Klarna · Apple Pay
Pro€1,544Card · PayPal · Klarna · Apple Pay
Master€1,463Card · PayPal · Klarna · Apple Pay
GARANTIE FABRICANT
10 years
Les conditions propres au fabricant s'appliquent. Nous instruisons la réclamation — voir les conditions de vente.
CERTIFICATION · 3
Declaration of ConformityEMC LicenseLVD License

Spécifications techniques

ELECTRICAL DATA11 items
PV Input Current13A+13A
AC Output Rated Current12.1/11.6A
Max. AC Current13.4/12.8A
Max. Input Power10400W
Rated AC Output and UPS Power8000W
Max. AC Output Power8800W
PV Input Voltage550V (160V~800V)
MPPT Range200V-650V
Start-up Voltage160V
Frequency50Hz / 60Hz
PhaseThree Phase
MECHANICAL & BUILD1 item
Max.PV Isc(A)17A+17A
PHYSICAL DATA3 items
Working conditions-40~60℃ , >45℃ Derating
IP RatingIP65
Size422W×702H×281D (Excluding connectors and brackets)
CERTIFICATIONS & WARRANTY1 item
Warranty10 years
PACKAGING1 item
Item Weight47.2 kg
PRODUCT DATA4 items
Order code11835
Product codeSUN-8K-SG04LP3-EU
Release Date29.09.2022
BrandDeye
