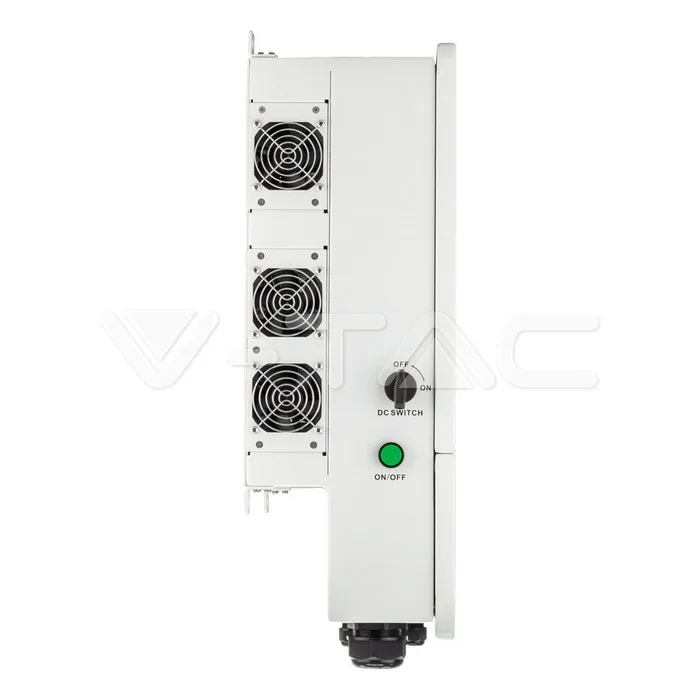

8kW On/Off Grid Hybrid Solar Inverter Single Phase 230VAC

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Prix / disponibilité sur demande

SUR COMMANDE · PAS DE PRIX CATALOGUE PUBLIÉ

Demander prix et disponibilité

GARANTIE

Warranty Conditions |

CERTIFICATION

VDE0126

Spécifications techniques

Manual

VDE0126

EN 62109

EN 50549

EMC License

LVD License

Warranty Conditions |

General Information

Electrical Data

Current PV Input Current26+26A; AC Output Rated Current: 33.3/38.5A Max AC Output Current: 36.7/42.3A

Wattage Max. Input Power10400W; Rated Output Power: 8000W; Max. Output Power: 8800W;

Voltage Start Voltage125V; Rated Input Voltage: 370 (125-500); Full-load DC Voltage Range: 200-425V; MPPT Voltage Range: 150-425V;

Frequency 50Hz / 60Hz

Power Factor 0.8 lagging to 0.8 leading

Phase Single Phase

Capabilities

Working conditions -40~60°C, >45°C derating

IP Rating IP65

Dimensions

Size 420x670x233 mm

Product Data

Order code 11803

Item Weight 32 kg

EAN Code 3800170206496

Additional

Release Date 02.05.2023

Warranty 10 years

Brand Deye

Documents

PDF11803-EMC.pdfV-TAC · datasheet PDF11803-IEC-62109.pdfV-TAC · datasheet PDF11803-LVD.pdfV-TAC · datasheet PDF11803-SUN-8K-SG01LP1-EU-Technical-Specifications.pdfV-TAC · datasheet PDFDeye-SUN-Series-Hybrid-Inverter-10-Year-Limited-Warranty-for-Installation-in-Europe.pdfV-TAC · datasheet PDFWarranty-Inverters-Deye.pdfV-TAC · datasheet PDF11803-SUN-8K-SG01LP1-EU-Manual-instructions.pdfV-TAC · external
