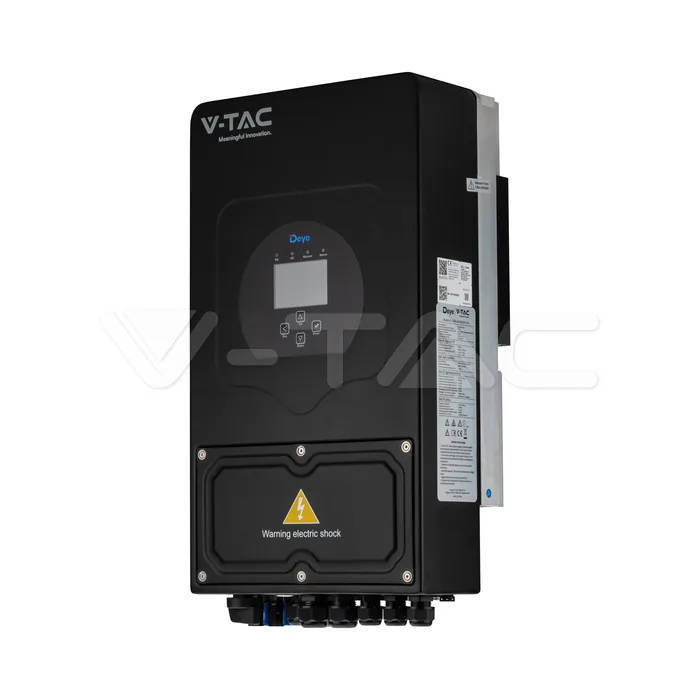

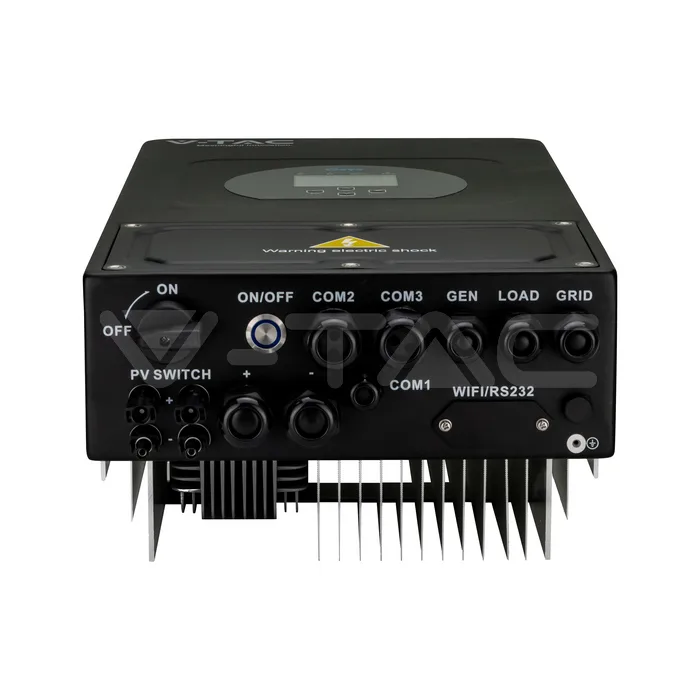

6kW Hybrid Solar Inverter Single Phase Black — view 1

V-TAC · SUN-6K-SG03LP1-EU

● SUR DEMANDE · VÉRIFIER LA DISPONIBILITÉ

6kW Hybrid Solar Inverter Single Phase Black

Name: 6kW Hybrid Solar Inverter Single Phase Black
Brand: V-TAC
SKU: 115291

6kW Hybrid Solar Inverter Single Phase Black with IP65 protection and an operating range of -40 to +60℃, >45℃ Derating. 10 years; certification on file: Declaration of Conformity, EMC License and LVD License.

Prix / disponibilité sur demande

SUR COMMANDE · PAS DE PRIX CATALOGUE PUBLIÉ

Demander prix et disponibilité

GARANTIE FABRICANT

10 years

Les conditions propres au fabricant s'appliquent. Nous instruisons la réclamation — voir les conditions de vente.

CERTIFICATION · 3

Declaration of ConformityEMC LicenseLVD License

Spécifications techniques

ELECTRICAL DATA10 items

Max. DC Input Power7800W

Rated AC Output and UPS Power (W)6000W

Max. AC Output Power6600W

AC Output Rated Current (A)27.3/26.1

Max. AC Current (A)30/28.7 Max. Continuous AC Passthrough: 40A

Rated PV Input Voltage370 (125~500)

MPPT Range150-425

Start-up Voltage125V

Power Factor0.8 leading to 0.8 lagging

PhaseSingle Phase

PHYSICAL DATA3 items

Working conditions-40 to +60℃, >45℃ Derating

IP RatingIP65

Size330W × 580H × 232D

CERTIFICATIONS & WARRANTY1 item

Warranty10 years

PACKAGING2 items

Items per pack1

Item Weight24 kg

PRODUCT DATA4 items

Order code115291

Product codeSUN-6K-SG03LP1-EU

Release Date07.01.2025

BrandDeye

Documents

DATASHEET

Technical datasheetV-TAC · datasheet DC SUN 3.6KW 6KW SG03LP1 EU DeclarationV-TAC · datasheet Ning Sun 3 6K VT 12040 1 GCC CEI 021 ita 24 422 00V-TAC · datasheet Ning Sun 3 6K VT 48160 GCC CEI 021 ita 24 057 00V-TAC · datasheet Ning Sun 3 6K VT 48290 VT16076W B GCC CEI 021 ita 25 335 00V-TAC · datasheet

CERTIFICATE

EMC / RED reportV-TAC · certificate LVD licenseV-TAC · certificate CEI 0-21 certificate (Italy)V-TAC · certificate CEI 0-21 certificate (Italy) — CEI 021 23 028 00 2023 01 18 SKUs 11447 11529 11547V-TAC · certificate Declaration of conformityV-TAC · certificate Declaration of conformity — Deye Self Declaration of Conformity IT VTACV-TAC · certificate

WARRANTY

Warranty termsV-TAC · warranty Warranty terms — Warranty Inverters DeyeV-TAC · warranty
