V-TAC · VT-6605110
● EN STOCK · ENTREPÔT DÉLAI

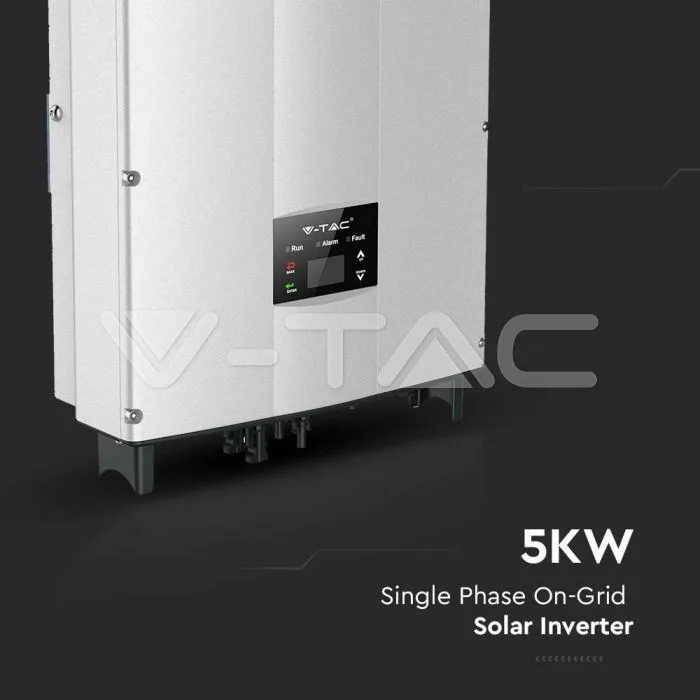

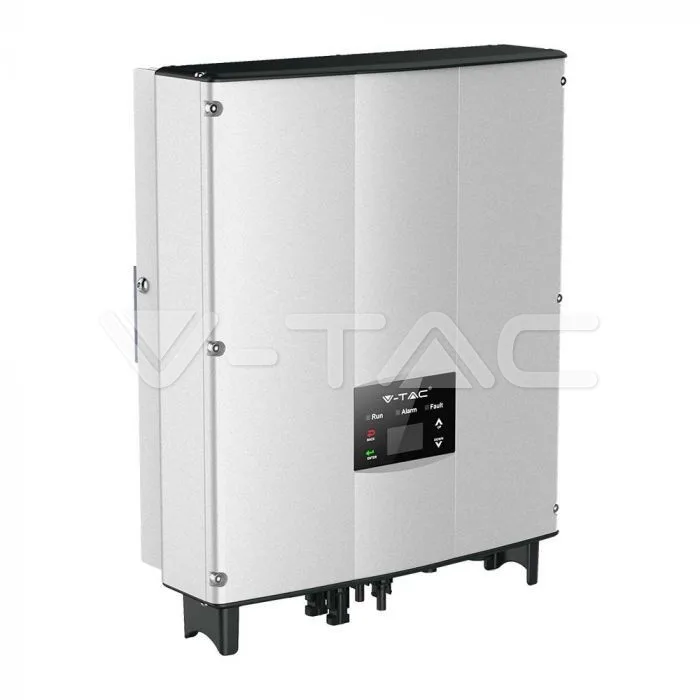

5kW On-Grid Solar Inverter LCD Display Single Phase, 10-Year Warranty

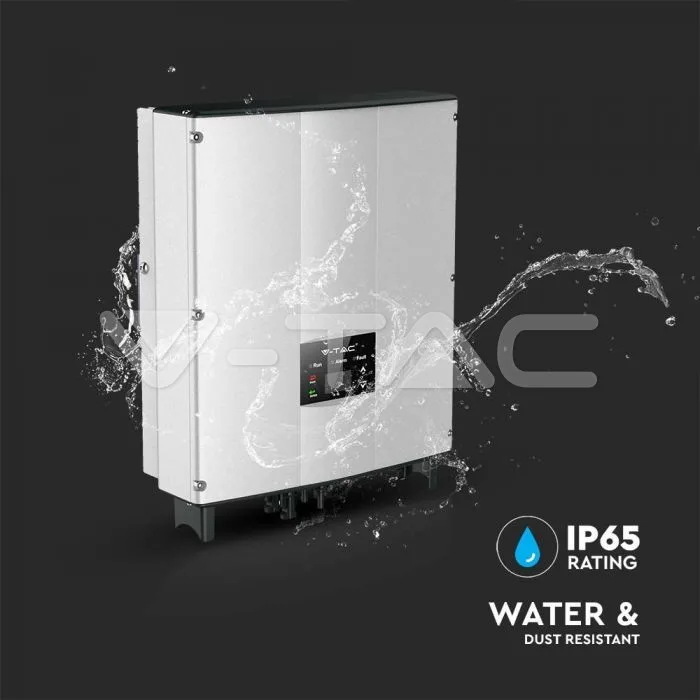

5kW On-Grid Solar Inverter LCD Display Single Phase with IP65 protection and an operating range of -25°C to +60°C (Derating above 45º). 10 years; certification on file: ЕМС Report, EMC License, LVD License and LVD Report.

dès€489HT · PRIX CATALOGUE
NiveauVotre prixConditions
Trade€489Card · PayPal · Klarna · Apple Pay
Pro€465Card · PayPal · Klarna · Apple Pay
Master€440Card · PayPal · Klarna · Apple Pay
GARANTIE FABRICANT

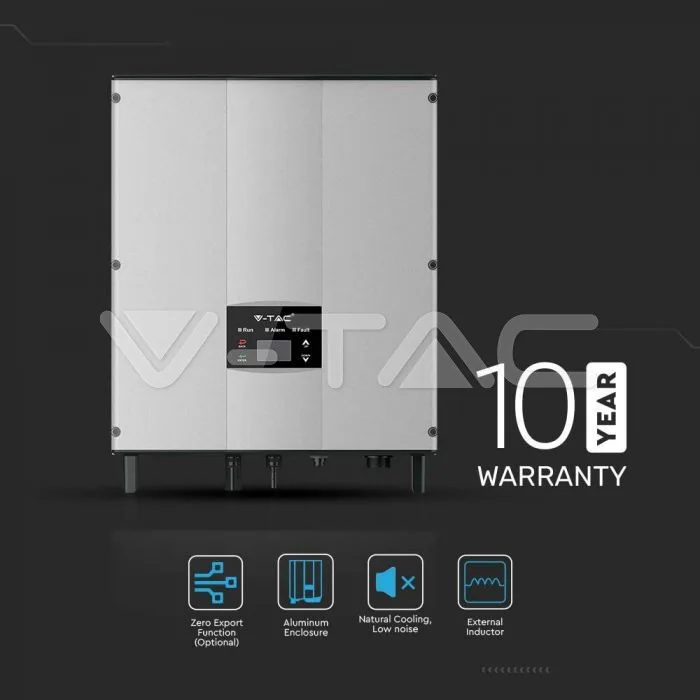

10 years
Les conditions propres au fabricant s'appliquent. Nous instruisons la réclamation — voir les conditions de vente.
CERTIFICATION · 4
ЕМС ReportEMC LicenseLVD LicenseLVD Report

Spécifications techniques

ELECTRICAL DATA10 items
Max. Current per MPPT12A Max. Output Current: 20A
Max. Input Power6kW
Rated AC Power4.6kW
Start Voltage/Min. Operating (DC)120/100V
MPPT Range (DC)120V-550V
MPPT Rated (DC)360V
Rated Grid Voltage (AC)230V, L+N+PE
FrequencyRated Grid Frequency 50Hz / 60Hz
Power Factor≥0.99 (Rated Power)
PhaseSingle Phase
MECHANICAL & BUILD1 item
Max. Input (DC)600V
PHYSICAL DATA3 items
Working conditions-25°C to +60°C (Derating above 45º)
IP RatingIP65

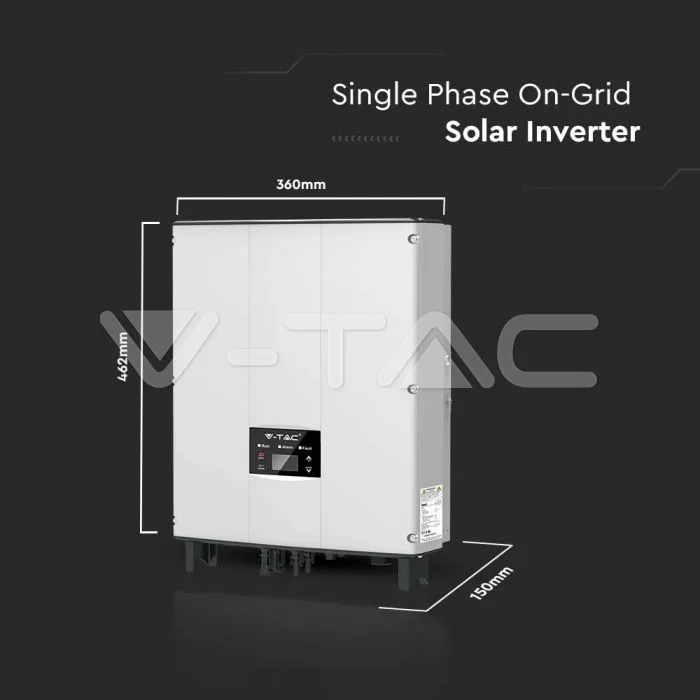

Size360 x 462 x 150 mm
CERTIFICATIONS & WARRANTY1 item
Warranty10 years
PACKAGING1 item
Item Weight18kg
PRODUCT DATA4 items
Order code11380
Product codeVT-6605110
Release Date15.09.2022
BrandINVT

Documents
