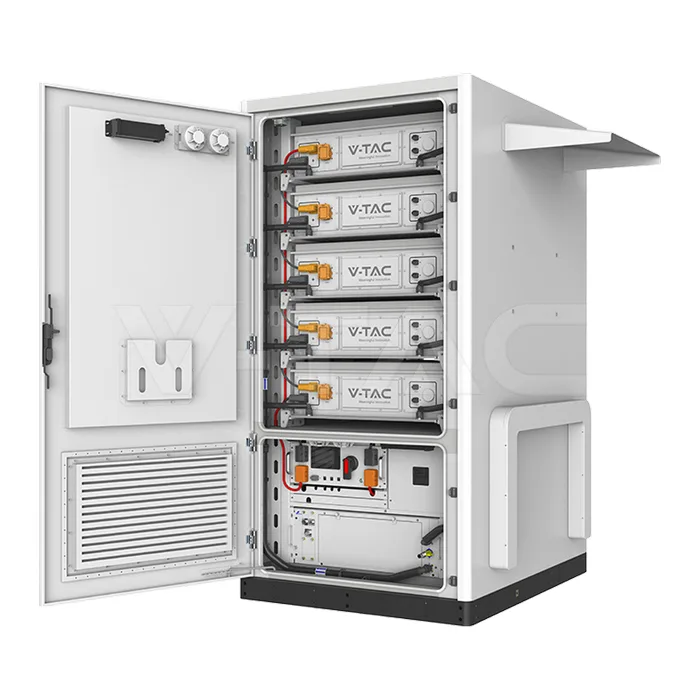

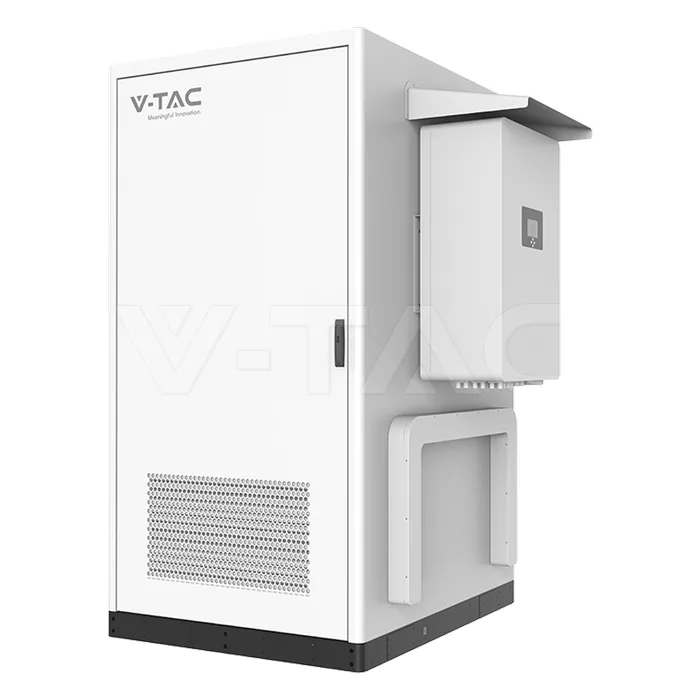

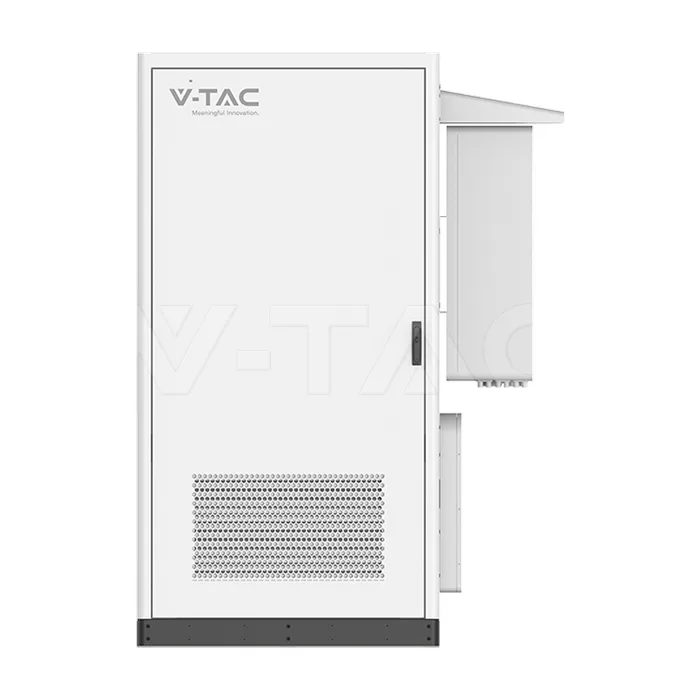

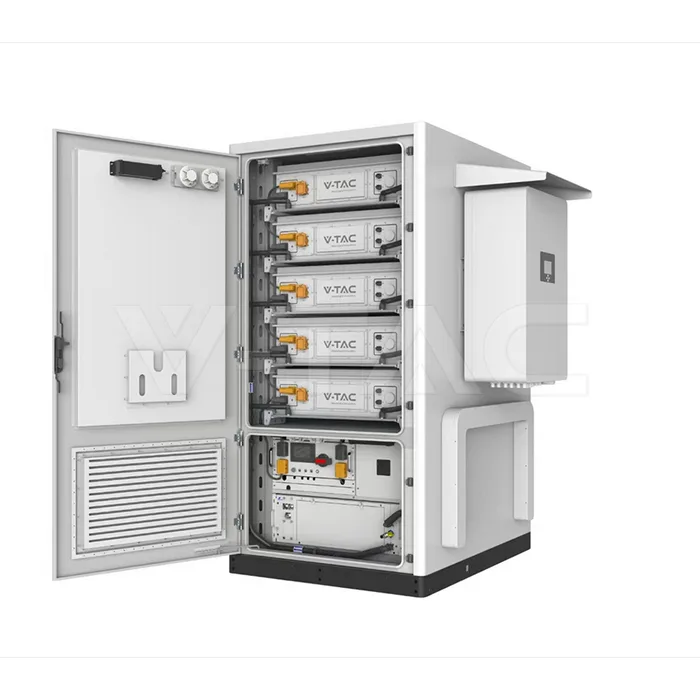

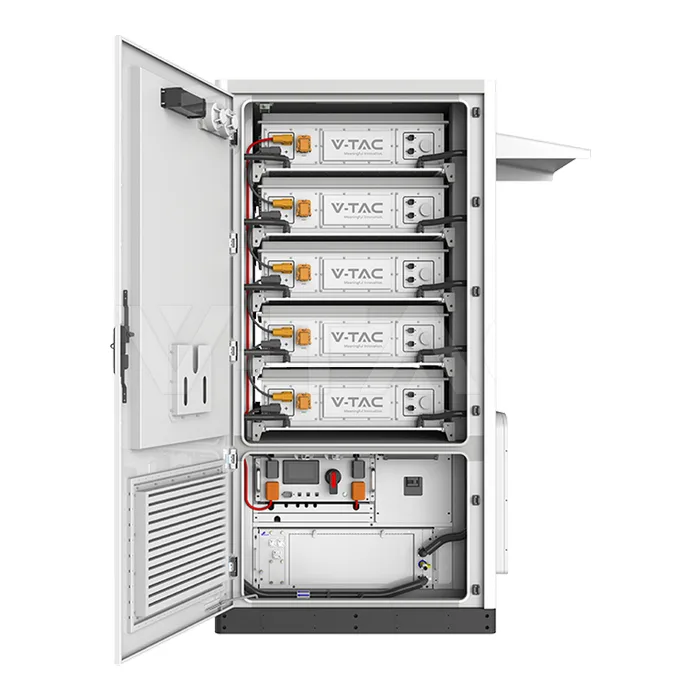

261kWh HV Battery Set (Liquid Cooling) OLITER IP65

Name: 261kWh HV Battery Set (Liquid Cooling) OLITER IP65
Brand: V-TAC
SKU: 12813

261kWh HV Battery Set (Liquid Cooling) OLITER IP65 with LiFePO4 cells, 261kWh (52.249 kWh x 5) and an operating range of 20 ~ 55°C. 10 years.

Consultar precio / disponibilidad

BAJO PEDIDO · SIN PRECIO DE TARIFA PUBLICADO

WARRANTY

10 years

CERTIFICATION

Per datasheet

Technical specification

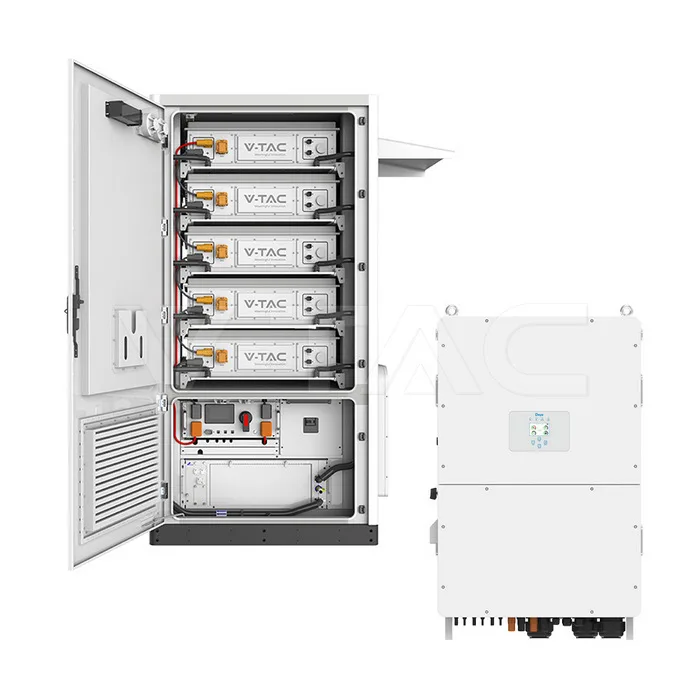

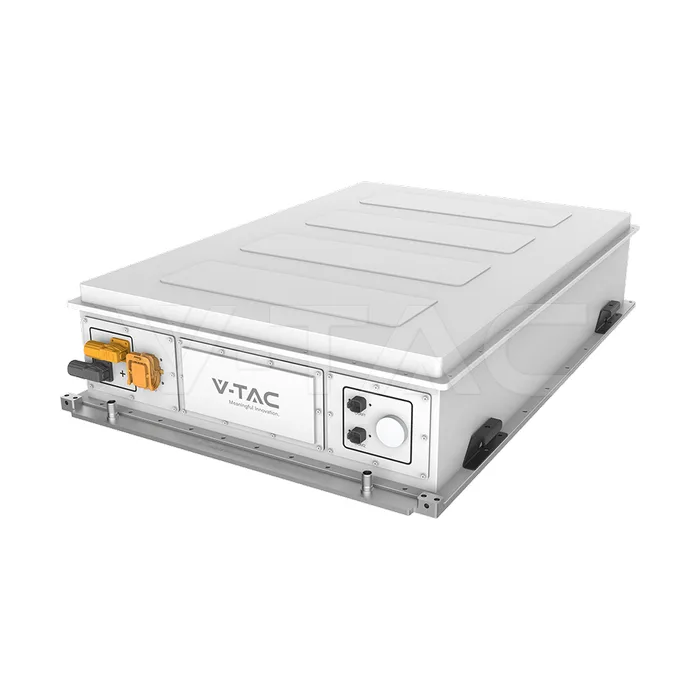

* 5 pcs - 52.249kWh LiFePO4 Battery SKU12676

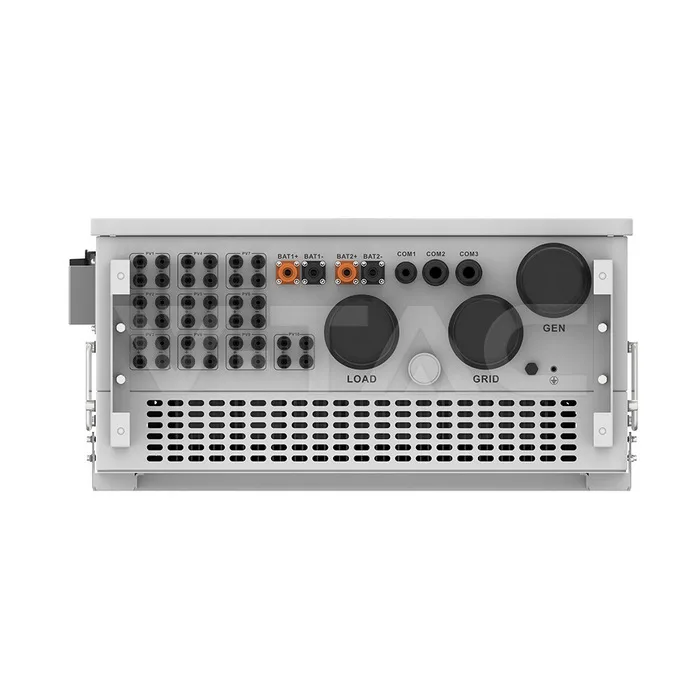

* 1 pc - 125kW Hybrid Solar Inverter Three Phase SKU12738

Recommend Charge/Discharge Current100A

Max. Charge/Discharge Current157A

Wattage261kWh (52.249 kWh x 5)

System Nominal Voltage832V

System Operating Voltage728-949V

Battery Set~2700 kg

Cells ChemistryLiFePO4

Module314Ah (LiFePO4)

Inverter161.7 kg

Working conditions20 ~ 55°C

Size1600 x 1400 x 2105 mm

Warranty10 years

Order code12813

Release Date22.07.26

ManufacturerV-TAC
