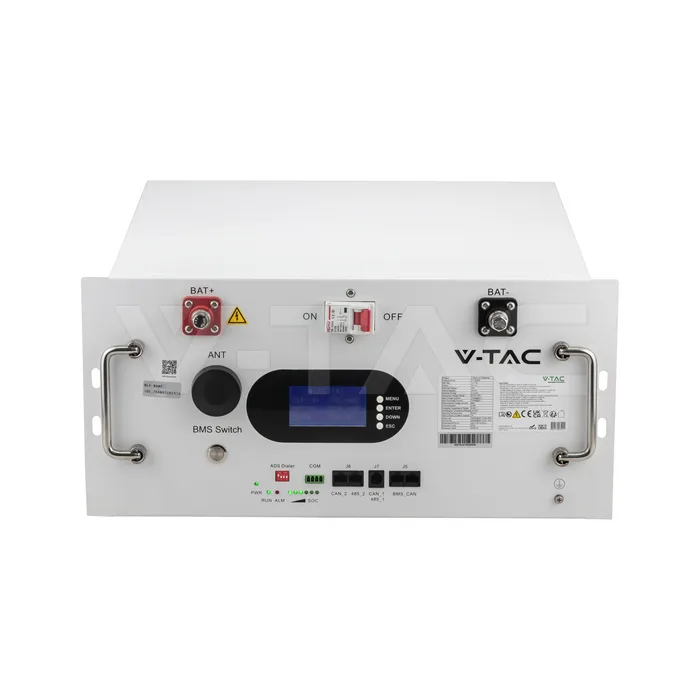

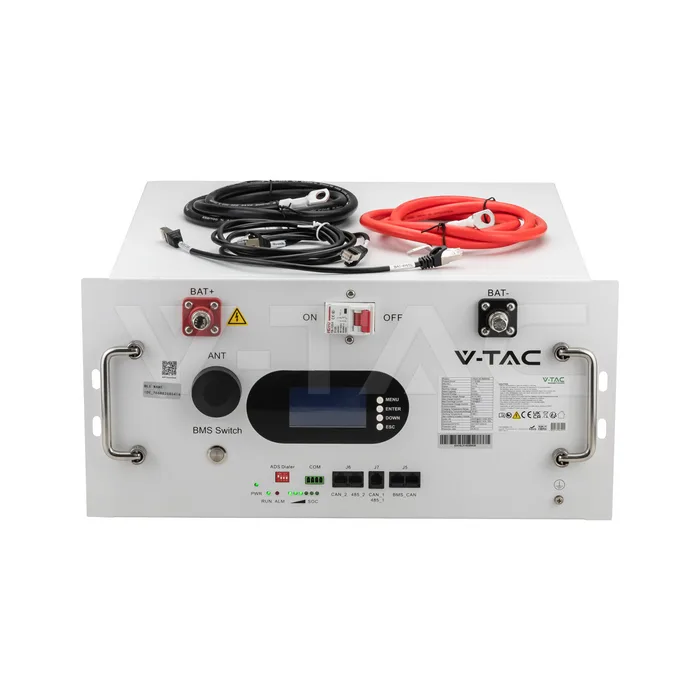

9.6kWh 48V LiFePO4 Rack Battery Wi-Fi White

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Consultar precio / disponibilidad

BAJO PEDIDO · SIN PRECIO DE TARIFA PUBLICADO

Solicitar precio y disponibilidad

WARRANTY

Warranty Conditions

CERTIFICATION

IEC 62619

Technical specification

Manual

Warranty Conditions

IEC 62619

CEI 0-21 |

General Information

Electrical Data

Current Recommend Charge Current90A; Max.Charge Current: 100A; Max. Discharge Current: 100A;

Wattage 9.6kWh

Voltage 48V

Body Details

Mount On a Rack

Capabilities

IP Rating IP20

Cells Chemistry LiFePO4

Battery Capacity 200Ah

Working conditions Charge Temperature0 ~ 60°C ; Discharge Temperature: -20 ~ 60°C Storage Temperature: 15 ~ 35°C ;

Dimensions

Size 505 x 576 x 135.2 mm

Product Data

Order code 12718

Product code VT-91600

Items per pack 1

Additional

Release Date 22.04.26

Brand V-TAC

Warranty 10 years

Documents

PDF12684-Technical-Specs-v1.pdfV-TAC · datasheet PDFDeye-Self-Declaration-of-Conformity-IT.pdfV-TAC · datasheet PDFNing_Sun-(3.6-10)_VT-91600_CEI_021 2022-03 _ita_eng_26-016-00.pdfV-TAC · datasheet PDFVT-91600-IEC-62619.pdfV-TAC · datasheet PDFVT-91600-Warranty-Card.pdfV-TAC · datasheet PDFVT-91600-Manual.pdfV-TAC · external
