CATALOG/PORTABLE POWER/SKU 12707
614Wh Expansion LiFePO4 Battery Pack 51.2V — view 1
614Wh Expansion LiFePO4 Battery Pack 51.2V — view 2
614Wh Expansion LiFePO4 Battery Pack 51.2V — view 3

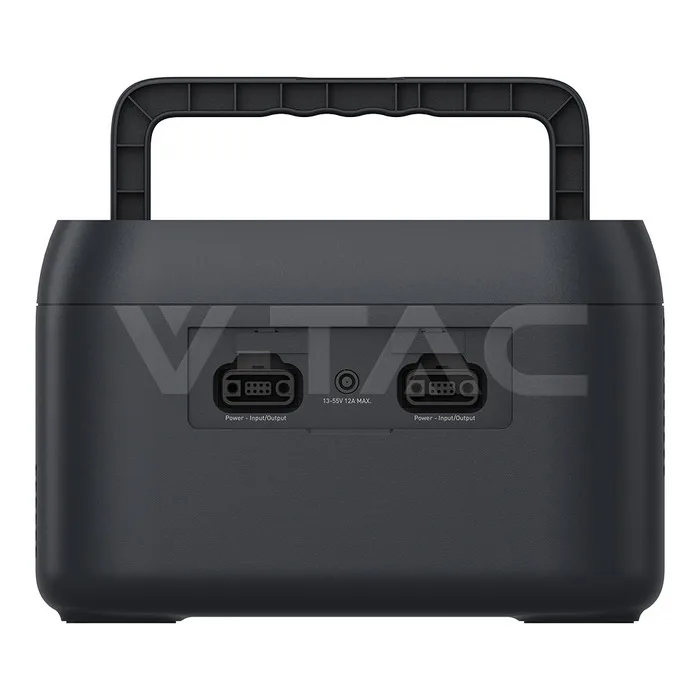

614Wh Expansion LiFePO4 Battery Pack 51.2V — view 4
V-TAC · SKU 12707
● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

614Wh Expansion LiFePO4 Battery Pack 51.2V

614Wh Expansion LiFePO4 Battery Pack 51.2V with Nominal energy 614Wh capacity and IP20 protection. Certification on file: Declaration of Conformity, CE, SGS and EMC License.

from€330EXCL. VAT · LIST PRICE
TierYour priceTerms
Trade€330Card · PayPal · Klarna · Apple Pay
Pro€314Card · PayPal · Klarna · Apple Pay
Master€297Card · PayPal · Klarna · Apple Pay
WARRANTY
Manufacturer warranty · V-TAC
CERTIFICATION
Declaration of Conformity · CE · SGS

Technical specification

Wattage614Wh
Nominal voltage51.2V
Power input| 40-57.6V,12A Max.
Power output| 40 - 57.6V, 24A Max.
Battery CapacityNominal energy 614Wh
PV charge input| 13-45V, 12A, 400W Max.
Adapter input| 21V, 5A 105W Max.
Car charge input| 12/24V, 5A Max.
USB-A1| 5V/2.4A, 12W Max.
USB-C1| 5/9/12/15V 3A, 20V/5A, 100W Max.
USB-C2/C3| 5/9/12/15V 3A, 20V/3.25A, 65W Max.
Car charge output| 12.6V, 10A Max.
Cells ChemistryLiFePO4
Altitude| <2000m
Discharge Temperature Range| -20°C~45°C
Charge Temperature Range| 0°C~45°C
Storage Ambient Temperature| -20℃~45°C
IP RatingIP20
Operating humidity| 10% - 85%(Non-condensing)
Size301 x 227 x 193mm
Item Weight7.5 kg
Items per box1
Order code12707
Product codeVT-614
