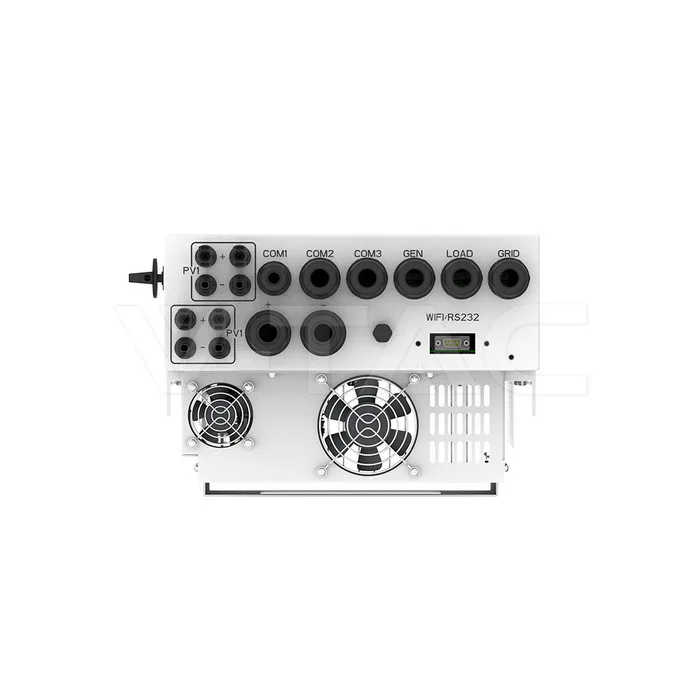

6kW Hybrid Solar Inverter Single Phase — view 1
6kW Hybrid Solar Inverter Single Phase — view 2
6kW Hybrid Solar Inverter Single Phase — view 3
6kW Hybrid Solar Inverter Single Phase — view 4
6kW Hybrid Solar Inverter Single Phase — view 5
V-TAC · SUN-6K-SG05LP1-EU-AM2-P
● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

6kW Hybrid Solar Inverter Single Phase

6kW Hybrid Solar Inverter Single Phase with IP65 protection and an operating range of -40~60°C, >45°C derating. 10 years; certification on file: Declaration of Conformity, Certificate of Conformity, VDE Certificate and EMC License.

desde€799IVA EXCL. · PRECIO DE TARIFA
NivelTu precioCondiciones
Trade€799Card · PayPal · Klarna · Apple Pay
Pro€759Card · PayPal · Klarna · Apple Pay
Master€719Card · PayPal · Klarna · Apple Pay
Solicitar precio y disponibilidad
GARANTÍA DEL FABRICANTE
10 years
Se aplican las condiciones propias del fabricante. Nosotros tramitamos la reclamación — consulta las condiciones de venta.
CERTIFICACIÓN · 4
Declaration of ConformityCertificate of ConformityVDE CertificateEMC License

Especificaciones técnicas

ELECTRICAL DATA11 items
Rated AC Input/Output Current27.3/26.1A
Max. AC Input/Output Current30/28.7A
Max. PV Access Power12000W
Rated AC Input/Output Active Power6000W
PhaseSingle Phase
Max. PV Input Voltage500V
Start-up Voltage125V
MPPT Voltage Range150-425V
Rated PV Input Voltage370V
FrequencyRated Input/Output Grid Frequency/Range 50/45-55, 60/55-65
Power Factor0.8 leading to 0.8 lagging
MECHANICAL & BUILD1 item
Max. Continuous AC Passthrough40A
PHYSICAL DATA3 items
IP RatingIP65
Working conditions-40~60°C, >45°C derating
Size330 × 580 × 232 mm
CERTIFICATIONS & WARRANTY1 item
Warranty10 years
PACKAGING2 items
Items per pack1
Item Weight24.9 kg
PRODUCT DATA4 items
Order code12679
Product codeSUN-6K-SG05LP1-EU-AM2-P
Release Date10.12.25
BrandDeye
