CATÁLOGO/INVERSORES HÍBRIDOS/REF 12677
125kW Hybrid Solar Inverter Three Phase High Voltage — view 1
125kW Hybrid Solar Inverter Three Phase High Voltage — view 2

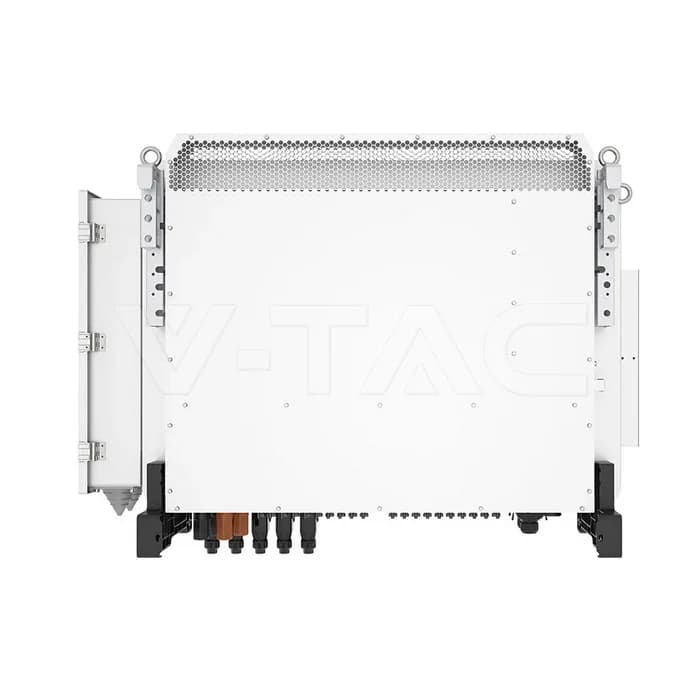

125kW Hybrid Solar Inverter Three Phase High Voltage — view 3

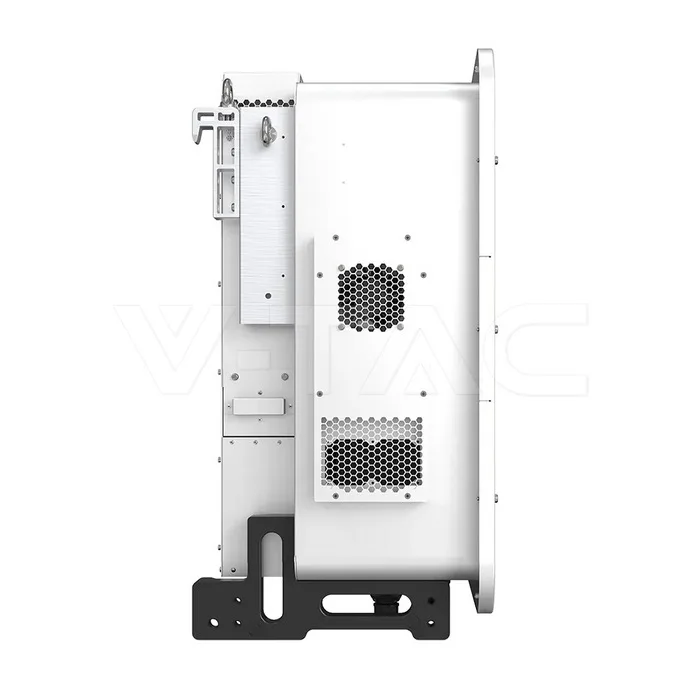

125kW Hybrid Solar Inverter Three Phase High Voltage — view 4

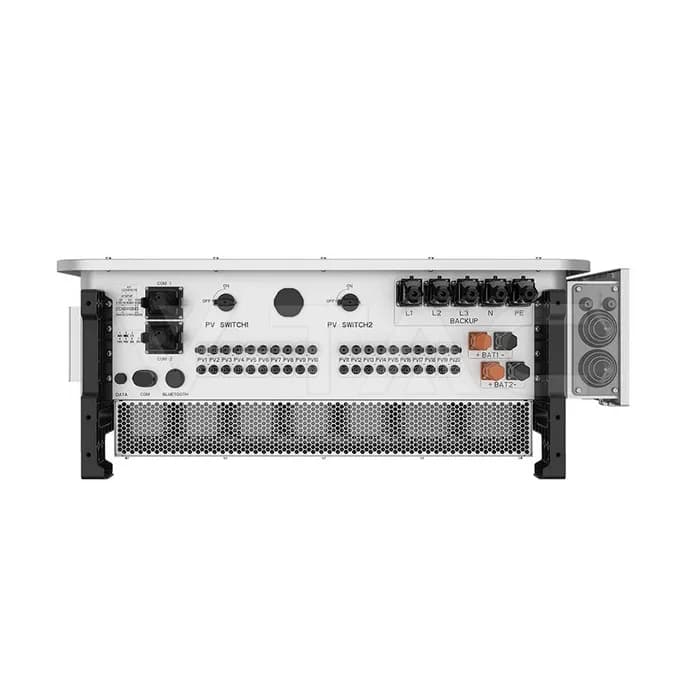

125kW Hybrid Solar Inverter Three Phase High Voltage — view 5
V-TAC · S6-EH3P125K10-NV-YD-H
● EN STOCK · ALMACÉN ENTREGA

125kW Hybrid Solar Inverter Three Phase High Voltage

125kW Hybrid Solar Inverter Three Phase High Voltage with IP66 protection and an operating range of -25 ~ +60°C. 10 years; certification on file: EMC License and LVD License.

desde€5,980IVA EXCL. · PRECIO DE TARIFA
NivelTu precioCondiciones
Trade€5,980Card · PayPal · Klarna · Apple Pay
Pro€5,681Card · PayPal · Klarna · Apple Pay
Master€5,382Card · PayPal · Klarna · Apple Pay
Abre una cuenta para pedir
GARANTÍA DEL FABRICANTE
10 years
Se aplican las condiciones propias del fabricante. Nosotros tramitamos la reclamación — consulta las condiciones de venta.
CERTIFICACIÓN · 2
EMC LicenseLVD License

Especificaciones técnicas

ELECTRICAL DATA12 items
Max. input current10 × 42A
Max. short circuit current10 × 60A
Max. usable PV input power250kW
Rated output power125kW
Max. input AC power125kW
PhaseThree Phase
Max. PV Input Voltage1000V
MPPT Range150-950V
Rated Voltage600V
Start-up Voltage180V
Rated Frequency50Hz / 60Hz
Power Factor> 0.99 (0.8 leading - 0.8 lagging)
PHYSICAL DATA3 items
IP RatingIP66
Working conditions-25 ~ +60°C
Size1174 × 814 × 400 mm
CERTIFICATIONS & WARRANTY1 item
Warranty10 years
PACKAGING2 items
Items per pack1
Item Weight170 kg
PRODUCT DATA4 items
Order code12677
Product codeS6-EH3P125K10-NV-YD-H
Release Date19.12.25
BrandSOLIS
