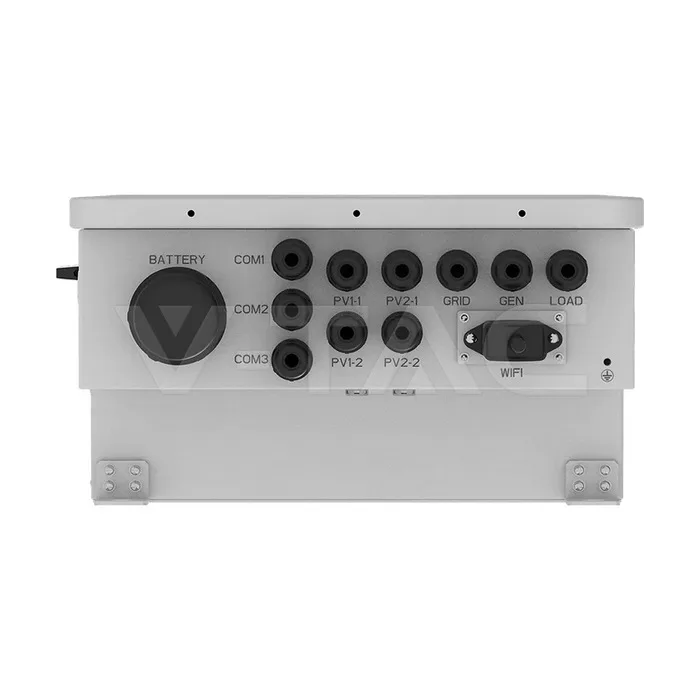

12kW Hybrid Solar Inverter Single Phase 230VAC — view 2
12kW Hybrid Solar Inverter Single Phase 230VAC — view 3
V-TAC · SUN-12KSG02LP1-EUAM3-P
● EN STOCK · ALMACÉN ENTREGA

12kW Hybrid Solar Inverter Single Phase 230VAC

12kW Hybrid Solar Inverter Single Phase 230VAC with IP65 protection and an operating range of -40 to +60℃. 10 years; certification on file: Declaration of Conformity, SGS, EMC License and TÜV Certificate.

desde€1,560IVA EXCL. · PRECIO DE TARIFA
NivelTu precioCondiciones
Trade€1,560Card · PayPal · Klarna · Apple Pay
Pro€1,482Card · PayPal · Klarna · Apple Pay
Master€1,404Card · PayPal · Klarna · Apple Pay
Abre una cuenta para pedir
GARANTÍA DEL FABRICANTE
10 years
Se aplican las condiciones propias del fabricante. Nosotros tramitamos la reclamación — consulta las condiciones de venta.
CERTIFICACIÓN · 4
Declaration of ConformitySGSEMC LicenseTÜV Certificate

Especificaciones técnicas

ELECTRICAL DATA16 items
Max. Operating PV Input Current32+32+32A
Max. Input Short-Circuit Current60+60+60A
Rated AC Input/Output Current54.6/52.2V
Max. AC Input/Output Current60/57.4A
Max. PV access power24000W
Max. PV input power19200W
Rated AC Input/Output Active Power12000W
PhaseSingle Phase
Max. PV Input Voltage500V
Start-up voltage125V
PV Input Voltage Range125-500V
MPPT Voltage Range150-425V
Full Load MPPT Voltage Range200-425V
Rated PV Input Voltage370V
Rated Input/Output Grid Frequency/Range50Hz/45Hz-55Hz 60Hz/55Hz-65Hz
Power Factor0.8 leading-0.8 lagging
PHYSICAL DATA3 items
IP RatingIP65
Working conditions-40 to +60℃
Size420W x 670H x 233D
CERTIFICATIONS & WARRANTY1 item
Warranty10 years
PACKAGING1 item
Items per box1
PRODUCT DATA4 items
Order code12675
Product codeSUN-12KSG02LP1-EU-AM3-P
Release Date14.11.25
BrandDeye
