CATÁLOGO/INVERSORES HÍBRIDOS/REF 12674
30kW Hybrid Solar Inverter Three Phase 380VAC — view 1
30kW Hybrid Solar Inverter Three Phase 380VAC — view 2

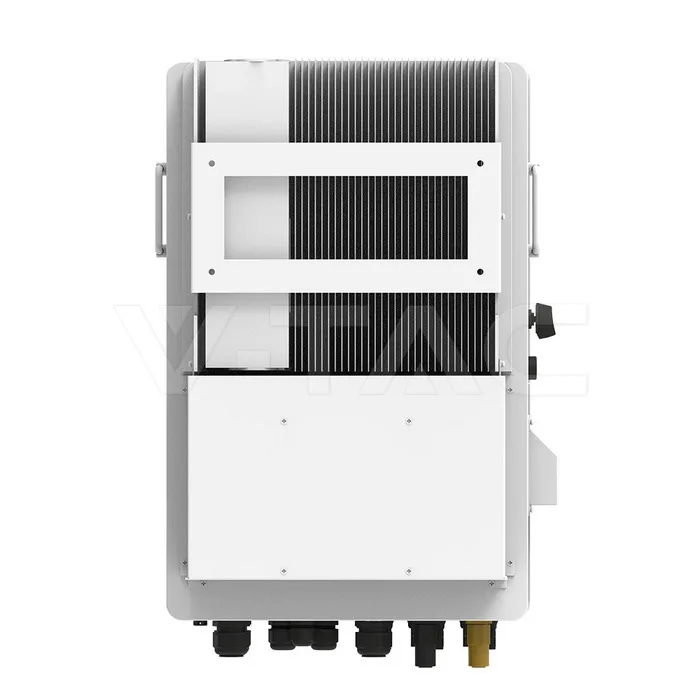

30kW Hybrid Solar Inverter Three Phase 380VAC — view 3
30kW Hybrid Solar Inverter Three Phase 380VAC — view 4
V-TAC · SUN-30K-SG02HP3-EU-AM3
● STOCK LIMITADO · ALMACÉN ENTREGA

30kW Hybrid Solar Inverter Three Phase 380VAC

30kW Hybrid Solar Inverter Three Phase 380VAC with IP65 protection and an operating range of -40 to +60℃. 10 years; certification on file: Declaration of Conformity, EMC License and LVD License.

desde€2,860IVA EXCL. · PRECIO DE TARIFA
NivelTu precioCondiciones
Trade€2,860Card · PayPal · Klarna · Apple Pay
Pro€2,717Card · PayPal · Klarna · Apple Pay
Master€2,574Card · PayPal · Klarna · Apple Pay
Abre una cuenta para pedir
GARANTÍA DEL FABRICANTE
10 years
Se aplican las condiciones propias del fabricante. Nosotros tramitamos la reclamación — consulta las condiciones de venta.
CERTIFICACIÓN · 3
Declaration of ConformityEMC LicenseLVD License

Especificaciones técnicas

ELECTRICAL DATA14 items
Max. Operating PV Input Current36+36+36A
Max. Input Short-Circuit Current54+54+54A
Rated AC Input/Output Current45.5/43.5V
Max. AC Input/Output Current50/47.9A
Max. PV access power60000W
Max. PV input power48000W
Rated AC Input/Output Active Power30000W
PhaseThree Phase
Max. PV Input Voltage1000V
Start-up voltage180V
MPPT Voltage Range150-850V
Rated PV Input Voltage600V
Rated Input/Output Grid Frequency/Range50/45-55, 60/55-65 Hz
Power Factor0.8 leading-0.8 lagging
PHYSICAL DATA3 items
IP RatingIP65
Working conditions-40 to +60℃
Size448 x 688 x 270 mm
CERTIFICATIONS & WARRANTY1 item
Warranty10 years
PACKAGING1 item
Items per box1
PRODUCT DATA4 items
Order code12674
Product codeSUN-30K-SG02HP3-EU-AM3
BrandDeye
Release Date14.11.25
