CATALOG/SOLAR PV SETS/SKU 12341

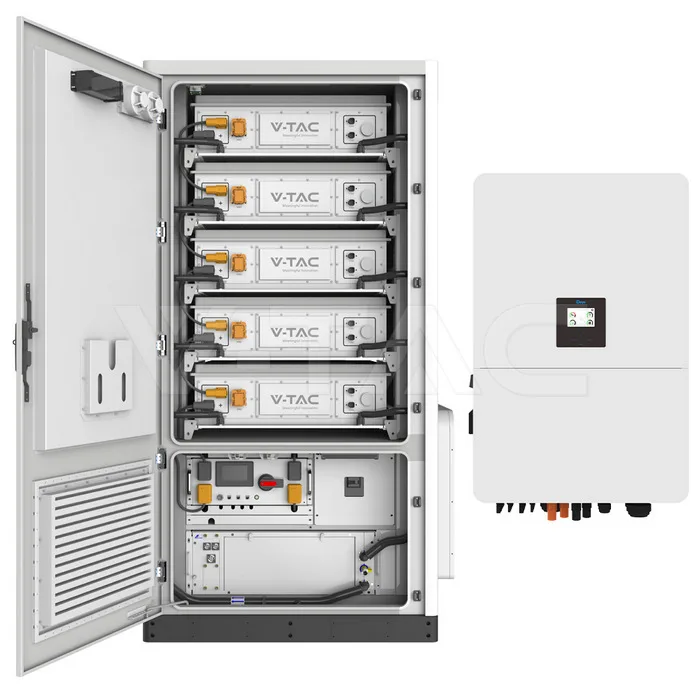

233kWh HV Battery System IP65 + 80kW Deye Inverter — view 1

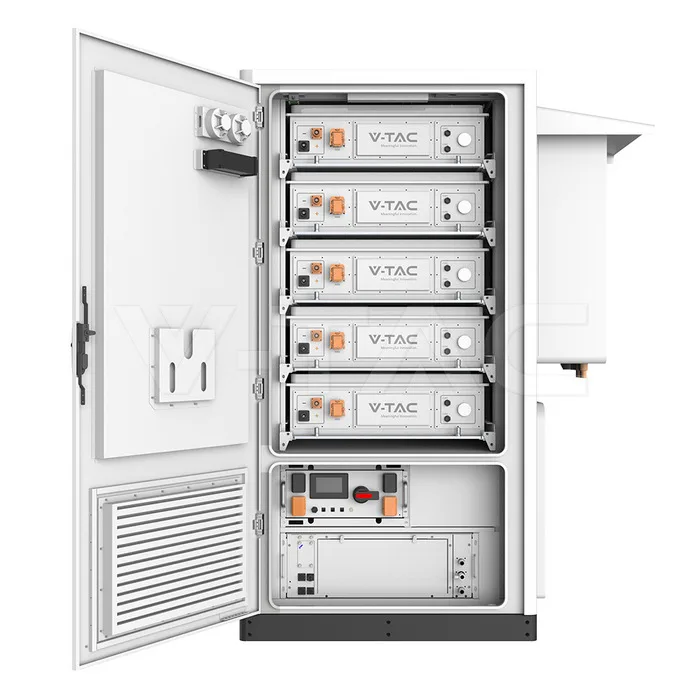

233kWh HV Battery System IP65 + 80kW Deye Inverter — view 2

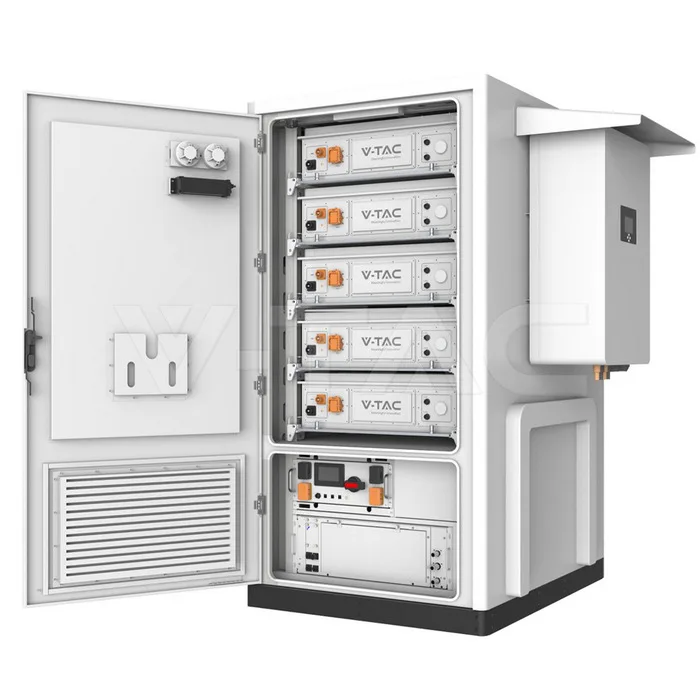

233kWh HV Battery System IP65 + 80kW Deye Inverter — view 3
V-TAC · SKU 12341
● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

233kWh HV Battery System IP65 + 80kW Deye Inverter

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Consultar precio / disponibilidad
BAJO PEDIDO · SIN PRECIO DE TARIFA PUBLICADO
WARRANTY
10 years
CERTIFICATION
Per datasheet

Technical specification

Max. PV Access Power160000W
Max. PV Input Power128000W
Rated AC Input/Output Active Power80000W
Battery233kWh
Max. Operating PV Input Current36+36+36+36+36+36A
Max. Input Short-Circuit Current54+54+54+54+54+54A
Rated AC Input/Output Current121.3/115.9A
Max. AC Input/Output Current133.4/127.6A
Recommend Charge/Discharge Current100A
Maximum Charge/Discharge Current140A
Max. PV Input Voltage1000V
Start-up Voltage180V
MPPT Voltage Range150-850V
Rated PV Input Voltage650V
Battery System Nominal Voltage832V
Battery System Operating Voltage728 - 949V
Frequency50/60Hz
Power Factor0.8 leading to 0.8 lagging
* 1 pcs - Deye Inverter 80kW SKU12322
Max. Continuous AC Passthrough200A
Cells ChemistryLiFePO4
Size1600 x 1400 x 2105 mm
Warranty10 years
Order code12341
Release Date18.07.25
ManufacturerV-TAC
