CATALOG/HYBRID INVERTERS/SKU 12227
20kW Hybrid Solar Inverter Three Phase High Voltage 10yrs Warranty — view 1
20kW Hybrid Solar Inverter Three Phase High Voltage 10yrs Warranty — view 2
20kW Hybrid Solar Inverter Three Phase High Voltage 10yrs Warranty — view 3
20kW Hybrid Solar Inverter Three Phase High Voltage 10yrs Warranty — view 4

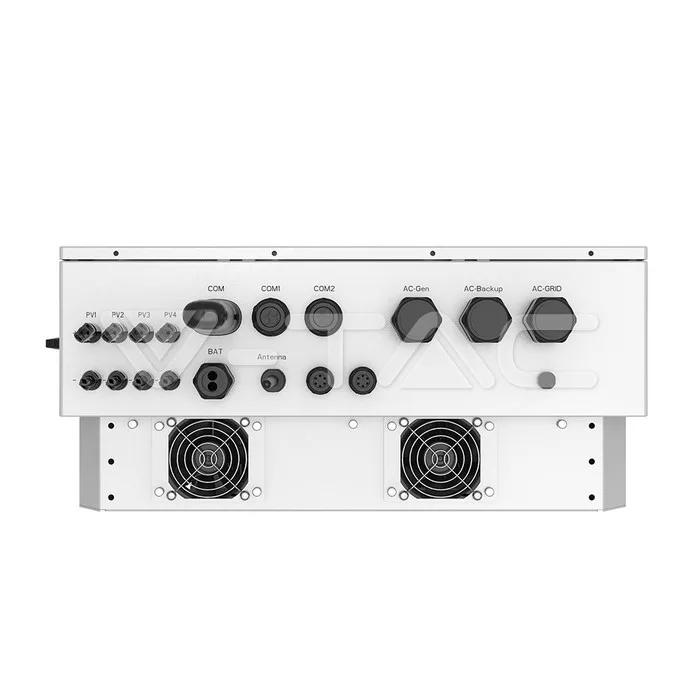

20kW Hybrid Solar Inverter Three Phase High Voltage 10yrs Warranty — view 5

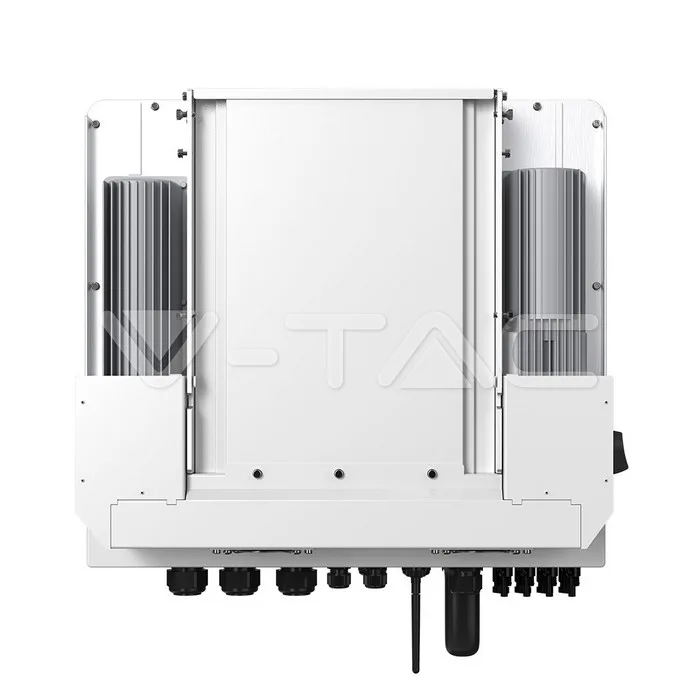

20kW Hybrid Solar Inverter Three Phase High Voltage 10yrs Warranty — view 6
V-TAC · S6-EH3P20K-H
● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

20kW Hybrid Solar Inverter Three Phase High Voltage 10yrs Warranty

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Consultar precio / disponibilidad
BAJO PEDIDO · SIN PRECIO DE TARIFA PUBLICADO
WARRANTY
Warranty 10 years
CERTIFICATION
EN 50549

Technical specification

Manual
Compatibility list
EN 50549
EMC License
LVD License
Service Manual
General Information
Electrical Data
Current Max. input current20A / 20A / 20A / 20A Max. short circuit current: 30A / 30A / 30A / 30A; Max. output current: 30.4A / 28.9A; Rated grid output current: 30.4A / 28.9A;
Wattage Max. usable PV input power32kW; Max. charge / discharge power: 20kW; Rated output power AC: 20kW
Voltage Max. PV Input DC Voltage1000V; MPPT Range: 200~850V; Rated PV Input DC Voltage: 600V; Start-up Voltage: 160V;
Frequency Rated grid frequency50 Hz
Power Factor >0.99 (0.8 leading - 0.8 lagging)
Phase Three Phase
Capabilities
Working conditions `-25 ~ +60°C
IP Rating IP66
Dimensions
Size 599 x 546 x 243 mm
Product Data
Order code 12227
Product code S6-EH3P20K-H
Items per pack 1
Item Weight 31.7 kg
Additional
Release Date 31.10.2024
Warranty 10 years
Brand SOLIS
