CATALOG/HYBRID INVERTERS/SKU 12225
12kW Hybrid Solar Inverter Three Phase High Voltage 10yrs Warranty — view 1
12kW Hybrid Solar Inverter Three Phase High Voltage 10yrs Warranty — view 2
12kW Hybrid Solar Inverter Three Phase High Voltage 10yrs Warranty — view 3
12kW Hybrid Solar Inverter Three Phase High Voltage 10yrs Warranty — view 4

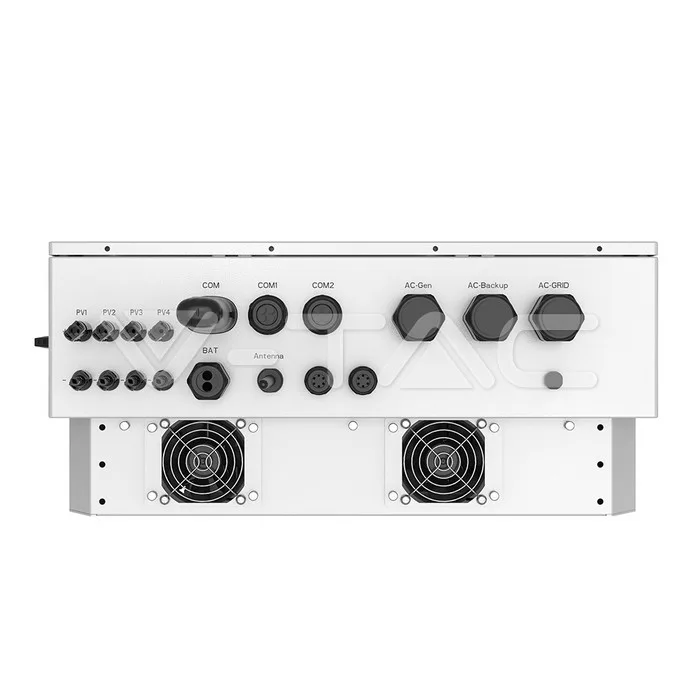

12kW Hybrid Solar Inverter Three Phase High Voltage 10yrs Warranty — view 5

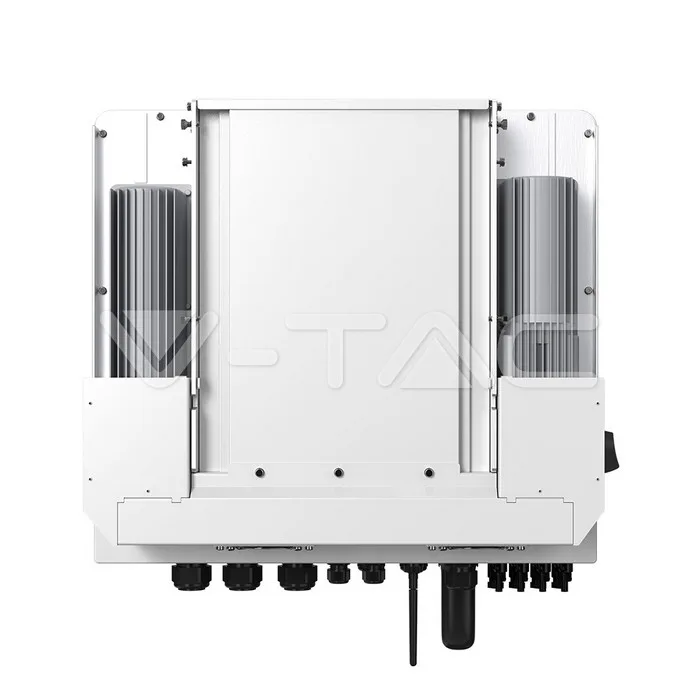

12kW Hybrid Solar Inverter Three Phase High Voltage 10yrs Warranty — view 6
V-TAC · S6-EH3P12K-H
● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

12kW Hybrid Solar Inverter Three Phase High Voltage 10yrs Warranty

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Consultar precio / disponibilidad
BAJO PEDIDO · SIN PRECIO DE TARIFA PUBLICADO
WARRANTY
Warranty 10 years
CERTIFICATION
EN 50549

Technical specification

Manual
Compatibility list
EN 50549
EMC License
LVD License
Service Manual
General Information
Electrical Data
Current Max. input current20A / 20A / 20A / 20A Max. short circuit current: 30A / 30A / 30A / 30A; Max. output current: 18.2A / 17.3A; Rated grid output current: 18.2A / 17.3A;
Wattage Max. usable PV input power19.2kW; Max. charge / discharge power: 12kW; Rated output power AC: 12kW
Voltage Max. PV Input DC Voltage1000V; MPPT Range: 200~850V; Rated PV Input DC Voltage: 600V; Start-up Voltage: 160V;
Frequency Rated grid frequency50 Hz
Power Factor >0.99 (0.8 leading - 0.8 lagging)
Phase Three Phase
Capabilities
Working conditions `-25 ~ +60°C
IP Rating IP66
Dimensions
Size 599 x 546 x 243 mm
Product Data
Order code 12225
Product code S6-EH3P12K-H
Items per pack 1
Item Weight 31 kg
Additional
Release Date 31.10.2024
Warranty 10 years
Brand SOLIS

Documents

Builds a kit with

FROM THE V-TAC COMPATIBILITY MATRIX
410W Mono Solar Panel 1722x1134x30mm Order Only Pallet TIER 1
SKU 11517 · PANEL

410W Mono Solar Panel 1722x1134x30mm Order Only Pallet TIER 1

from €52
5.12kWh 51.2V LiFePO4 Rack Battery CEI-021
SKU 11377 · BATTERY

5.12kWh 51.2V LiFePO4 Rack Battery CEI-021

from €862
550W Mono Solar Panel 2279x1134x35mm Order Only Pallet TIER 1
SKU 11831 · PANEL

550W Mono Solar Panel 2279x1134x35mm Order Only Pallet TIER 1

from €69
