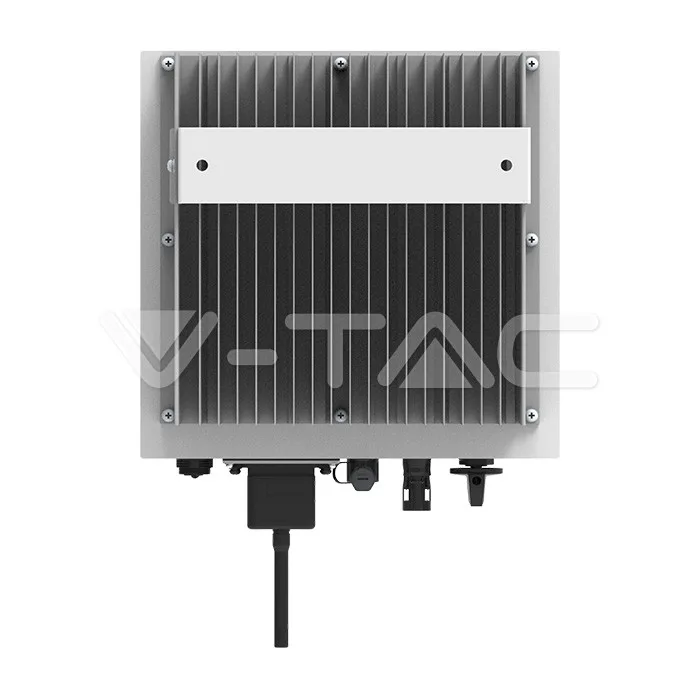

2kW On Grid Solar Inverter Single Phase — view 3

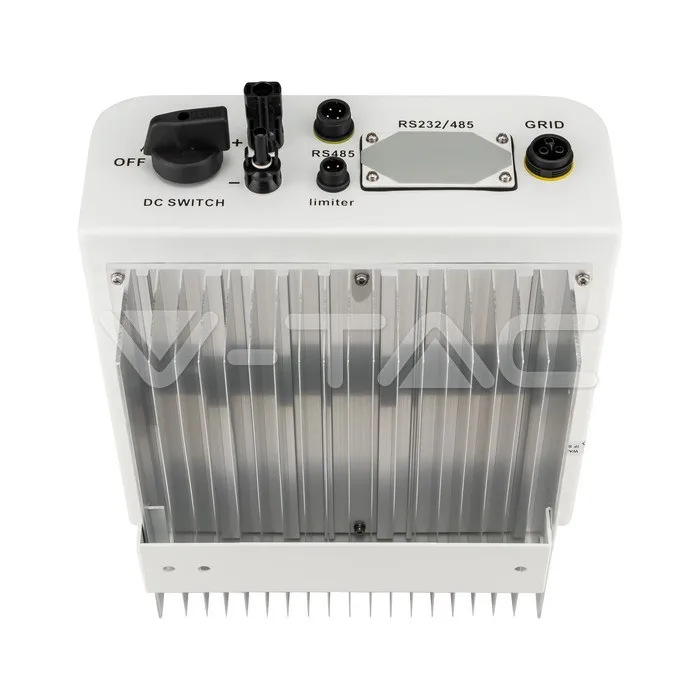

2kW On Grid Solar Inverter Single Phase — view 4

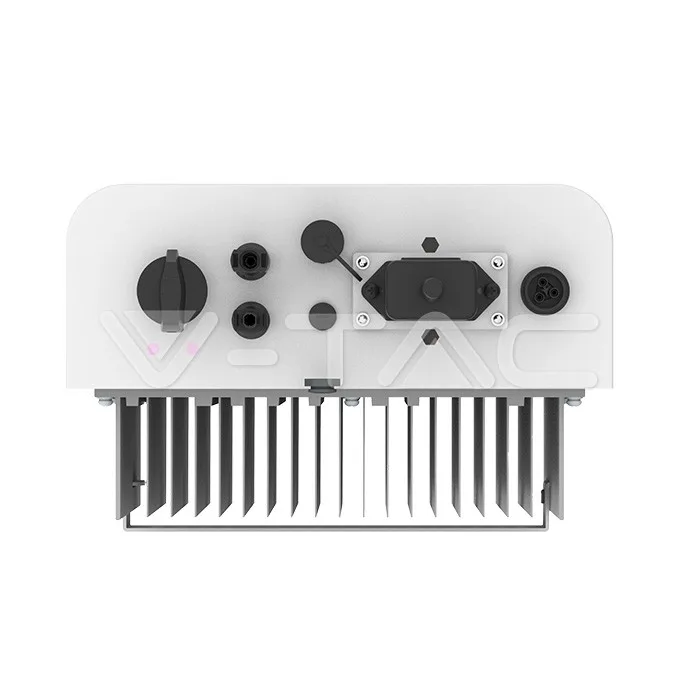

2kW On Grid Solar Inverter Single Phase — view 5

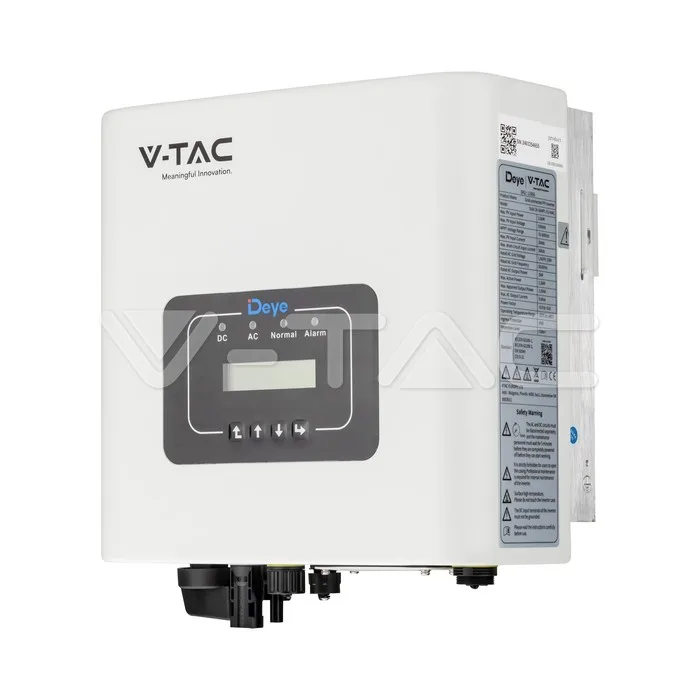

2kW On Grid Solar Inverter Single Phase — view 6
V-TAC · SUN-2K-G04P1-EU-AM1
● STOCK LIMITADO · ALMACÉN ENTREGA

2kW On Grid Solar Inverter Single Phase

2kW On Grid Solar Inverter Single Phase with IP65 protection and an operating range of -25 to +65℃, >45℃ Derating. 10 years; certification on file: Declaration of Conformity, EMC License and LVD License.

desde€259IVA EXCL. · PRECIO DE TARIFA
NivelTu precioCondiciones
Trade€259Card · PayPal · Klarna · Apple Pay
Pro€246Card · PayPal · Klarna · Apple Pay
Master€233Card · PayPal · Klarna · Apple Pay
Abre una cuenta para pedir
GARANTÍA DEL FABRICANTE
10 years
Se aplican las condiciones propias del fabricante. Nosotros tramitamos la reclamación — consulta las condiciones de venta.
CERTIFICACIÓN · 3
Declaration of ConformityEMC LicenseLVD License

Especificaciones técnicas

ELECTRICAL DATA12 items
Max. PV Input Power2.6kW
Rated AC Output Active Power2kW
Max. Operating PV Input Current20A
Max. Input Short Circuit Current30A
Max. PV Input Voltage550V
MPPT Voltage Range70-500V
Rated PV Input Voltage360V
Start-Up Voltage80V
Rated Output Voltage/Range220/230 0.85Un-1.1Un
Rated Output Grid Frequency/Range(Hz)50/45-55, 60/55-65
Power Factor0.8 leading to 0.8 lagging
PhaseSingle Phase
PHYSICAL DATA3 items
Working conditions-25 to +65℃, >45℃ Derating
IP RatingIP65
Size280 x 310 x 184 (Excluding Connectors and Brackets)
CERTIFICATIONS & WARRANTY1 item
Warranty10 years
PACKAGING2 items
Item Weight6.35 kg
Items per box1
PRODUCT DATA4 items
Order code11956
Product codeSUN-2K-G04P1-EU-AM1
Release Date15.06.2024
BrandDeye
