CATALOG/HYBRID INVERTERS/SKU 11819

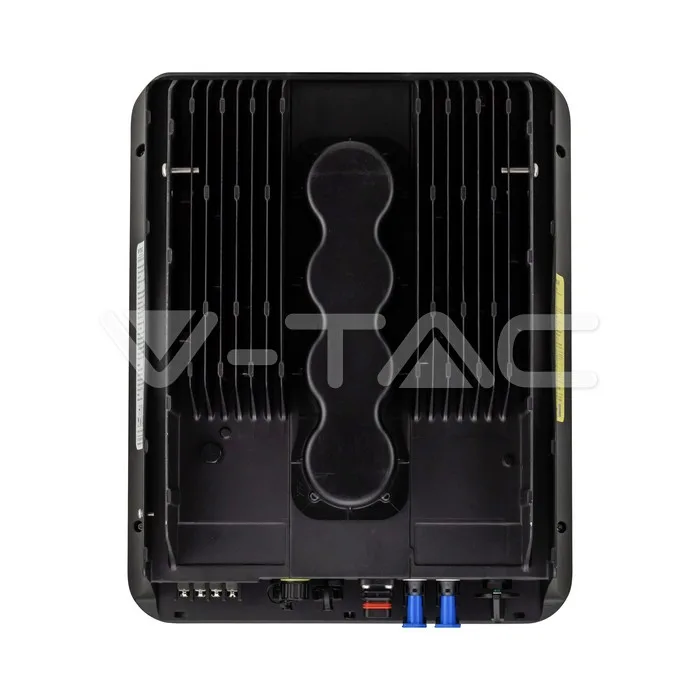

5kW On/Off Grid Hybrid Solar Inverter Single Phase CT , Smart Meter & Accessories — view 1
5kW On/Off Grid Hybrid Solar Inverter Single Phase CT , Smart Meter & Accessories — view 2
5kW On/Off Grid Hybrid Solar Inverter Single Phase CT , Smart Meter & Accessories — view 3
V-TAC · VT-6607105
● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

5kW On/Off Grid Hybrid Solar Inverter Single Phase CT , Smart Meter & Accessories

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Consultar precio / disponibilidad
BAJO PEDIDO · SIN PRECIO DE TARIFA PUBLICADO
WARRANTY
Warranty 10 years
CERTIFICATION
EN 50549 |

Technical specification

Manual
EN 50549 |
CEI 0-21 | | | | | |
EMC License
LVD License
LVD Report
General Information
Electrical Data
Current Max. PV Input Current18.5 x 2A; Maximum short-circuit current: 26 x 2A; MPPT Tracker/Pv String Number: 2 / 2;
Wattage 5kW
Voltage PV Input Voltage550V; MPPT Range: 150~500V; Full Load DC Voltage Range: 360V; Start-up Voltage: 100V;
Frequency Output Frequency 50/60Hz
Power Factor 0.8 leading to 0.8 lagging
Phase Single Phase
Capabilities
Working conditions ` -25 +60℃
IP Rating IP65
Dimensions
Size 513 x 370 x 192 mm
Product Data
Order code 11819
Product code VT-6607105
Items per pack 1
Item Weight 19.6
Item Volume 0.06571
Items per box 1
Additional
Release Date 13.07.2023
Warranty 10 years
Brand AFORE

Documents

PDF11514-11819-6163981.02-COC-CEI-021.pdfV-TAC · datasheetPDF11514-EN-50549-Certification.pdfV-TAC · datasheetPDF11514-EN-50549-Test-Report.pdfV-TAC · datasheetPDF11819-EMC.pdfV-TAC · datasheetPDF11819-EN-50549-Certification.pdfV-TAC · datasheetPDF11819-EN-50549-Test-Report.pdfV-TAC · datasheetPDF5kW-SKU-11819-Hybrid-Solar-Inverter-Technical-Specs.pdfV-TAC · datasheetPDF6163981.02-COC(1).pdfV-TAC · datasheetPDF6190695.01-COC(1).pdfV-TAC · datasheetPDFANTAI-VTAC Dichiarazione-di-conformità -alla-Norma-CEI-0-21 (1).pdfV-TAC · datasheetPDFDICHIARAZIONE DI CONFORMITA ALLA NORMA CEI 0-21NFO (1).pdfV-TAC · datasheetPDFVESTWOOD-VTAC Dichiarazione-di-conformità -alla-Norma-CEI-0-21 (1).pdfV-TAC · datasheetPDF11514-11819-6163981.51-TRF_CEI 0-21.pdfV-TAC · externalPDF11819-instructions.pdfV-TAC · external
