CATALOG/HYBRID INVERTERS/SKU 11743
5kW On/Off Grid Hybrid Solar Inverter Three Phase 380VAC — view 1
5kW On/Off Grid Hybrid Solar Inverter Three Phase 380VAC — view 2
5kW On/Off Grid Hybrid Solar Inverter Three Phase 380VAC — view 3

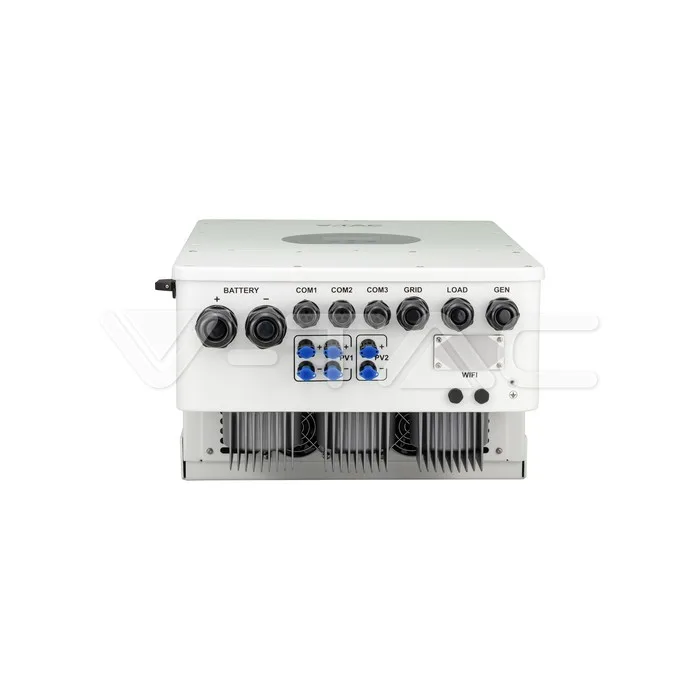

5kW On/Off Grid Hybrid Solar Inverter Three Phase 380VAC — view 4
V-TAC · SUN-5K-SG04LP3-EU
● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

5kW On/Off Grid Hybrid Solar Inverter Three Phase 380VAC

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Consultar precio / disponibilidad
BAJO PEDIDO · SIN PRECIO DE TARIFA PUBLICADO
WARRANTY
Warranty Conditions |
CERTIFICATION
IEC 61727 - IEC 62116

Technical specification

Manual
IEC 61727 - IEC 62116
EN 50549 |
CEI 0-21 | | | |
EMC License |
LVD License |
Warranty Conditions |
Declaration of Conformity
General Information
Electrical Data
Wattage Max. Input Power6500W; Rated AC Output Active Power: 5000W; Max. AC Output Active Power: 5500W;
Current PV Input Current13A+13A ; AC Output Rated Current: 7.6/7.2A; Max. AC Output Current: 8.4/8A; Max. Three-phase Unbalanced Output Current: 11.4/10.9A; Max Output short circuit current: 75A; Max. Continuous AC Passthrough: 45A;
Voltage Rated PV Input Voltage550 (160-800); MPPT Range: 200-650V; Full Load DC Voltage Range: 350-650V; Start-up Voltage: 160V;
Frequency Output Frequency 50/60Hz
Power Factor 0.8 leading to 0.8 lagging
Phase Three Phase
Capabilities
Working conditions -40~60℃ BJ2, >45℃ Derating
IP Rating IP65
Dimensions
Size Cabinet Size (WxHxD mm)422 × 702 × 281 Excluding Connectors and Brackets;
Product Data
Order code 11743
Product code SUN-5K-SG04LP3-EU
Item Weight 33.6 kg
Items per box 1
Additional
Release Date 19.05.2023
Warranty 10 years
Brand Deye

Documents

PDF11743-BL-DG21C0658D01-LVD.pdfV-TAC · datasheetPDF11743-BL-DG21C0658D02-LVD.pdfV-TAC · datasheetPDF11743-EMC-EN IEC 61000-6-1(2&3&4)&EN IEC 61000-3-2(3&11&12)_SUN-(5-12)K-SG04LP13-EU(AU)_V02.pdfV-TAC · datasheetPDF11743-EMC-IEC 61000-6-1(2&3&4)&IEC 61000-3-2(3&11&12)_SUN-(5-12)K-SG04LP13-EU(AU)_V02.pdfV-TAC · datasheetPDF11743-EN 50549-1_SUN-(5-12)K-SG04LP3-EU_Europe.pdfV-TAC · datasheetPDF11743-IEC 61727&IEC 62116&IEC 61683&IEC 60068_SUN-(6-12)K-SG04LP3-EU.pdfV-TAC · datasheetPDF11743-Ning_Sun-5-12K-RW-M6.1_GCC_CEI_021_ita_22-406-00.pdfV-TAC · datasheetPDF11743-Ning_Sun-5-12K-VT-12040_GCC_CEI_021_ita_23-029-00.pdfV-TAC · datasheetPDF11788-Ning_SUN-5 12KSG04LP3-EU-AI-W5.1-12P3-EU_UNBED_EN50549-1_2019_U23-0246.pdfV-TAC · datasheetPDFDC-SUN-12K-SG04LP3-EU-Declaration.pdfV-TAC · datasheetPDFDeye-SUN-Series-Hybrid-Inverter-10-Year-Limited-Warranty-for-Installation-in-Europe.pdfV-TAC · datasheetPDFNing_Sun-5-12K-VT-5139_GCC_CEI_021_ita_23-449-00.pdfV-TAC · datasheetPDFNing_Sun-5-12K_VE51280W_GCC_CEI_021_ita_24-003-00.pdfV-TAC · datasheetPDFV-TAC_Sun-5-12K_VT-48280_GCC_CEI_021_ita_25-201-00.pdfV-TAC · datasheetPDFWarranty-Inverters-Deye.pdfV-TAC · datasheetPDF11542-11543-11743-11788-instructions.pdfV-TAC · external
