CATÁLOGO/INVERSORES HÍBRIDOS/REF 11631
60kW On Grid Solar Inverter Three Phase — view 1

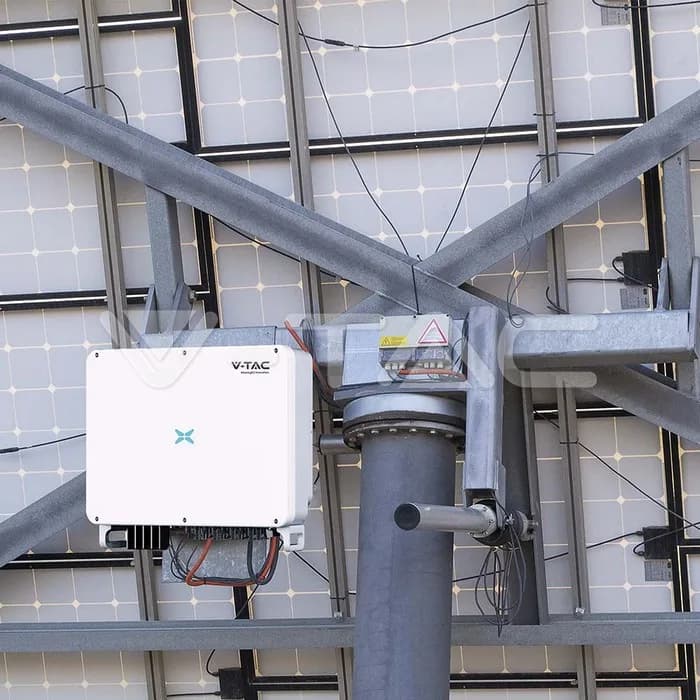

60kW On Grid Solar Inverter Three Phase — view 2
V-TAC · VT-61060
● STOCK LIMITADO · ALMACÉN ENTREGA

60kW On Grid Solar Inverter Three Phase

60kW On Grid Solar Inverter Three Phase with IP66 protection and an operating range of -30°C to +60°C. 10 years; certification on file: EMC License and LVD License.

desde€2,341IVA EXCL. · PRECIO DE TARIFA
NivelTu precioCondiciones
Trade€2,341Card · PayPal · Klarna · Apple Pay
Pro€2,224Card · PayPal · Klarna · Apple Pay
Master€2,107Card · PayPal · Klarna · Apple Pay
Abre una cuenta para pedir
GARANTÍA DEL FABRICANTE
10 years
Se aplican las condiciones propias del fabricante. Nosotros tramitamos la reclamación — consulta las condiciones de venta.
CERTIFICACIÓN · 2
EMC LicenseLVD License

Especificaciones técnicas

ELECTRICAL DATA14 items
Max. Current per MPPT39A / 26А / 39А / 26А
Max. Short Circuit Current per MPPT48A / 32А / 48А / 32А Max. Output Current (AC): 79.7A
Max. Input Power80kW
Rated Output Power50kW
Max. Output Power55kVA
Max. Input Voltage1100V
Start Voltage250V
Rated Input Voltage600V
Full-load MPP Voltage Range520V ~ 850V
MPPT Voltage Range200V ~ 1000V
Rated Grid Voltage230Vac /400Vac
FrequencyRated Grid Frequency 50Hz / 60Hz
Power Factor>0.99 (0.8 lagging~0.8 leading)
PhaseThree Phase
PHYSICAL DATA3 items
Working conditions-30°C to +60°C
IP RatingIP66
Size650 x 450 x 260 mm
CERTIFICATIONS & WARRANTY1 item
Warranty10 years
PACKAGING1 item
Item Weight50 kg
PRODUCT DATA4 items
Order code11631
Product codeVT-61060
Release Date02.05.2023
BrandINVT
